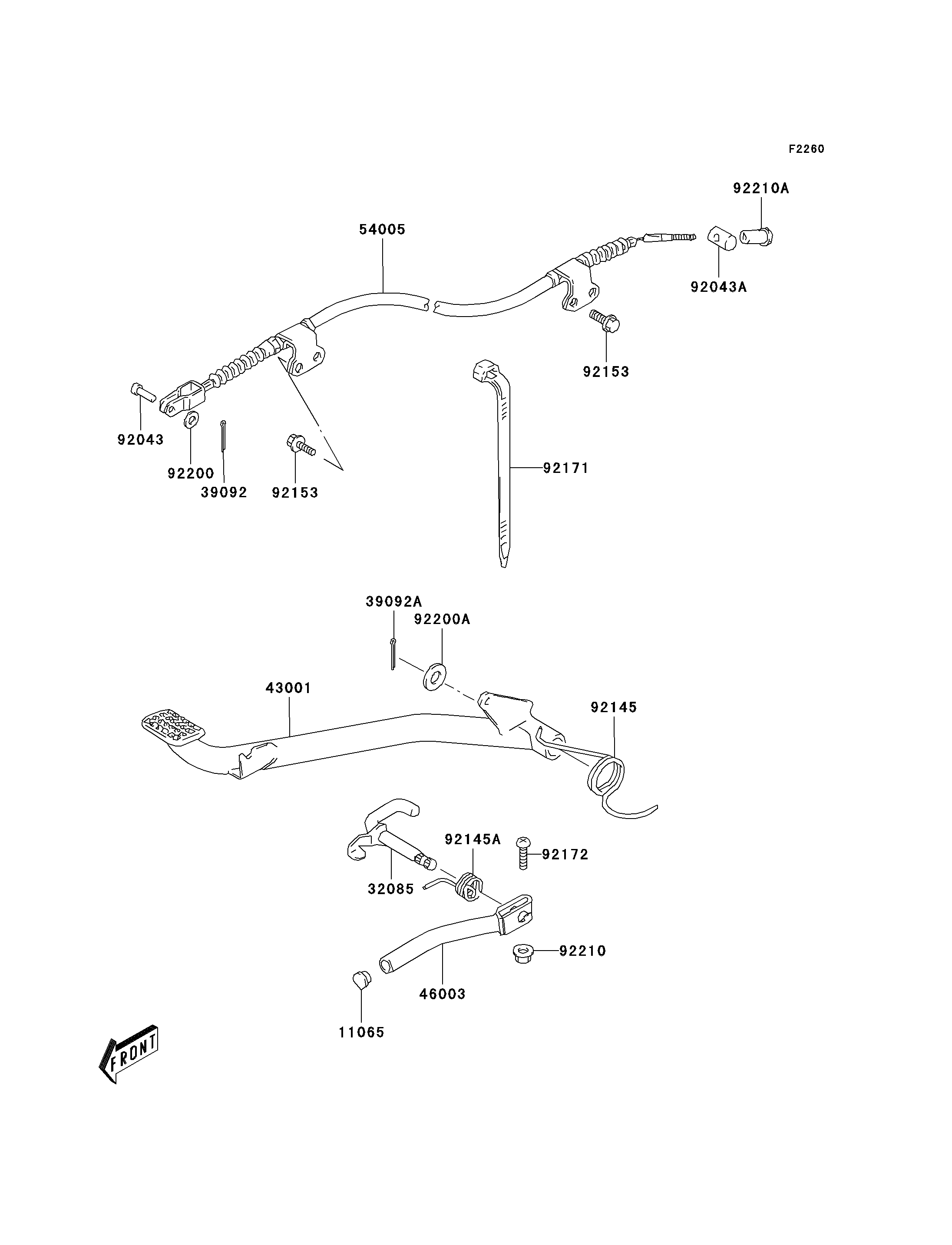

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
11065
32085
39092
39092A
43001
46003
54005
92043
92043A
92145
92145A
92153
92153
92171
92172
92200
92200A
92210
92210A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,STOPPER HANDLE | 11065 | 11065-S027 | 1 | ||
| STOPPER,BRAKE PEDAL | 32085 | 32085-S007 | 1 | ||
| PIN-HAIR,COTTER | 39092 | 39092-S005 | 1 | ||
| PIN-HAIR | 39092A | 39092-S007 | 1 | ||
| LEVER-BRAKE | 43001 | 43001-S003 | 1 | ||
| HANDLE,BRAKE PEDAL | 46003 | 46003-S005 | 1 | ||
| CABLE-BRAKE,RR | 54005 | 54005-S008 | 1 | ||
| PIN,REAR BRAKE CABLE | 92043 | 92043-S031 | 1 | ||
| PIN,REAR BRAKE CABLE | 92043A | 92043-S032 | 1 | ||
| SPRING,BRAKE PEDAL RETURN | 92145 | 92145-S078 | 1 | ||
| SPRING,BRAKE PEDAL STOPPER | 92145A | 92145-S079 | 1 | ||
| BOLT | 92153 | 92153-S012 | 4 | ||
| CLAMP,L=125 | 92171 | 92171-S014 | 1 | ||
| SCREW | 92172 | 92172-S117 | 1 | ||
| WASHER | 92200 | 92200-S003 | 1 | ||
| WASHER,BRAKE PEDAL | 92200A | 92200-S117 | 1 | ||
| NUT | 92210 | 92210-S006 | 1 | ||
| NUT,REAR BRAKE CABLE | 92210A | 92210-S085 | 1 |
