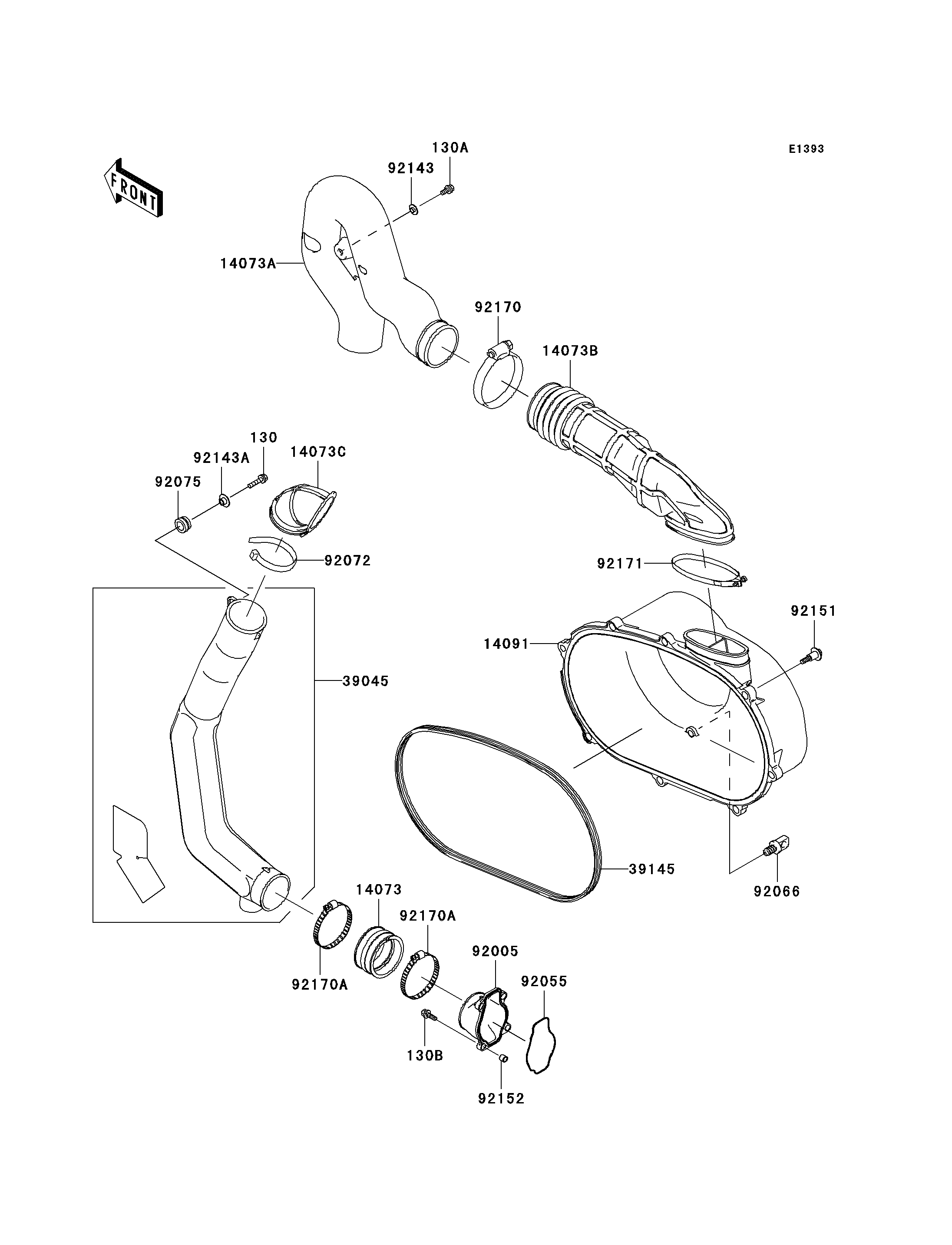

2005 KFX700 - Converter Cover/Drive Belt
130
130A
130B
14073
14073A
14073B
14073C
14091
39045
39145
92005
92055
92066
92072
92075
92143
92143A
92151
92152
92170
92170A
92170A
92171
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,6X25 | 130 | 130G0625 | 1 | ||
BOLT-FLANGED | 130A | 130J0612 | 1 | ||
BOLT-FLANGED | 130B | 130Z0620 | 4 | ||
DUCT,AIR FILTER JOINT | 14073 | 14073-1775 | 1 | ||
DUCT,EXHAUST | 14073A | 14073-1850 | 1 | ||
DUCT,EXHAUST JOINT | 14073B | 14073-1851 | 1 | ||
DUCT,SNORKEL TOP | 14073C | 14073-1853 | 1 | ||
COVER,BELT CONVERTER | 14091 | 14091-1535 | 1 | ||
DUCT-ASSY,SNORKEL | 39045 | 39045-1072 | 1 | ||
TRIM-SEAL | 39145 | 39145-1135 | 1 | ||
FITTING | 92005 | 92005-1387 | 1 | ||
RING-O | 92055 | 92055-1630 | 1 | ||
PLUG,DRAIN,11X19 | 92066 | 92066-1580 | 1 | ||
BAND,L=365 | 92072 | 92072-1197 | 1 | ||
DAMPER,RUBBER | 92075 | 92075-1123 | 1 | ||
COLLAR | 92143 | 92143-1087 | 1 | ||
COLLAR | 92143A | 92143-1353 | 1 | ||
BOLT | 92151 | 92151-1686 | 8 | ||
COLLAR | 92152 | 92152-1332 | 4 | ||
CLAMP | 92170 | 92170-1763 | 1 | ||
CLAMP | 92170A | 92170-1764 | 2 | ||
CLAMP | 92171 | 92171-1554 | 1 |
