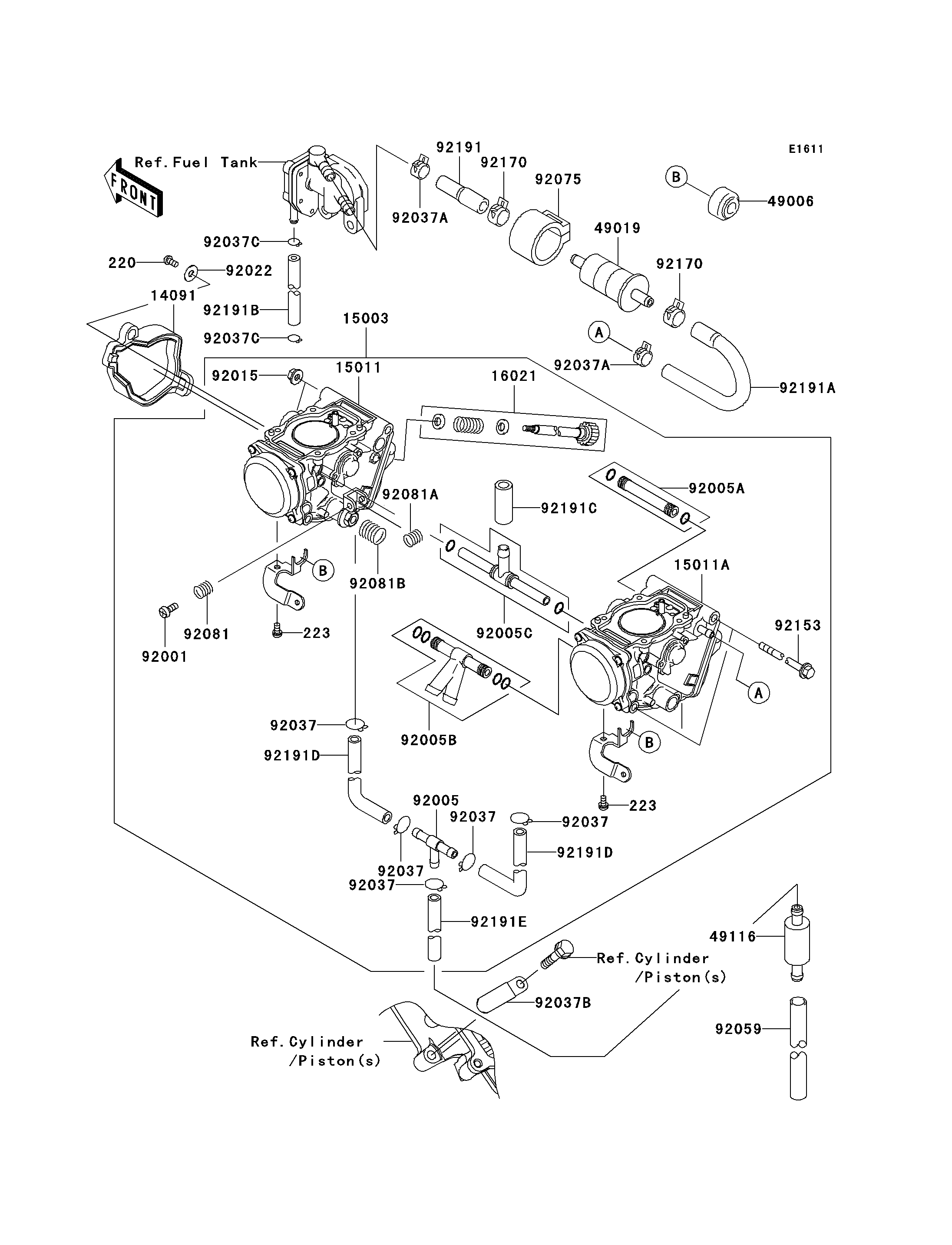

Parts Diagrams |
220
223
223
14091
15003
15011
15011A
16021
49006
49019
49116
92001
92005
92005A
92005B
92005C
92015
92022
92037
92037
92037
92037
92037
92037A
92037A
92037B
92037C
92037C
92059
92075
92081
92081A
92081B
92153
92170
92170
92191
92191A
92191B
92191C
92191D
92191D
92191E
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
SCREW-PAN-CROS | 220 | 220B0408 | 1 | ||
SCREW-PAN-WS-CROS | 223 | 223D0408 | 2 | ||
COVER,THROTTLE CABLE | 14091 | 14091-1196 | 1 | ||
CARBURETOR-ASSY | 15003 | 15003-0019 | 1 | ||
CARBURETOR,FR | 15011 | 15011-0015 | 1 | ||
CARBURETOR,RR | 15011A | 15011-0016 | 1 | ||
SCREW-THROTTLE STOP | 16021 | 16021-1223 | 1 | ||
BOOT,STARTER CABLE | 49006 | 49006-1353 | 2 | ||
FILTER-FUEL | 49019 | 49019-1055 | 1 | ||
VALVE-ASSY | 49116 | 49116-1126 | 1 | ||
BOLT,THROTTLE ADJUST | 92001 | 92001-1998 | 1 | ||
FITTING,FUEL,T-TYPE | 92005 | 92005-1112 | 1 | ||
FITTING | 92005A | 92005-1375 | 1 | ||
FITTING | 92005B | 92005-1376 | 1 | ||
FITTING | 92005C | 92005-1385 | 1 | ||
NUT,FLANGED,5MM | 92015 | 92015-1259 | 2 | ||
WASHER,5.2X13X1 | 92022 | 92022-1380 | 1 | ||
CLAMP,TUBE | 92037 | 92037-1201 | 5 | ||
CLAMP,TUBE | 92037A | 92037-1505 | 2 | ||
CLAMP,L=45 | 92037B | 92037-1539 | 1 | ||
CLAMP | 92037C | 92037-1610 | 2 | ||
TUBE,7X10X100 | 92059 | 92059-1736 | 1 | ||
DAMPER,FUEL FILTER | 92075 | 92075-1853 | 1 | ||
SPRING,THROTTLE ADJUST UPP | 92081 | 92081-1620 | 1 | ||
SPRING,THROTTLE ADJUST LWR | 92081A | 92081-1621 | 1 | ||
SPRING,THROTTLE ADJUST CNT | 92081B | 92081-1622 | 1 | ||
BOLT,5X143 | 92153 | 92153-1068 | 2 | ||
CLAMP | 92170 | 92170-1492 | 2 | ||
TUBE,TAP-FUEL FILTER | 92191 | 92191-0017 | 1 | ||
TUBE,FUEL FILTER-CARBURETOR | 92191A | 92191-0018 | 1 | ||
TUBE | 92191B | 92191-1251 | 1 | ||
TUBE,7X11X25 | 92191C | 92191-1672 | 1 | ||
TUBE,4.5X8X65 | 92191D | 92191-1673 | 2 | ||
TUBE,4.5X8X420 | 92191E | 92191-1674 | 1 |
