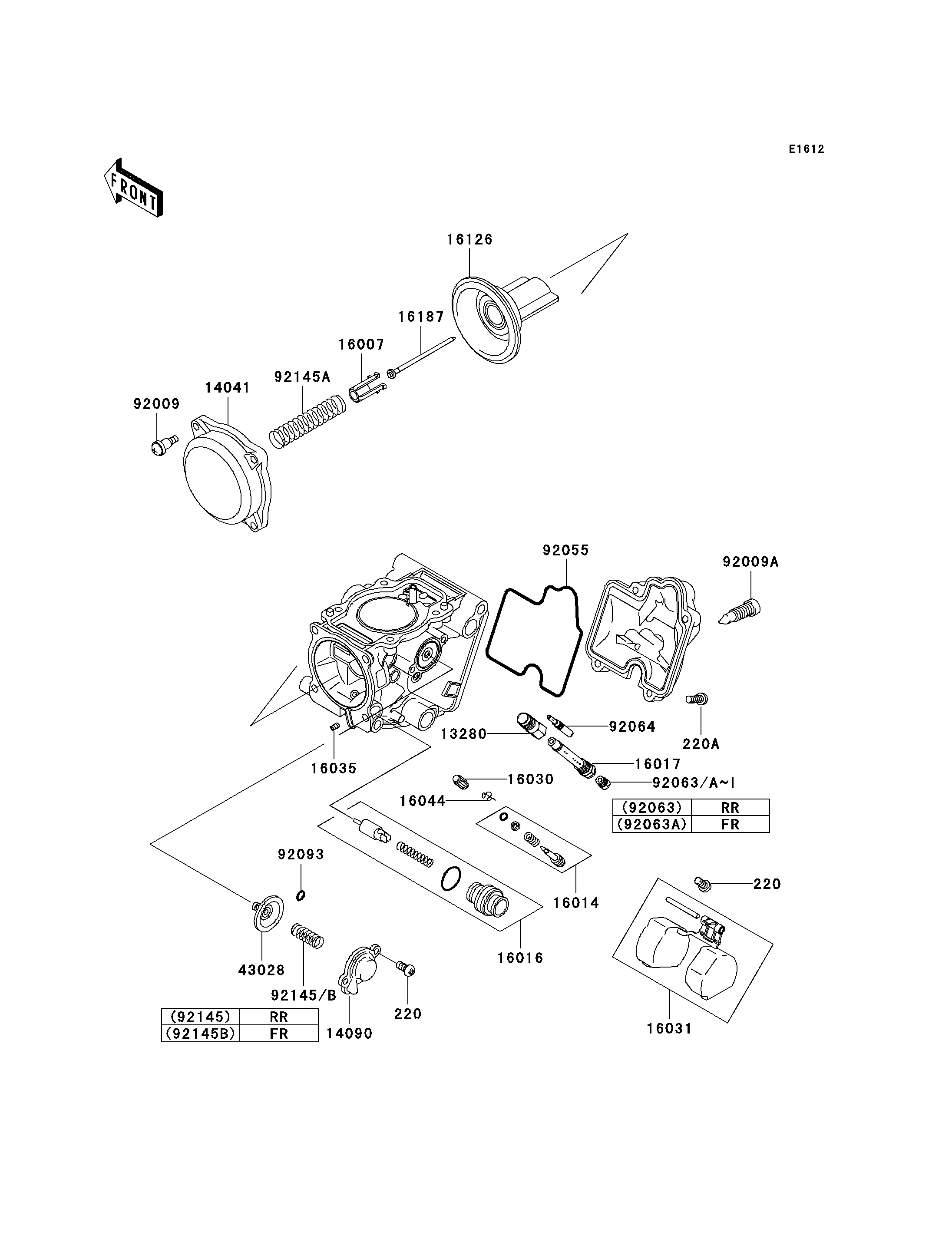

Parts Diagrams
OWNER CENTER |
![customer service agent speaking with a customer](/Content/Images/owner-header-mobile.jpg)
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
220
220
220
220
13280
13280
14041
14041
14090
14090
16007
16007
16014
16014
16016
16016
16017
16017
16030
16030
16031
16031
16035
16035
16044
16044
16126
16126
16187
16187
43028
43028
92009
92009
92009A
92009A
92055
92055
92063
92063
92063A
92063A
92063B
92063B
92063C
92063C
92063D
92063D
92063E
92063E
92063F
92063F
92063G
92063G
92063H
92063H
92063I
92063I
92064
92064
92093
92093
92145
92145
92145A
92145A
92145B
92145B
220A
220A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
SCREW-PAN-CROS | 220 | 220D0408 | 6 | ||
HOLDER,JET | 13280 | 13280-1096 | 2 | ||
CAP-CHAMBER,MIXING | 14041 | 14041-1090 | 2 | ||
COVER,AIR CUT VALVE | 14090 | 14090-1984 | 2 | ||
SEAT-SPRING,THROTTLE VALVE | 16007 | 16007-1120 | 2 | ||
SCREW-PILOT AIR | 16014 | 16014-1105 | 2 | ||
PLUNGER | 16016 | 16016-1117 | 2 | ||
JET-NEEDLE | 16017 | 16017-1441 | 2 | ||
VALVE-FLOAT | 16030 | 16030-1007 | 2 | ||
FLOAT | 16031 | 16031-1097 | 2 | ||
JET-AIR,LEAK | 16035 | 16035-1055 | 2 | ||
CLAMP,FLOAT VALVE | 16044 | 16044-007 | 2 | ||
VALVE,VACUUM | 16126 | 16126-1226 | 2 | ||
NEEDLE-JET,NBZH | 16187 | 16187-0021 | 2 | ||
DIAPHRAGM,AIR CUT VALVE | 43028 | 43028-1085 | 2 | ||
SCREW,4X4.4 | 92009 | 92009-1549 | 8 | ||
SCREW,DRAIN,M6X0.75 | 92009A | 92009-1551 | 2 | ||
RING-O,FLOAT CHAMBER | 92055 | 92055-1589 | 2 | ||
JET-MAIN,#140 | 92063 | 92063-1013 | 1 | ||
JET-MAIN,#135 | 92063A | 92063-1014 | 1 | ||
JET-MAIN,#138 | 92063B | 92063-1015 | AR | (OPTION) | |
JET-MAIN,#142 | 92063C | 92063-1016 | AR | (OPTION) | |
JET-MAIN,#145 | 92063D | 92063-1017 | AR | (OPTION) | |
JET-MAIN,#125 | 92063E | 92063-1069 | AR | (OPTION) | |
JET-MAIN,#120 | 92063F | 92063-1072 | AR | (OPTION) | |
JET-MAIN,#128 | 92063G | 92063-1074 | AR | (OPTION) | |
JET-MAIN,#130 | 92063H | 92063-1075 | AR | (OPTION) | |
JET-MAIN,#132 | 92063I | 92063-1076 | AR | (OPTION) | |
JET-PILOT,#40 | 92064 | 92064-0005 | 2 | ||
SEAL,"U"RING | 92093 | 92093-1046 | 2 | ||
SPRING,AIR CUT VALVE | 92145 | 92145-0097 | 1 | ||
SPRING,VACUUM VALVE | 92145A | 92145-1227 | 2 | ||
SPRING,AIR CUT VALVE | 92145B | 92145-1450 | 1 | ||
SCREW-PAN-CROS | 220A | 220D0414 | 8 |
