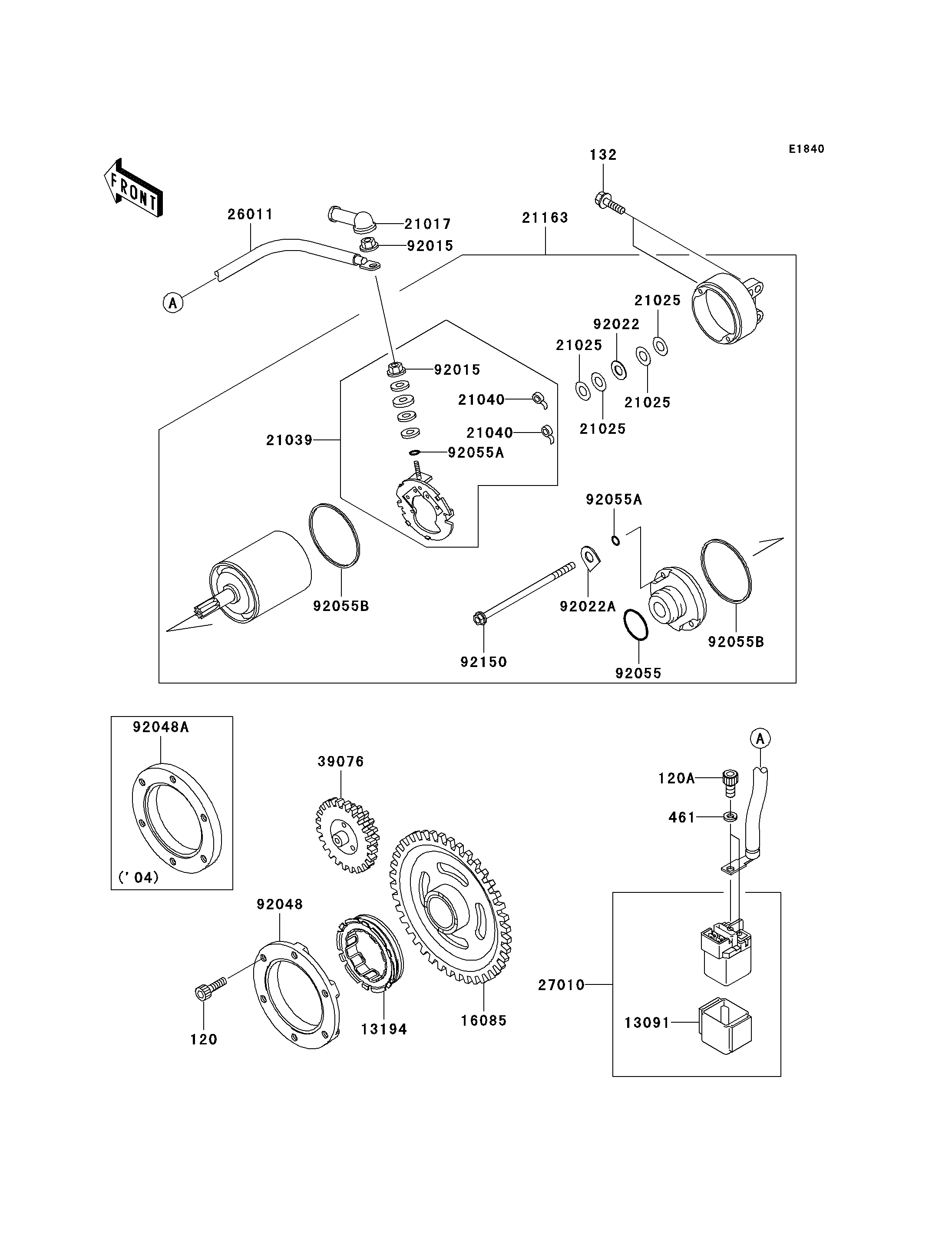

2005 KFX700 - Starter Motor

DOWNLOAD PDF
SELECT A NEW PART
120
120A
132
461
13091
13194
16085
21017
21025
21025
21025
21025
21039
21040
21040
21163
26011
27010
39076
92015
92015
92022
92022A
92048
92055
92055A
92055A
92055B
92055B
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET 120 120P0816 6
BOLT-SOCKET 120A 120S0510 2
BOLT-FLANGED-SMALL 132 132Y0630 2
WASHER-SPRING,5MM,BLACK 461 461K0500 2
HOLDER 13091 13091-1992 1
CLUTCH-ONEWAY 13194 13194-1094 1
GEAR,STARTER 16085 16085-1238 1
GROMMET,STARTER TERMINAL 21017 21017-017 1
WASHER,9.1X18X0.2 21025 21025-011 4
BRUSH,CARBON 21039 21039-1063 1
SPRING-BRUSH 21040 21040-1057 2
STARTER-ELECTRIC 21163 21163-1320 1
WIRE-LEAD 26011 26011-1845 1
SWITCH,MAGNETIC 27010 27010-1376 1
LIMITER,STARTER 39076 39076-1076 1
NUT,STARTER MOTOR 92015 92015-1476 2
WASHER,9.1X18X0.8 92022 92022-1132 1
WASHER,LOCK,T=2.0 92022A 92022-1458 2
RACE,ONE WAY CLUTCH 92048 92048-0002 1
RING-O 92055 92055-1276 1
RING-O,4.5X2.0 92055A 92055-1370 3
RING-O,STARTER MOTOR 92055B 92055-1381 2
BOLT 92150 92150-1243 2
