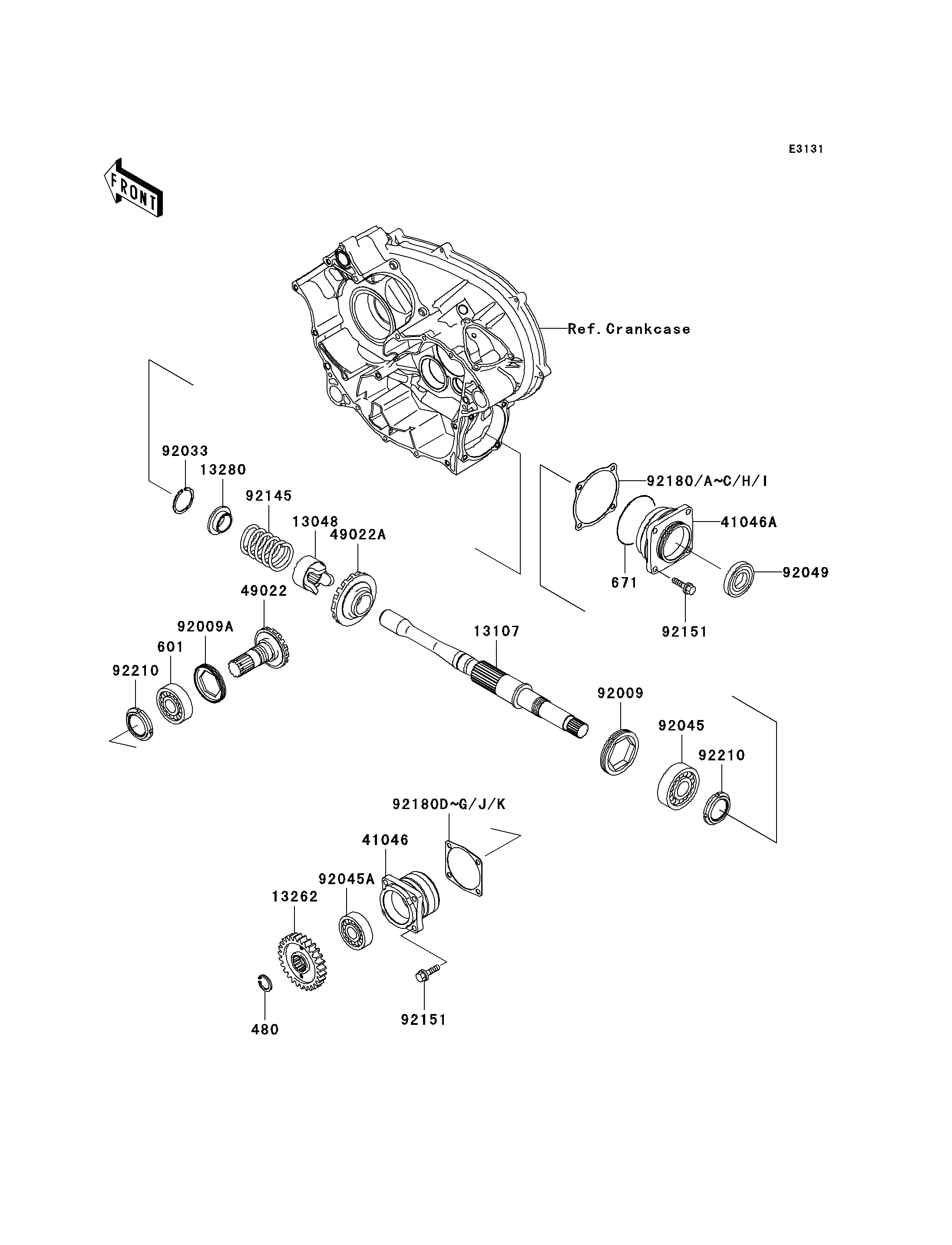

Parts Diagrams |
480
601
671
13048
13107
13262
13280
41046
41046A
49022
49022A
92009
92009A
92033
92045
92045A
92049
92145
92151
92151
92180
92180A
92180B
92180C
92180D
92180E
92180F
92180G
92180H
92180I
92180J
92180K
92210
92210
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CIRCLIP-TYPE-C,28MM | 480 | 480J2800 | 1 | ||
BEARING-BALL,#6206C3 | 601 | 601B6206 | 1 | ||
O RING | 671 | 671D2585 | 1 | ||
CAM-DAMPER | 13048 | 13048-1088 | 1 | ||
SHAFT | 13107 | 13107-1516 | 1 | ||
GEAR,OUTPUT DRIVEN,27T | 13262 | 13262-0014 | 1 | ||
HOLDER | 13280 | 13280-1169 | 1 | ||
HOUSING-BEARING | 41046 | 41046-1101 | 1 | ||
HOUSING-BEARING | 41046A | 41046-1102 | 1 | ||
GEAR-BEVEL,DRIVE,12T | 49022 | 49022-1192 | 1 | ||
GEAR-BEVEL,DRIVNE,20T | 49022A | 49022-1193 | 1 | ||
SCREW | 92009 | 92009-1667 | 1 | ||
SCREW,64MM | 92009A | 92009-1914 | 1 | ||
RING-SNAP | 92033 | 92033-1320 | 1 | ||
BEARING-BALL,6306SH2 | 92045 | 92045-1190 | 1 | ||
BEARING-BALL,62/28 | 92045A | 92045-1207 | 1 | ||
SEAL-OIL | 92049 | 92049-1529 | 1 | ||
SPRING | 92145 | 92145-1298 | 1 | ||
BOLT | 92151 | 92151-1688 | 8 | ||
SHIM,DRIVEN,T=0.15 | 92180 | 92180-1307 | 1 | ||
SHIM,DRIVEN,T=0.20 | 92180A | 92180-1308 | 1 | ||
SHIM,DRIVEN,T=0.50 | 92180B | 92180-1309 | 1 | ||
SHIM,DRIVEN,T=0.80 | 92180C | 92180-1310 | 1 | ||
SHIM,DRIVE,T=0.15 | 92180D | 92180-1311 | 1 | ||
SHIM,DRIVE,T=0.20 | 92180E | 92180-1312 | 1 | ||
SHIM,DRIVE,T=0.50 | 92180F | 92180-1313 | 1 | ||
SHIM,DRIVE,T=0.80 | 92180G | 92180-1314 | 1 | ||
SHIM,DRIVEN,T=1.00 | 92180H | 92180-1349 | 1 | ||
SHIM,DRIVEN,T=1.20 | 92180I | 92180-1350 | 1 | ||
SHIM,DRIVE,T=1.00 | 92180J | 92180-1351 | 1 | ||
SHIM,DRIVE,T=1.20 | 92180K | 92180-1352 | 1 | ||
NUT,30MM | 92210 | 92210-1294 | 2 |
