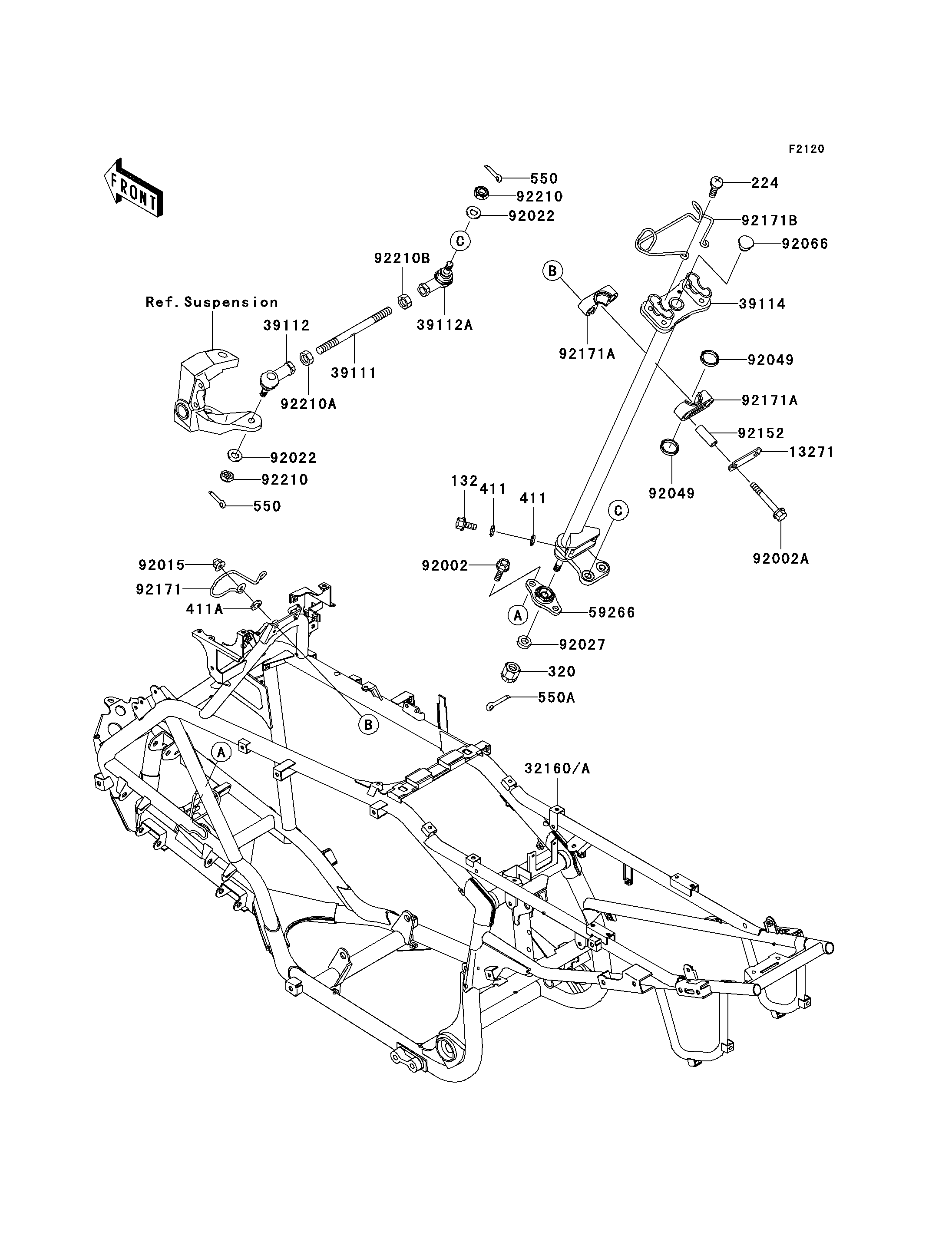

Parts Diagrams |
132
224
320
411
411
411A
550
550
550A
13271
32160
39111
39112
39112A
39114
59266
92002
92002A
92015
92022
92022
92027
92049
92049
92066
92152
92171
92171A
92171A
92171B
92210
92210
92210A
92210B
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED-SMALL | 132 | 132J0616 | 2 | ||
SCREW-PAN-WP-CROS | 224 | 224C0614 | 2 | ||
NUT-CASTLE | 320 | 320H1000 | 1 | ||
WASHER-PLAIN,6MM | 411 | 411B0600 | 4 | ||
WASHER-PLAIN,8MM,BLACK | 411A | 411F0800 | 2 | ||
PIN-COTTER,2.0X15 | 550 | 550D2015 | 4 | ||
PIN-COTTER,2.5X18 | 550A | 550D2518 | 1 | ||
PLATE | 13271 | 13271-1887 | 1 | ||
FRAME-COMP,G.GRAY | 32160 | 32160-0028-HN | 1 | ||
ROD-TIE | 39111 | 39111-1180 | 2 | ||
RODEND-TIE,RIGHT HANDED | 39112 | 39112-1087 | 2 | ||
RODEND-TIE,LEFT HANDED | 39112A | 39112-1088 | 2 | ||
SHAFT-COMP-STRG | 39114 | 39114-0001 | 1 | ||
JOINT-BALL | 59266 | 59266-0001 | 1 | ||
BOLT,8X20 | 92002 | 92002-1250 | 2 | ||
BOLT,FLANGED,8X70 | 92002A | 92002-1349 | 2 | ||
NUT,CAP,8MM,BLACK | 92015 | 92015-1174 | 2 | ||
WASHER,10.2X20X1.5 | 92022 | 92022-3742 | 4 | ||
COLLAR,10X21.3X7 | 92027 | 92027-1817 | 1 | ||
SEAL-OIL,SR25.4X31X3.8 | 92049 | 92049-1611 | 2 | ||
PLUG | 92066 | 92066-1220 | 1 | ||
COLLAR,9.1X13.9X39.2 | 92152 | 92152-1456 | 2 | ||
CLAMP,CABLE | 92171 | 92171-0066 | 1 | ||
CLAMP,STEERING SHAFT | 92171A | 92171-1542 | 2 | ||
CLAMP,CABLE&HARNESS | 92171B | 92171-1543 | 1 | ||
NUT,LOCK,10MM | 92210 | 92210-1184 | 4 | ||
NUT,RIGHT HANDED | 92210A | 92210-1385 | 2 | ||
NUT,LEFT HANDED | 92210B | 92210-1386 | 2 |
