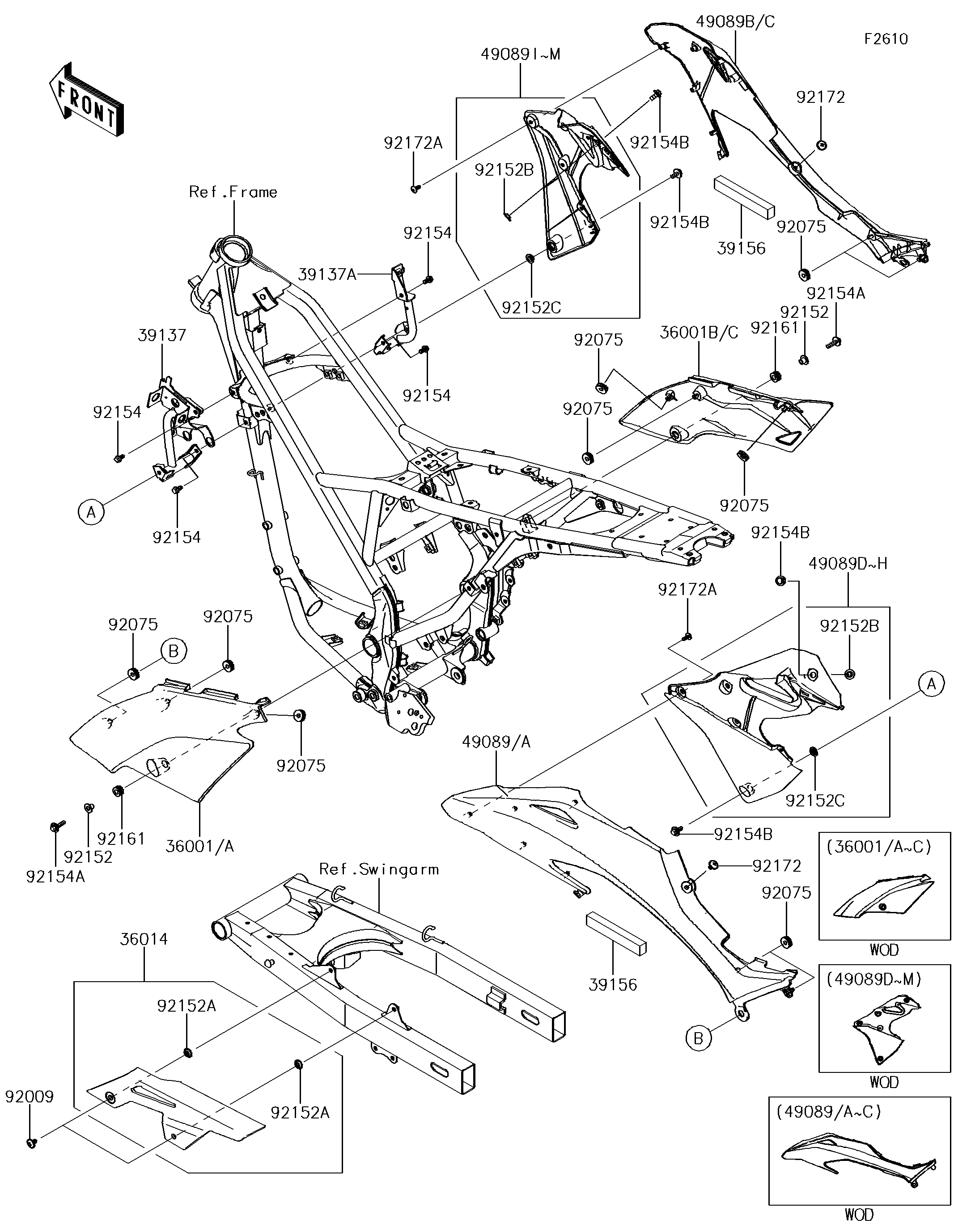

2017 KLX150BF - Side Covers/Chain Cover

DOWNLOAD PDF
SELECT A NEW PART
36001A
36001C
36014
39137
39137A
39156
39156
49089A
49089C
49089F
49089H
49089K
49089M
92009
92075
92075
92075
92075
92075
92075
92075
92075
92152
92152
92152A
92152A
92152B
92152B
92152C
92152C
92154
92154
92154
92154
92154A
92154A
92154B
92154B
92154B
92154B
92161
92161
92172
92172
92172A
92172A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-SIDE,LH,EBONY 36001A 36001-0625-6C 1
COVER-SIDE,RH,EBONY 36001C 36001-0626-6C 1
CASE-CHAIN 36014 36014-0560 1
STAY-COMP,LH,P.SILVER 39137 39137-0620-458 1
STAY-COMP,RH,P.SILVER 39137A 39137-0663-458 1
PAD 39156 39156-0813 2
SHROUD-ENGINE,LH,UPP,EBONY 49089A 49089-0868-6C 1
SHROUD-ENGINE,RH,UPP,EBONY 49089C 49089-0869-6C 1
SHROUD-ENGINE,LH,LWR,L.GREEN 49089F 49089-0870-290 1
SHROUD-ENGINE,LH,LWR,EBONY 49089H 49089-0870-6C 1
SHROUD-ENGINE,RH,LWR,L.GREEN 49089K 49089-0871-290 1
SHROUD-ENGINE,RH,LWR,EBONY 49089M 49089-0871-6C 1
SCREW,6X10 92009 92009-1729 2
DAMPER 92075 92075-1629 10
COLLAR,6.3X8.3X9.2 92152 92152-1725 2
COLLAR,8.8X16X4 92152A 92152-1731 2
COLLAR,6.6X9X4 92152B 92152-1982 2
COLLAR,8.8X16X4 92152C 92152-2185 2
BOLT,FLANGED,6X10 92154 92154-0459 4
BOLT,FLANGED,6X22 92154A 92154-1184 2
BOLT,FLANGED,6X14 92154B 92154-1231 4
DAMPER,8X16X8.6 92161 92161-0685 2
SCREW,6X10 92172 92172-0098 2
SCREW,5X12 92172A 92172-1095 10
