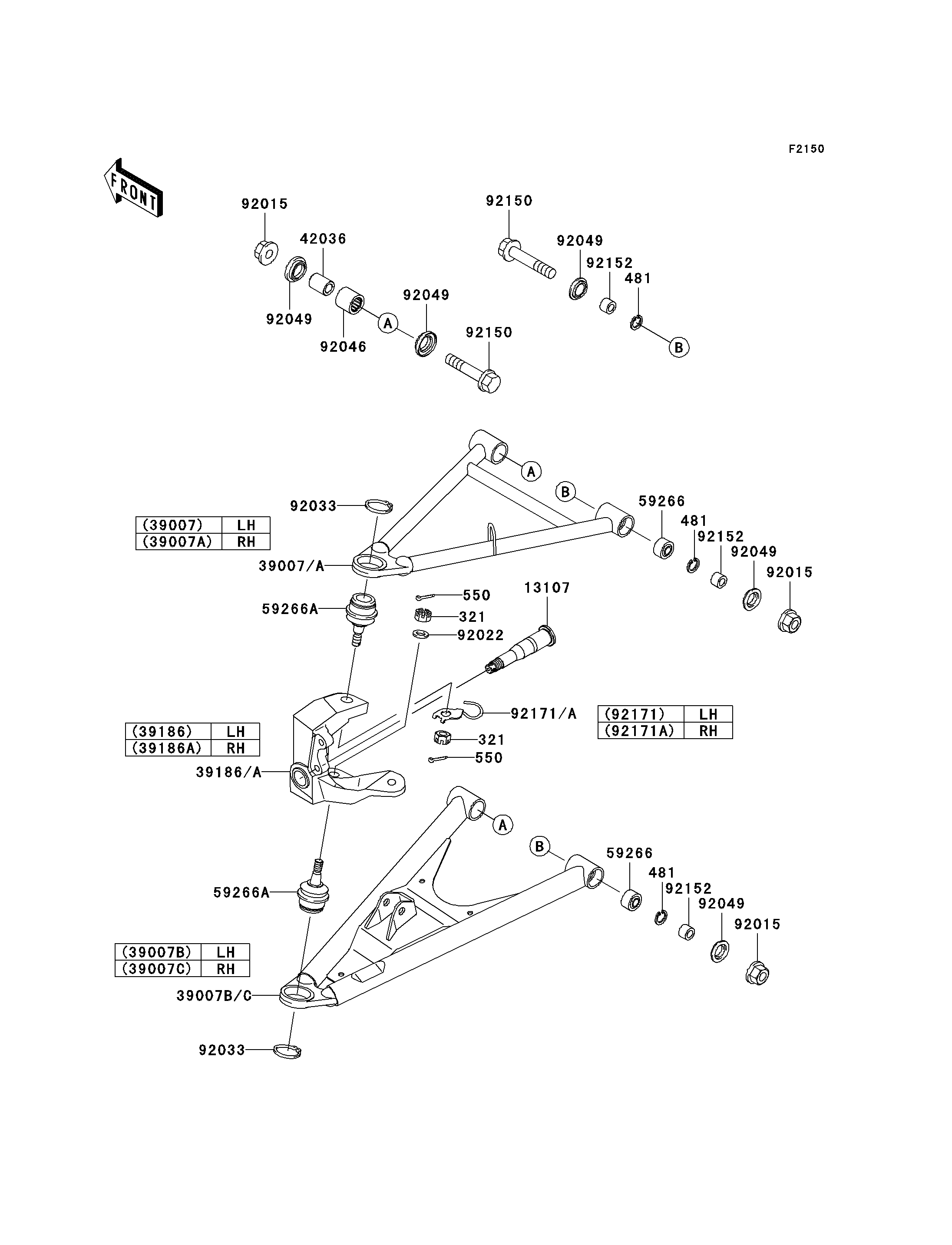

Parts Diagrams |
321
321
481
481
481
550
550
13107
39007
39007A
39007B
39007C
39186
39186A
42036
59266
59266
59266A
59266A
92015
92015
92015
92022
92033
92033
92046
92049
92049
92049
92049
92049
92150
92150
92152
92152
92152
92171
92171A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
NUT-CASTLE,12MM | 321 | 321H1200 | 4 | ||
CIRCLIP | 481 | 481J2400 | 8 | ||
PIN-COTTER,3.0X25 | 550 | 550D3025 | 4 | ||
SHAFT,KNUCKLE | 13107 | 13107-1507 | 2 | ||
ARM-SUSP,LH,UPP,G.GRAY | 39007 | 39007-1307-HN | 1 | ||
ARM-SUSP,RH,UPP,G.GRAY | 39007A | 39007-1309-HN | 1 | ||
ARM-SUSP,LH,LWR,G.GRAY | 39007B | 39007-1311-HN | 1 | ||
ARM-SUSP,RH,LWR,G.GRAY | 39007C | 39007-1312-HN | 1 | ||
KNUCKLE,LH | 39186 | 39186-0003 | 1 | ||
KNUCKLE,RH | 39186A | 39186-0004 | 1 | ||
SLEEVE | 42036 | 42036-1376 | 4 | ||
JOINT-BALL | 59266 | 59266-1011 | 4 | ||
JOINT-BALL | 59266A | 59266-1139 | 4 | ||
NUT,FLANGED,10MM | 92015 | 92015-1428 | 8 | ||
WASHER,12.3X22X1.6 | 92022 | 92022-1065 | 2 | ||
RING-SNAP,C-TYPE,32MM | 92033 | 92033-1262 | 4 | ||
BEARING-NEEDLE | 92046 | 92046-1046 | 4 | ||
SEAL-OIL,MHA17245.7F | 92049 | 92049-1223 | 16 | ||
BOLT,FLANGED,10X63 | 92150 | 92150-1384 | 8 | ||
COLLAR,10X17X14.5 | 92152 | 92152-1455 | 8 | ||
CLAMP,BRAKE HOSE | 92171 | 92171-0094 | 1 | ||
CLAMP,BRAKE HOSE | 92171A | 92171-0095 | 1 |
NUT-CASTLE,12MM | |
REF # | 321 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
CIRCLIP | |
REF # | 481 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
PIN-COTTER,3.0X25 | |
REF # | 550 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SHAFT,KNUCKLE | |
REF # | 13107 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
ARM-SUSP,LH,UPP,G.GRAY | |
REF # | 39007 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ARM-SUSP,RH,UPP,G.GRAY | |
REF # | 39007A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ARM-SUSP,LH,LWR,G.GRAY | |
REF # | 39007B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ARM-SUSP,RH,LWR,G.GRAY | |
REF # | 39007C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
KNUCKLE,LH | |
REF # | 39186 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
KNUCKLE,RH | |
REF # | 39186A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SLEEVE | |
REF # | 42036 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
JOINT-BALL | |
REF # | 59266 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
JOINT-BALL | |
REF # | 59266A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
NUT,FLANGED,10MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
WASHER,12.3X22X1.6 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-SNAP,C-TYPE,32MM | |
REF # | 92033 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BEARING-NEEDLE | |
REF # | 92046 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SEAL-OIL,MHA17245.7F | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 16 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,10X63 | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
COLLAR,10X17X14.5 | |
REF # | 92152 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
CLAMP,BRAKE HOSE | |
REF # | 92171 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP,BRAKE HOSE | |
REF # | 92171A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
