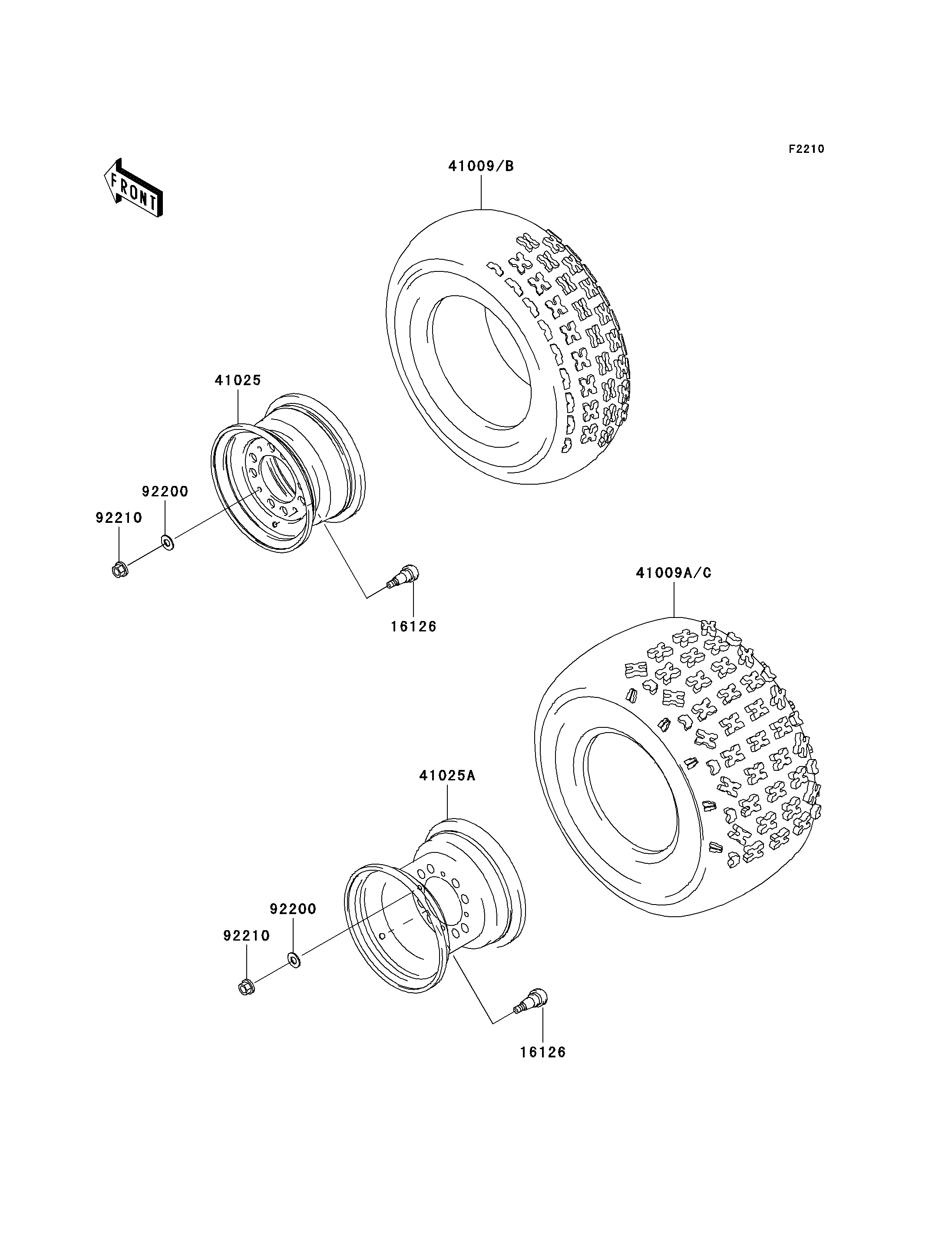

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
VALVE 16126 16126-4001 4
TIRE,FR,AT22X7-10 41009B 41009-0033 2
TIRE,RR,AT22X11-10 41009C 41009-0034 2
RIM,FR,10X5.5AT 41025 41025-0002 2
RIM,RR,10X8.5AT 41025A 41025-0003 2
WASHER,10.5X25X1.6 92200 92200-1595 16
NUT,FLANGED,10MM 92210 92210-1325 16
