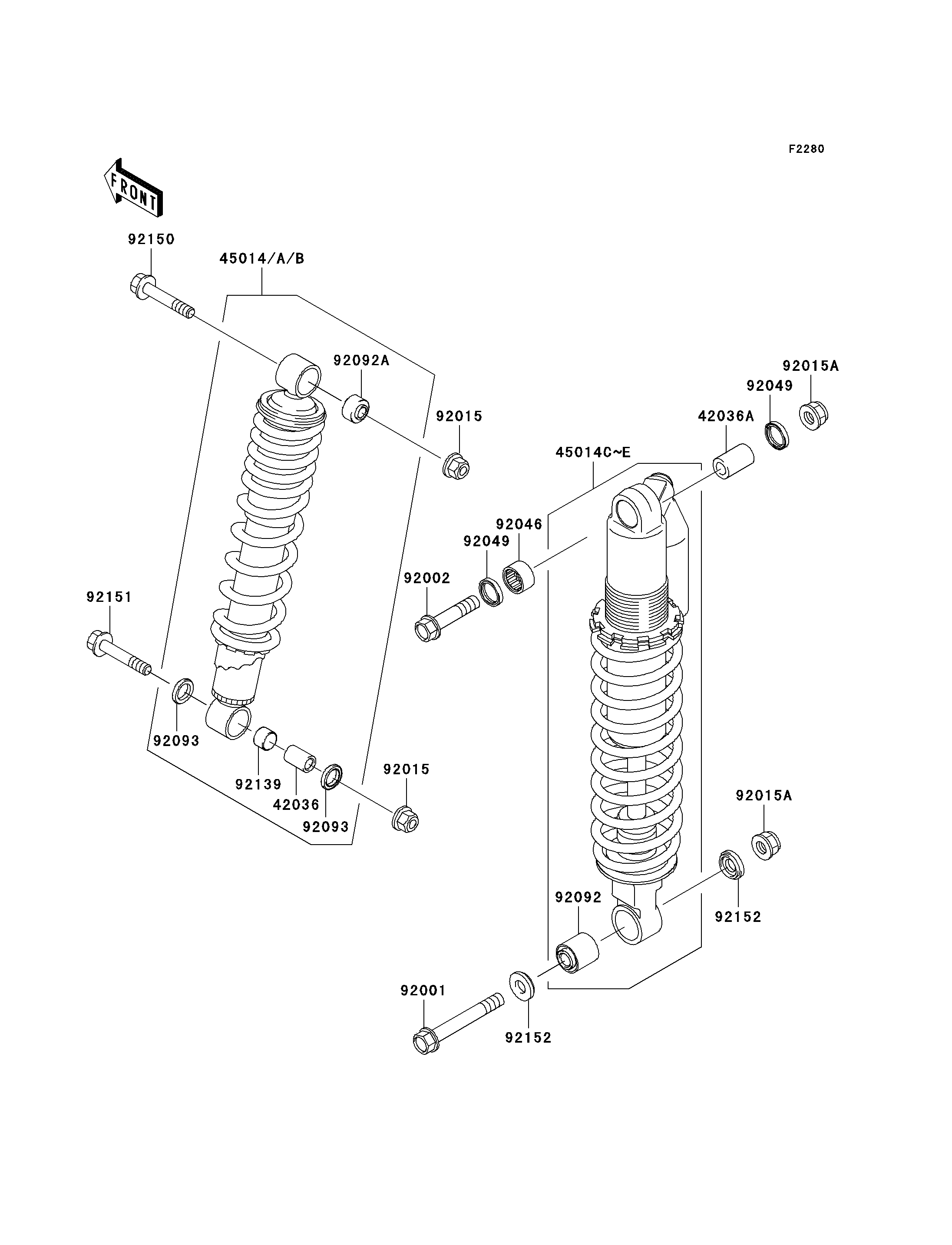

2005 KFX700 - Shock Absorber(s)

DOWNLOAD PDF
SELECT A NEW PART
42036
42036A
45014A
45014B
45014D
45014E
92001
92002
92015
92015
92015A
92015A
92046
92049
92049
92092
92092A
92093
92093
92139
92150
92151
92152
92152
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SLEEVE 42036 42036-0012 2
SLEEVE,12X20X32 42036A 42036-1378 1
SHOCKABSORBER,FR,P.WHITE 45014A 45014-0004-EH 2
SHOCKABSORBER,FR,L.GREEN 45014B 45014-0004-710 2
SHOCKABSORBER,RR,P.WHITE 45014D 45014-0005-EH 1
SHOCKABSORBER,RR,L.GREEN 45014E 45014-0005-710 1
BOLT,FLANGED,12X88 92001 92001-1693 1
BOLT,FLANGED,12X55 92002 92002-1840 1
NUT,LOCK,10MM 92015 92015-1597 4
NUT,FLANGED,LOCK,12MM 92015A 92015-1617 2
BEARING-NEEDLE 92046 92046-1239 1
SEAL-OIL,GD20X26X4 92049 92049-1108 2
BUSHING-RUBBER,SHOCKABSORBER 92092 92092-1054 1
BUSHING-RUBBER 92092A 92092-1079 2
SEAL 92093 92093-0010 4
BUSHING 92139 92139-0042 2
BOLT,FLANGED,10X51 92150 92150-1719 2
BOLT,FLANGED,10X45 92151 92151-1413 2
COLLAR 92152 92152-1293 2
