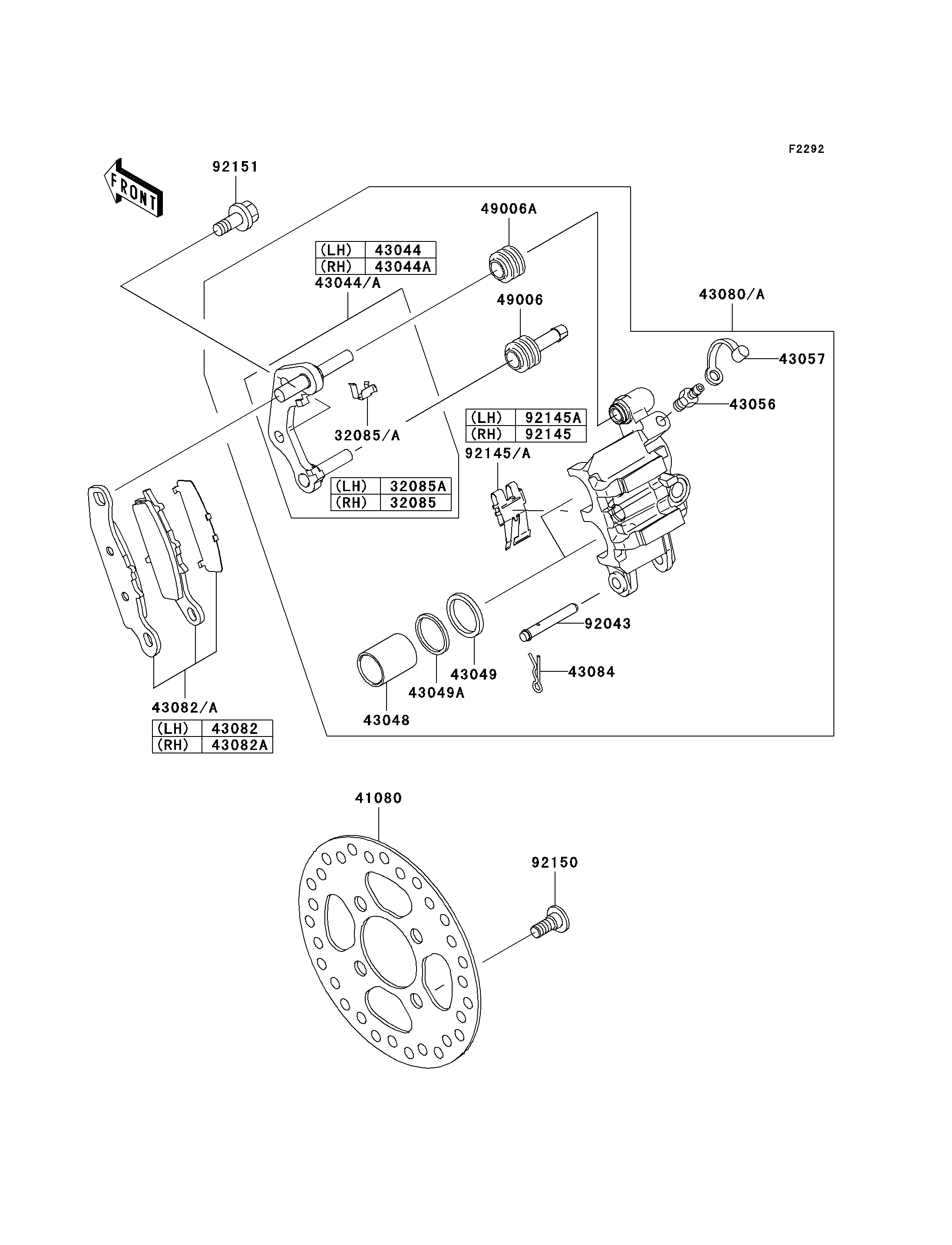

2005 KFX700 - Front Brake

DOWNLOAD PDF
SELECT A NEW PART
32085
32085A
41080
43044
43044A
43048
43049
43049A
43056
43057
43080
43080A
43082
43082A
43084
49006
49006A
92043
92145
92145A
92150
92151
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STOPPER 32085 32085-1437 1
STOPPER 32085A 32085-1517 1
DISC,FR 41080 41080-1534 2
HOLDER-COMP-CALIPER,FR,LH 43044 43044-1130 1
HOLDER-COMP-CALIPER,FR,RH 43044A 43044-1131 1
PISTON-CALIPER 43048 43048-1083 4
PACKING,PISTON 43049 43049-1059 4
PACKING,PISTON SEAL 43049A 43049-1090 4
BREATHER-BRAKE 43056 43056-1054 2
CAP-BREATHER 43057 43057-003 2
CALIPER-SUB-ASSY,FR,RH,BLACK 43080 43080-5081-DJ 1
CALIPER-SUB-ASSY,FR,LH,BLACK 43080A 43080-5082-DJ 1
PAD-ASSY-BRAKE 43082 43082-1255 1
PAD-ASSY-BRAKE 43082A 43082-1273 1
CLAMP,PAD 43084 43084-003 2
BOOT,CALIPER 49006 49006-1054 2
BOOT,CALIPER 49006A 49006-1055 2
PIN,PAD 92043 92043-1356 2
SPRING,PAD 92145 92145-1260 1
SPRING,PAD 92145A 92145-1354 1
BOLT,SOCKET,8X30 92150 92150-1771 8
BOLT,FLANGED,8X19 92151 92151-1793 4
