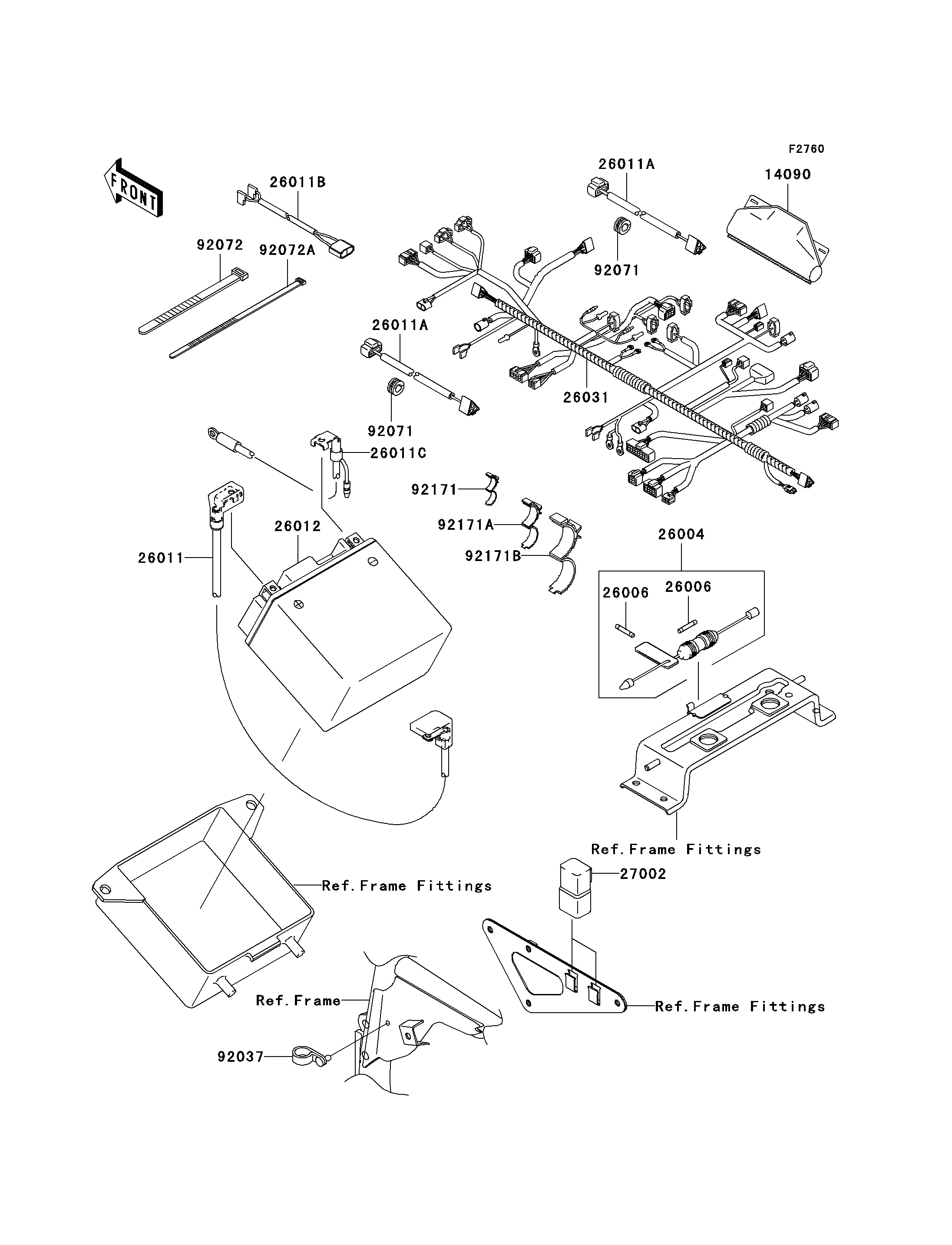

2005 KFX700 - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
14090
26004
26006
26006
26011
26011A
26011A
26011B
26011C
26012
26031
27002
92037
92071
92071
92072
92072A
92171
92171A
92171B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,COUPLER 14090 14090-1331 1
FUSE-ASSY 26004 26004-7501 1
FUSE,20A,L=32 26006 26006-1064 2
WIRE-LEAD,BATTERY(+) 26011 26011-0009 1
WIRE-LEAD,HEAD LAMP 26011A 26011-1741 2
WIRE-LEAD,FRONT BRAKE 26011B 26011-1802 1
WIRE-LEAD,BATTERY(-) 26011C 26011-1847 1
BATTERY,MF,KMX14-BS,12V 12AH 26012 26012-1414 1
HARNESS,MAIN 26031 26031-0011 1
RELAY-ASSY 27002 27002-1086 2
CLAMP,SPEED,L=58 92037 92037-1163 1
GROMMET 92071 92071-1128 2
BAND,L=123 92072 92072-030 1
BAND,L=188 92072A 92072-1239 2
CLAMP,DIA=10 92171 92171-1423 5
CLAMP,DIA=15 92171A 92171-1424 2
CLAMP,DIA=25 92171B 92171-1559 2
