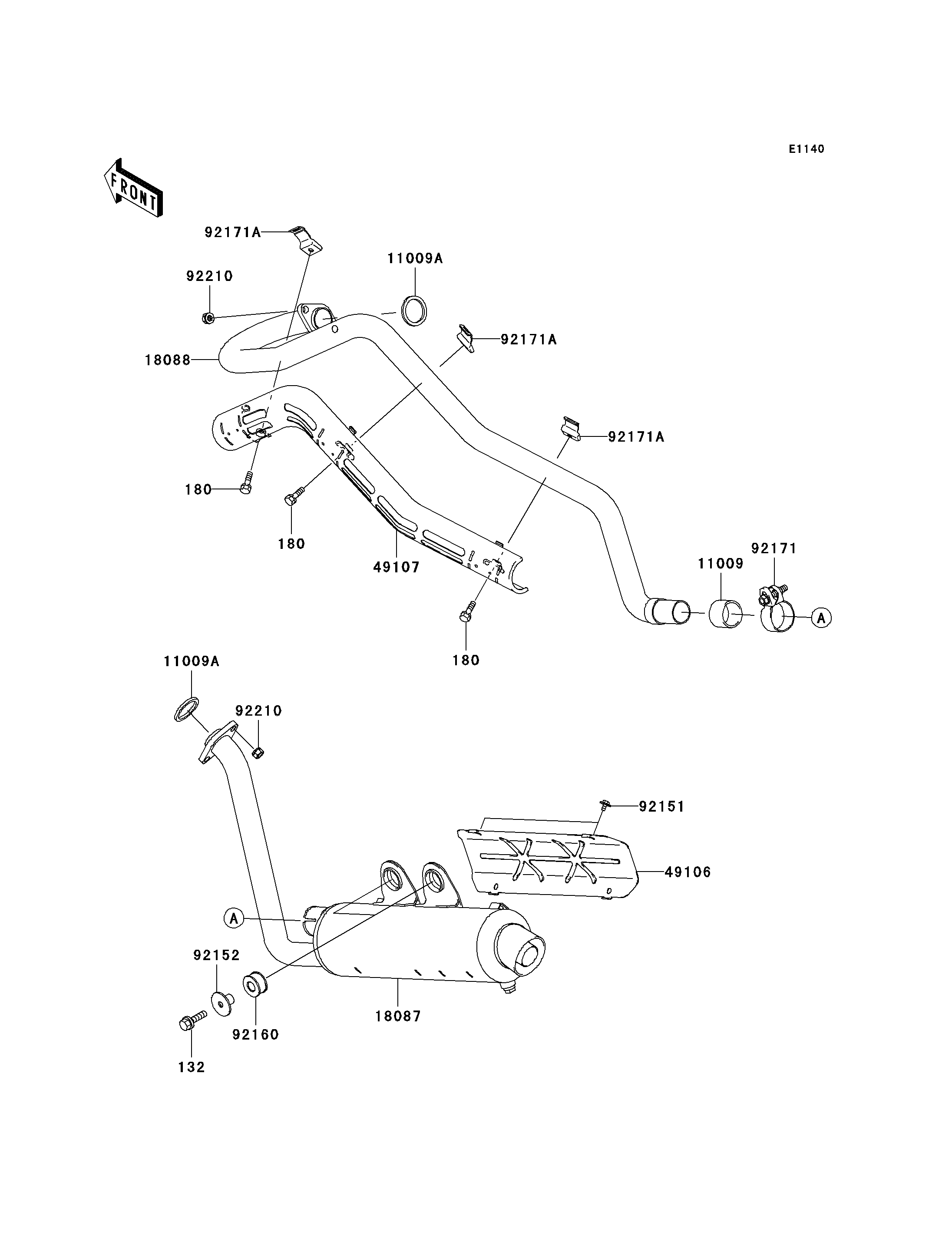

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
132
180
180
180
11009
11009A
11009A
18087
18088
49106
49107
92151
92152
92160
92171
92171A
92171A
92171A
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED-SMALL | 132 | 132Y0830 | 2 | ||
| BOLT-UPSET-WS | 180 | 180Y0620 | 3 | ||
| GASKET,MUFFLER CONNECTING | 11009 | 11009-1865 | 1 | ||
| GASKET,EXHAUST HOLDER | 11009A | 11009-1894 | 2 | ||
| MUFFLER | 18087 | 18087-0006 | 1 | ||
| PIPE-EXHAUST | 18088 | 18088-1222 | 1 | ||
| COVER-MUFFLER | 49106 | 49106-1293 | 1 | ||
| COVER-EXHAUST PIPE | 49107 | 49107-1226 | 1 | ||
| BOLT,6X12 | 92151 | 92151-1944 | 4 | ||
| COLLAR,MUFFLER | 92152 | 92152-1152 | 2 | ||
| DAMPER,MUFFLER | 92160 | 92160-1990 | 2 | ||
| CLAMP | 92171 | 92171-1330 | 1 | ||
| CLAMP | 92171A | 92171-1357 | 3 | ||
| NUT,RH,THREAD 8MM | 92210 | 92210-1242 | 4 |
| BOLT-FLANGED-SMALL | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET-WS | |
| REF # | 180 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| GASKET,MUFFLER CONNECTING | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,EXHAUST HOLDER | |
| REF # | 11009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MUFFLER | |
| REF # | 18087 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIPE-EXHAUST | |
| REF # | 18088 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-MUFFLER | |
| REF # | 49106 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-EXHAUST PIPE | |
| REF # | 49107 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X12 | |
| REF # | 92151 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COLLAR,MUFFLER | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER,MUFFLER | |
| REF # | 92160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92171 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92171A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| NUT,RH,THREAD 8MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
