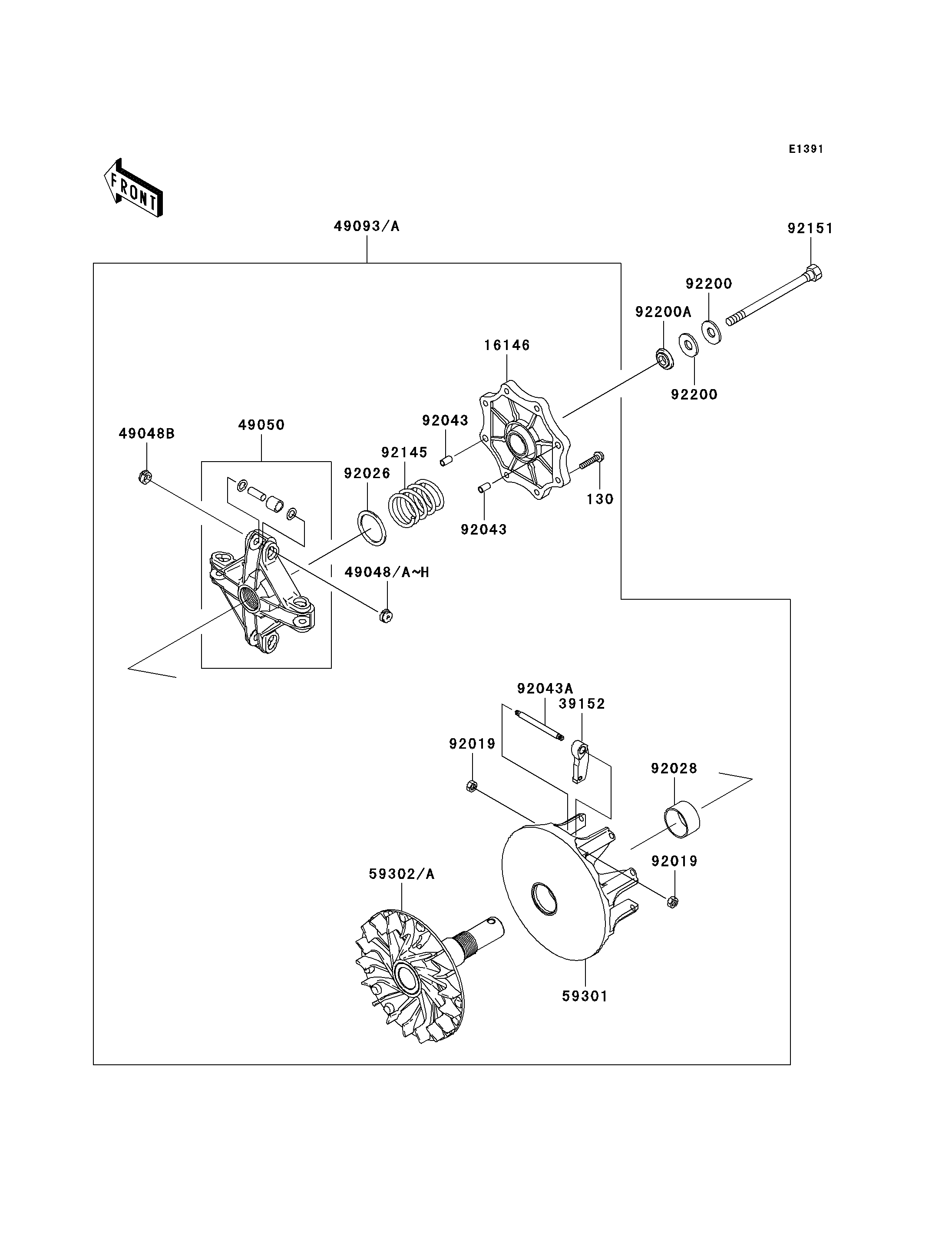

Parts Diagrams |
130
16146
39152
49048
49048A
49048B
49048B
49048C
49048D
49048E
49048F
49048G
49048H
49050
49093
59301
59302A
92019
92019
92026
92028
92043
92043
92043A
92145
92151
92200
92200
92200A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED | 130 | 130T0630 | 8 | ||
COVER-ASSY | 16146 | 16146-1231 | 1 | ||
WEIGHT-RAMP | 39152 | 39152-1088 | 4 | ||
SHOE,T=7.2 | 49048 | 49048-1087 | AR | ||
SHOE,T=7.3 | 49048A | 49048-1088 | AR | ||
SHOE,T=7.4 | 49048B | 49048-1089 | 8 | ||
SHOE,T=7.5 | 49048C | 49048-1090 | AR | ||
SHOE,T=7.6 | 49048D | 49048-1091 | AR | ||
SHOE,T=7.7 | 49048E | 49048-1092 | AR | ||
SHOE,T=7.8 | 49048F | 49048-1093 | AR | ||
SHOE,T=7.9 | 49048G | 49048-1094 | AR | ||
SHOE,T=8.0 | 49048H | 49048-1095 | AR | ||
SPIDER | 49050 | 49050-1081 | 1 | ||
CONVERTER-ASSY-DRIVE | 49093 | 49093-0005 | 1 | ||
SHEAVE-MOVABLE | 59301 | 59301-1070 | 1 | ||
SHEAVE-COMP | 59302A | 59302-1106 | 1 | ||
NUT,LOCK,6MM | 92019 | 92019-008 | 8 | ||
SPACER,39X49.5X1.0 | 92026 | 92026-1603 | 1 | ||
BUSHING | 92028 | 92028-1975 | 1 | ||
PIN,6.2X8X14 | 92043 | 92043-1263 | 2 | ||
PIN | 92043A | 92043-1688 | 4 | ||
SPRING | 92145 | 92145-0021 | 1 | ||
BOLT | 92151 | 92151-1393 | 1 | ||
WASHER,SPRING | 92200 | 92200-1504 | 2 | ||
WASHER | 92200A | 92200-1634 | 1 |
BOLT-FLANGED | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
COVER-ASSY | |
REF # | 16146 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WEIGHT-RAMP | |
REF # | 39152 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SHOE,T=7.2 | |
REF # | 49048 |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHOE,T=7.3 | |
REF # | 49048A |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHOE,T=7.4 | |
REF # | 49048B |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
SHOE,T=7.5 | |
REF # | 49048C |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHOE,T=7.6 | |
REF # | 49048D |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHOE,T=7.7 | |
REF # | 49048E |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHOE,T=7.8 | |
REF # | 49048F |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHOE,T=7.9 | |
REF # | 49048G |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHOE,T=8.0 | |
REF # | 49048H |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SPIDER | |
REF # | 49050 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CONVERTER-ASSY-DRIVE | |
REF # | 49093 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHEAVE-MOVABLE | |
REF # | 59301 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHEAVE-COMP | |
REF # | 59302A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,LOCK,6MM | |
REF # | 92019 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
SPACER,39X49.5X1.0 | |
REF # | 92026 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BUSHING | |
REF # | 92028 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN,6.2X8X14 | |
REF # | 92043 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PIN | |
REF # | 92043A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SPRING | |
REF # | 92145 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT | |
REF # | 92151 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,SPRING | |
REF # | 92200 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER | |
REF # | 92200A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
