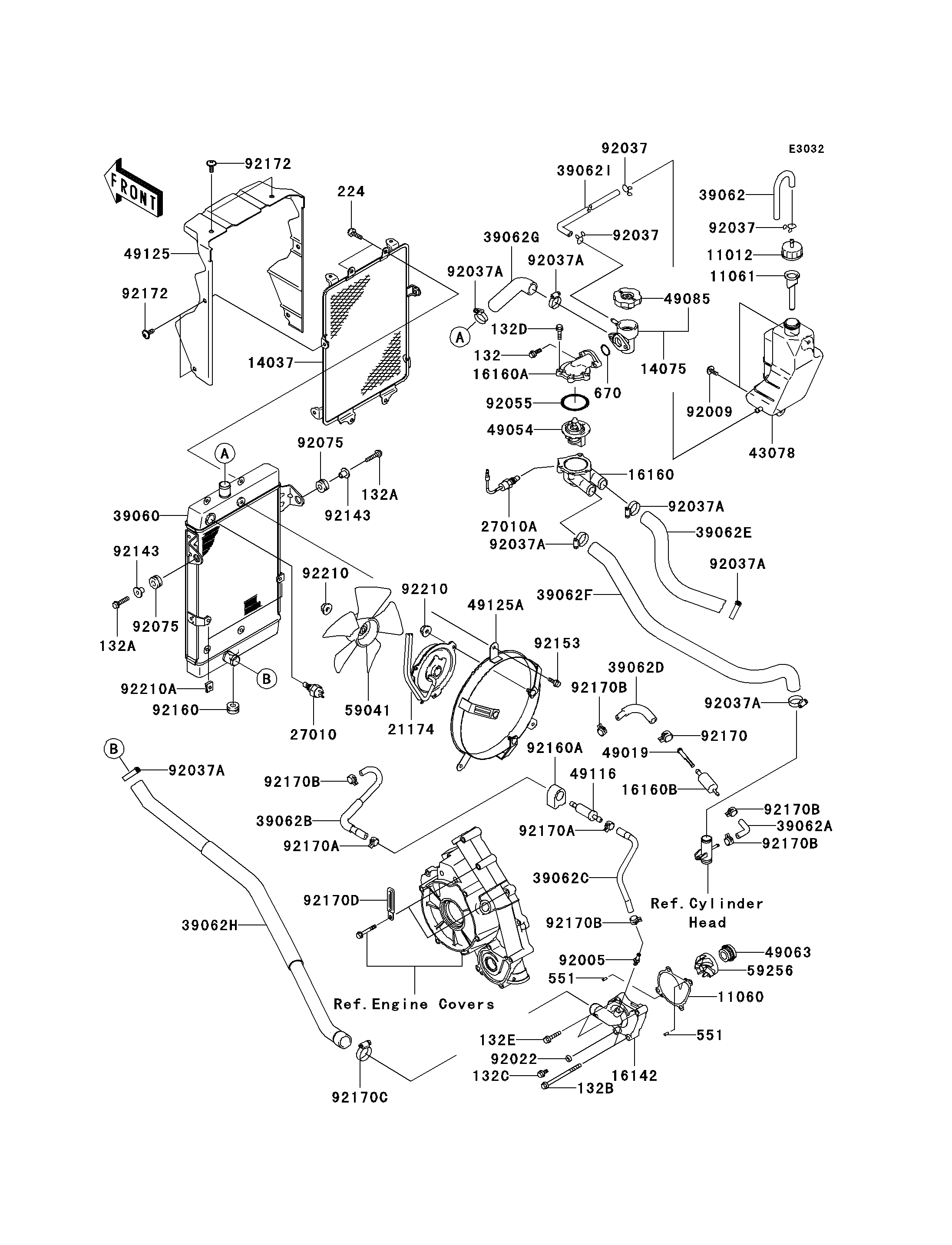

Parts Diagrams
OWNER CENTER |
![customer service agent speaking with a customer](/Content/Images/owner-header-mobile.jpg)
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
11012
11012
11060
11060
11061
11061
14037
14037
14075
14075
16142
16142
16160
16160
16160A
16160A
16160B
16160B
21174
21174
27010
27010
27010A
27010A
39060
39060
39062
39062
39062A
39062A
39062B
39062B
39062C
39062C
39062D
39062D
39062E
39062E
39062F
39062F
39062G
39062G
39062H
39062H
39062I
39062I
43078
43078
49019
49019
49054
49054
49063
49063
49085
49085
49116
49116
49125
49125
49125A
49125A
59041
59041
59256
59256
92005
92005
92009
92009
92022
92022
92037
92037
92037
92037
92037
92037
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92055
92055
92075
92075
92075
92075
132
132
132A
132A
132A
132A
132B
132B
132C
132C
132D
132D
132E
132E
224
224
551
551
551
551
670
670
92143
92143
92143
92143
92153
92153
92160
92160
92160A
92160A
92170
92170
92170A
92170A
92170A
92170A
92170B
92170B
92170B
92170B
92170B
92170B
92170B
92170B
92170B
92170B
92170C
92170C
92170D
92170D
92172
92172
92172
92172
92210
92210
92210
92210
92210A
92210A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAP | 11012 | 11012-1854 | 1 | ||
GASKET,WATER PUMP | 11060 | 11060-1964 | 1 | ||
GASKET | 11061 | 11061-0043 | 1 | ||
SCREEN | 14037 | 14037-0017 | 1 | ||
CAP-ASSY,PRESSURE | 14075 | 14075-1115 | 1 | ||
COVER-PUMP,WATER | 16142 | 16142-0002 | 1 | ||
BODY,THERMOSTAT,LWR | 16160 | 16160-1112 | 1 | ||
BODY,THERMOSTAT,UPP | 16160A | 16160-1113 | 1 | ||
BODY | 16160B | 16160-1359 | 1 | ||
MOTOR-ELECTRIC | 21174 | 21174-0001 | 1 | ||
SWITCH,FAN | 27010 | 27010-1202 | 1 | ||
SWITCH,SENSOR WATER | 27010A | 27010-1346 | 1 | ||
RADIATOR | 39060 | 39060-0006 | 1 | ||
HOSE-COOLING,BREATHER | 39062 | 39062-0002 | 1 | ||
HOSE-COOLING,HEAD-FILTER | 39062A | 39062-1816 | 1 | ||
HOSE-COOLING,CARB-VALVE | 39062B | 39062-1817 | 1 | ||
HOSE-COOLING,VALVE-WATER PUMP | 39062C | 39062-1818 | 1 | ||
HOSE-COOLING,FILTER-CARB | 39062D | 39062-1858 | 1 | ||
HOSE-COOLING,FR HEAD-THERMO | 39062E | 39062-1920 | 1 | ||
HOSE-COOLING,RR HEAD-THERMO | 39062F | 39062-1921 | 1 | ||
HOSE-COOLING,THERMO-RADIATOR | 39062G | 39062-1922 | 1 | ||
HOSE-COOLING,RAD-WATER PUMP | 39062H | 39062-1923 | 1 | ||
HOSE-COOLING,RESERVOIR-THERMO | 39062I | 39062-1924 | 1 | ||
RESERVOIR,TANK | 43078 | 43078-0004 | 1 | ||
FILTER-WATER | 49019 | 49019-1068 | 1 | ||
THERMOSTAT | 49054 | 49054-1055 | 1 | ||
SEAL-MECHANICAL,WATER | 49063 | 49063-1055 | 1 | ||
CAP-ASSY-PRESSURE | 49085 | 49085-1067 | 1 | ||
VALVE-ASSY | 49116 | 49116-1190 | 1 | ||
SHROUD | 49125 | 49125-0003 | 1 | ||
SHROUD | 49125A | 49125-0007 | 1 | ||
FAN | 59041 | 59041-0001 | 1 | ||
IMPELLER | 59256 | 59256-1069 | 1 | ||
FITTING | 92005 | 92005-1337 | 1 | ||
SCREW,6X16 | 92009 | 92009-1621 | 2 | ||
WASHER,6.2X11X1 | 92022 | 92022-304 | 1 | ||
CLAMP,TUBE | 92037 | 92037-147 | 3 | ||
CLAMP,COOLING HOSE | 92037A | 92037-1589 | 7 | ||
RING-O,44.7X2.4 | 92055 | 92055-1279 | 1 | ||
DAMPER | 92075 | 92075-209 | 2 | ||
BOLT-FLANGED-SMALL | 132 | 132H0616 | 2 | ||
BOLT-FLANGED-SMALL,6X25 | 132A | 132H0625 | 2 | ||
BOLT-FLANGED-SMALL | 132B | 132J0690 | 2 | ||
BOLT-FLANGED-SMALL | 132C | 132Y0612 | 1 | ||
BOLT-FLANGED-SMALL | 132D | 132Y0620 | 4 | ||
BOLT-FLANGED-SMALL | 132E | 132Y0630 | 2 | ||
SCREW-PAN-WP-CROS | 224 | 224C0612 | 4 | ||
PIN-DOWEL,4X8 | 551 | 551A0408 | 2 | ||
O RING,20MM | 670 | 670B2020 | 1 | ||
COLLAR | 92143 | 92143-1353 | 2 | ||
BOLT | 92153 | 92153-0456 | 3 | ||
DAMPER | 92160 | 92160-1007 | 1 | ||
DAMPER,VALVE | 92160A | 92160-1451 | 1 | ||
CLAMP | 92170 | 92170-1491 | 1 | ||
CLAMP | 92170A | 92170-1492 | 2 | ||
CLAMP | 92170B | 92170-1493 | 5 | ||
CLAMP | 92170C | 92170-1497 | 1 | ||
CLAMP | 92170D | 92170-1514 | 2 | ||
SCREW,6X10 | 92172 | 92172-0005 | 6 | ||
NUT | 92210 | 92210-0085 | 4 | ||
NUT | 92210A | 92210-0086 | 2 |
CAP | |
REF # | 11012 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET,WATER PUMP | |
REF # | 11060 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET | |
REF # | 11061 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREEN | |
REF # | 14037 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP-ASSY,PRESSURE | |
REF # | 14075 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER-PUMP,WATER | |
REF # | 16142 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BODY,THERMOSTAT,LWR | |
REF # | 16160 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BODY,THERMOSTAT,UPP | |
REF # | 16160A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BODY | |
REF # | 16160B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
MOTOR-ELECTRIC | |
REF # | 21174 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SWITCH,FAN | |
REF # | 27010 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SWITCH,SENSOR WATER | |
REF # | 27010A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RADIATOR | |
REF # | 39060 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOSE-COOLING,BREATHER | |
REF # | 39062 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOSE-COOLING,HEAD-FILTER | |
REF # | 39062A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOSE-COOLING,CARB-VALVE | |
REF # | 39062B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOSE-COOLING,VALVE-WATER PUMP | |
REF # | 39062C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOSE-COOLING,FILTER-CARB | |
REF # | 39062D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOSE-COOLING,FR HEAD-THERMO | |
REF # | 39062E |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOSE-COOLING,RR HEAD-THERMO | |
REF # | 39062F |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOSE-COOLING,THERMO-RADIATOR | |
REF # | 39062G |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOSE-COOLING,RAD-WATER PUMP | |
REF # | 39062H |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOSE-COOLING,RESERVOIR-THERMO | |
REF # | 39062I |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RESERVOIR,TANK | |
REF # | 43078 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FILTER-WATER | |
REF # | 49019 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
THERMOSTAT | |
REF # | 49054 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-MECHANICAL,WATER | |
REF # | 49063 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP-ASSY-PRESSURE | |
REF # | 49085 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
VALVE-ASSY | |
REF # | 49116 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHROUD | |
REF # | 49125 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHROUD | |
REF # | 49125A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FAN | |
REF # | 59041 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
IMPELLER | |
REF # | 59256 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FITTING | |
REF # | 92005 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,6X16 | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER,6.2X11X1 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP,TUBE | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
CLAMP,COOLING HOSE | |
REF # | 92037A |
---|---|
PART NUMBER | |
QUANTITY | 7 |
DESTINATION | |
REMARKS |
RING-O,44.7X2.4 | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL | |
REF # | 132 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL,6X25 | |
REF # | 132A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL | |
REF # | 132B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL | |
REF # | 132C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL | |
REF # | 132D |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL | |
REF # | 132E |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW-PAN-WP-CROS | |
REF # | 224 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
PIN-DOWEL,4X8 | |
REF # | 551 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
O RING,20MM | |
REF # | 670 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR | |
REF # | 92143 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT | |
REF # | 92153 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92160 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER,VALVE | |
REF # | 92160A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92170 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92170A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92170B |
---|---|
PART NUMBER | |
QUANTITY | 5 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92170C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92170D |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW,6X10 | |
REF # | 92172 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
NUT | |
REF # | 92210 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
NUT | |
REF # | 92210A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
