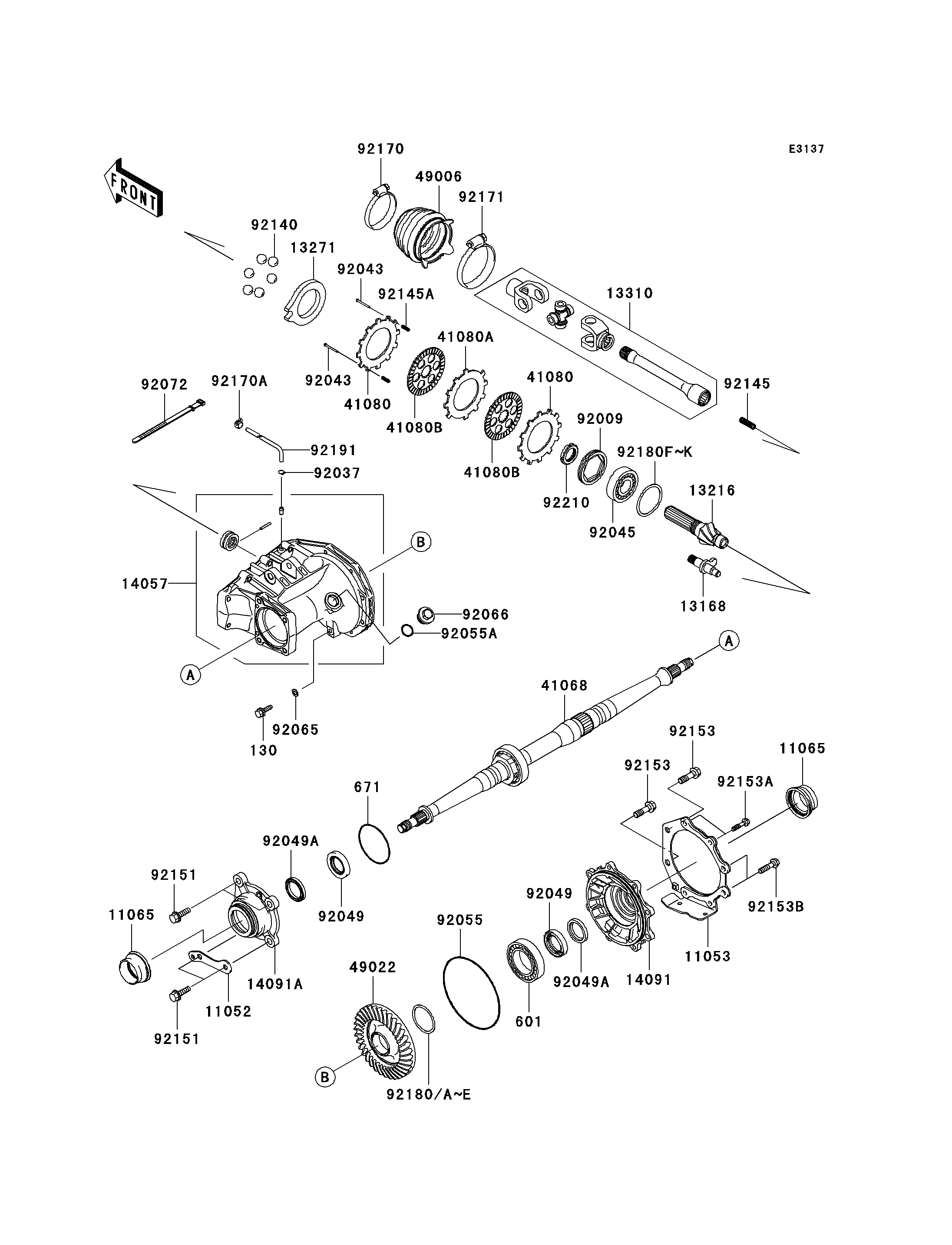

2004 KFX700 V Force - Drive Shaft-Rear

DOWNLOAD PDF
SELECT A NEW PART
11052
11052
11053
11053
11065
11065
11065
11065
13168
13168
13216
13216
13271
13271
13310
13310
14057
14057
14091
14091
14091A
14091A
41068
41068
41080
41080
41080
41080
41080A
41080A
41080B
41080B
41080B
41080B
49006
49006
49022
49022
92009
92009
92037
92037
92043
92043
92043
92043
92045
92045
92049
92049
92049
92049
92049A
92049A
92049A
92049A
92055
92055
92055A
92055A
92065
92065
92066
92066
92072
92072
92140
92140
92145
92145
92145A
92145A
92151
92151
92151
92151
92153
92153
92153
92153
92153A
92153A
92153B
92153B
92170
92170
92170A
92170A
92171
92171
92180
92180
92180A
92180A
92180B
92180B
130
130
601
601
671
671
92180C
92180C
92180D
92180D
92180E
92180E
92180F
92180F
92180G
92180G
92180H
92180H
92180I
92180I
92180J
92180J
92180K
92180K
92191
92191
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,REAR GUARD 11052 11052-1348 1
BRACKET 11053 11053-0216 1
CAP 11065 11065-1260 2
LEVER,BRAKE 13168 13168-1687 1
GEAR-COMP,RR,8T 13216 13216-0002 1
PLATE,CAM 13271 13271-1938 1
SHAFT-ASSY,RR DRIVE SHAFT 13310 13310-1026 1
CASE-COMP-GEAR 14057 14057-0001 1
COVER,RH 14091 14091-0028 1
COVER,LH 14091A 14091-1422 1
AXLE,RR,DRIVE SHAFT 41068 41068-0003 1
DISC,PRESSURE 41080 41080-1483 2
DISC,SEPARATER 41080A 41080-1484 1
DISC,FRICTION 41080B 41080-1538 2
BOOT,RR DRIVE SHAFT 49006 49006-1358 1
GEAR-BEVEL,RR,35T 49022 49022-0004 1
SCREW 92009 92009-1667 1
CLAMP,HOSE 92037 92037-1104 1
PIN,3X35 92043 92043-1617 2
BEARING-BALL,BX30-1C3 92045 92045-1391 1
SEAL-OIL,HTC40X58X8 92049 92049-0012 2
SEAL-OIL,SC40X52X7 92049A 92049-0013 2
RING-O,156.3X3.7 92055 92055-0004 1
RING-O,25.7X2.4 92055A 92055-1136 1
GASKET 92065 92065-023 1
PLUG 92066 92066-1303 1
BAND,L=186 92072 92072-056 2
BALL,D/O#12 92140 92140-1064 6
SPRING,RR DRIVE SHAFT 92145 92145-1300 1
SPRING,RETURN 92145A 92145-1553 2
BOLT,10X35 92151 92151-1909 4
BOLT,12X40 92153 92153-0394 2
BOLT,8X35 92153A 92153-0395 4
BOLT,10X40 92153B 92153-0397 2
CLAMP 92170 92170-1763 1
CLAMP 92170A 92170-2043 1
CLAMP 92171 92171-1383 1
SHIM,55X64X0.15 92180 92180-1417 AR
SHIM,55X64X0.20 92180A 92180-1418 AR
SHIM,55X64X0.50 92180B 92180-1419 AR
BOLT-FLANGED,8X16 130 130G0816 1
BEARING-BALL 601 601A6011 1
O RING 671 671D2585 1
SHIM,55X64X0.80 92180C 92180-1420 AR
SHIM,55X64X1.00 92180D 92180-1421 AR
SHIM,55X64X1.20 92180E 92180-1422 AR
SHIM,60X72X0.15 92180F 92180-1423 AR
SHIM,60X72X0.20 92180G 92180-1424 AR
SHIM,60X72X0.50 92180H 92180-1425 AR
SHIM,60X72X0.80 92180I 92180-1426 AR
SHIM,60X72X1.00 92180J 92180-1427 AR
SHIM,60X72X1.20 92180K 92180-1428 AR
TUBE,BREATHER,L=1450 92191 92191-0014 1
NUT,30MM 92210 92210-1294 1
