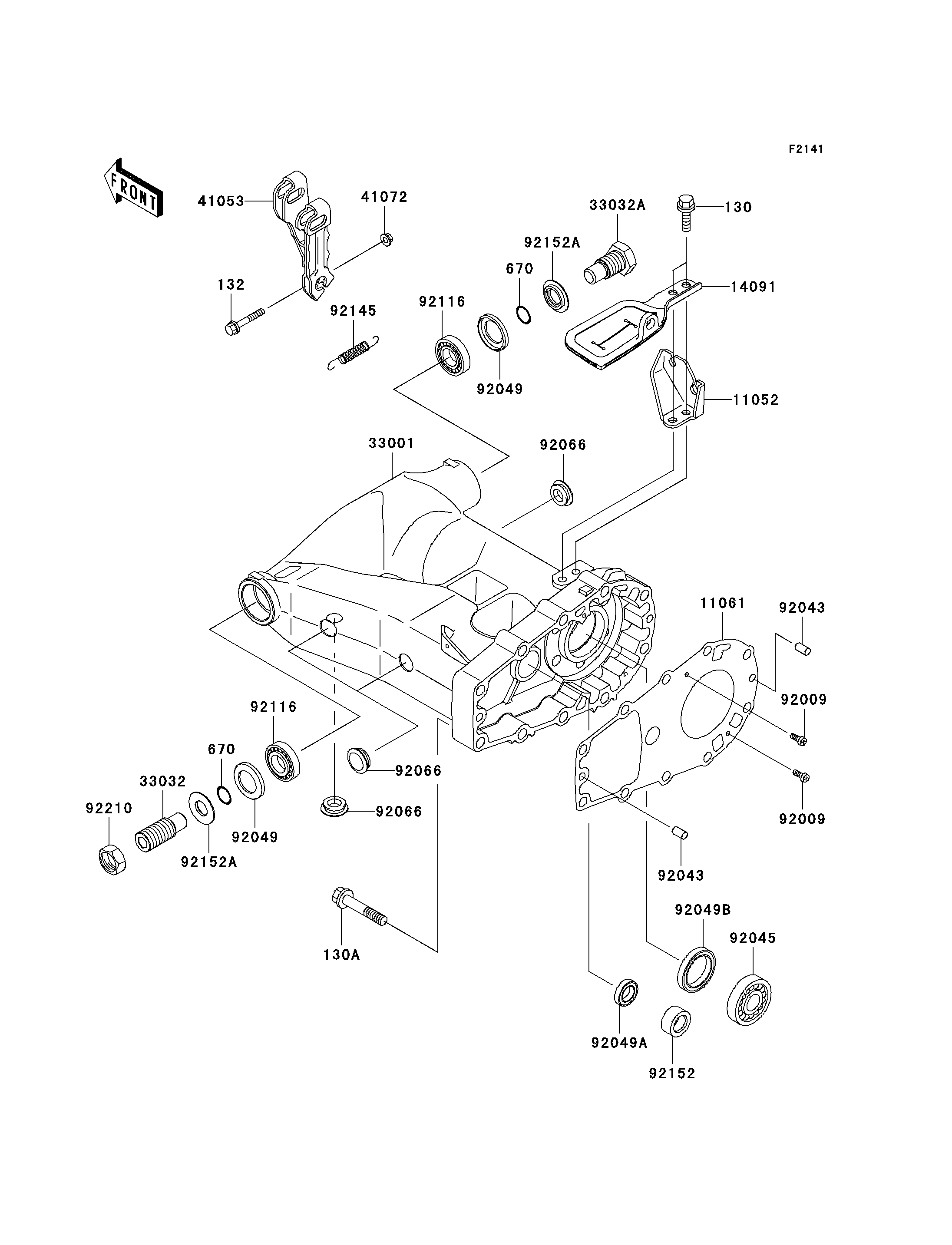

2004 KFX700 V Force - Swingarm

DOWNLOAD PDF
SELECT A NEW PART
130
130A
132
670
670
11052
11061
14091
33001
33032
33032A
41053
41072
92009
92009
92043
92043
92045
92049
92049
92049A
92049B
92066
92066
92066
92116
92116
92145
92152
92152A
92152A
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130J0822 2
BOLT-FLANGED 130A 130P1055 10
BOLT-FLANGED-SMALL 132 132G0640 1
O RING,16MM 670 670B2016 2
BRACKET,CABLE STOPPER 11052 11052-1888 1
GASKET,SWING ARM 11061 11061-1065 1
COVER,BRAKE 14091 14091-1425 1
ARM-COMP-SWING 33001 33001-1585 1
SHAFT-SWING ARM,LEFT SIDE 33032 33032-1197 1
SHAFT-SWING ARM,RIGHT SIDE 33032A 33032-1200 1
LEVER-BRAKE CAM 41053 41053-1099 1
NUT,6MM 41072 41072-007 1
SCREW,4X10 92009 92009-1936 2
PIN,8X14 92043 92043-1567 2
BEARING-BALL,TMBO/28C3 92045 92045-1427 1
SEAL-OIL,26406 92049 92049-1030 2
SEAL-OIL,TC17X28X6 92049A 92049-1537 1
SEAL-OIL,HTC35X48X7 92049B 92049-1538 1
PLUG 92066 92066-1534 4
BEARING-ROLLER,4T30203E1 92116 92116-1001 2
SPRING,BRAKE LEVER RETURN 92145 92145-1313 1
COLLAR 92152 92152-1240 1
COLLAR 92152A 92152-1356 2
NUT,22MM 92210 92210-0190 1
