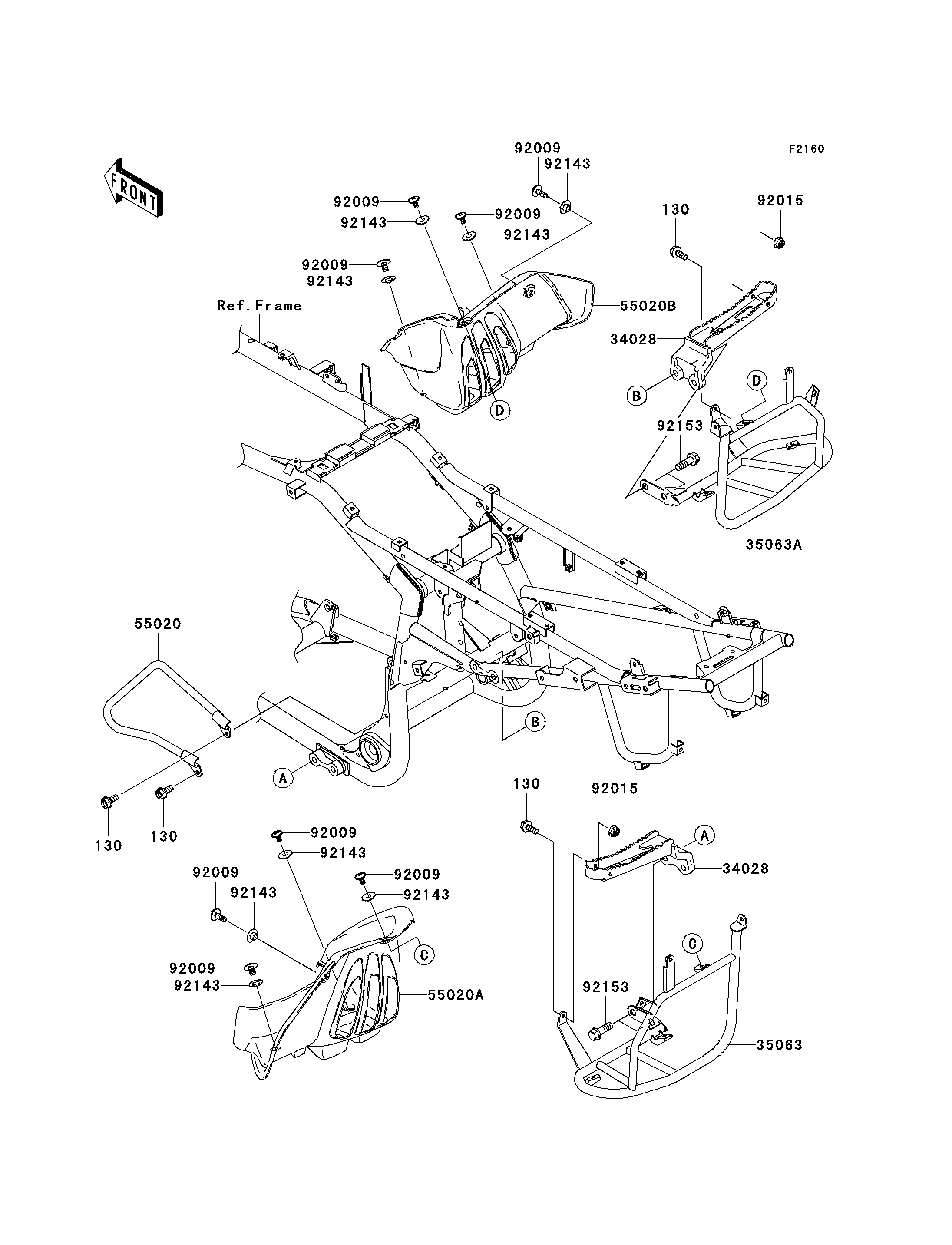

Parts Diagrams |
130
130
130
130
34028
34028
35063
35063A
55020
55020A
55020B
92009
92009
92009
92009
92009
92009
92009
92009
92015
92015
92143
92143
92143
92143
92143
92143
92143
92143
92153
92153
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,6X14,BLACK | 130 | 130J0614 | 4 | ||
STEP,G.GRAY | 34028 | 34028-1535-HN | 2 | ||
STAY,STEP,LH | 35063 | 35063-0027 | 1 | ||
STAY,STEP,RH | 35063A | 35063-0028 | 1 | ||
GUARD,LEFT STEP | 55020 | 55020-0033 | 1 | ||
GUARD,STEP,LH,F.BLACK | 55020A | 55020-1799-6Z | 1 | ||
GUARD,STEP,RH,F.BLACK | 55020B | 55020-1800-6Z | 1 | ||
SCREW,6X16 | 92009 | 92009-1621 | 8 | ||
NUT,LOCK,FLANGED,6MM | 92015 | 92015-1603 | 2 | ||
COLLAR | 92143 | 92143-1087 | 8 | ||
BOLT,FLANGED,10X30 | 92153 | 92153-0427 | 4 |
