Parts Diagrams |

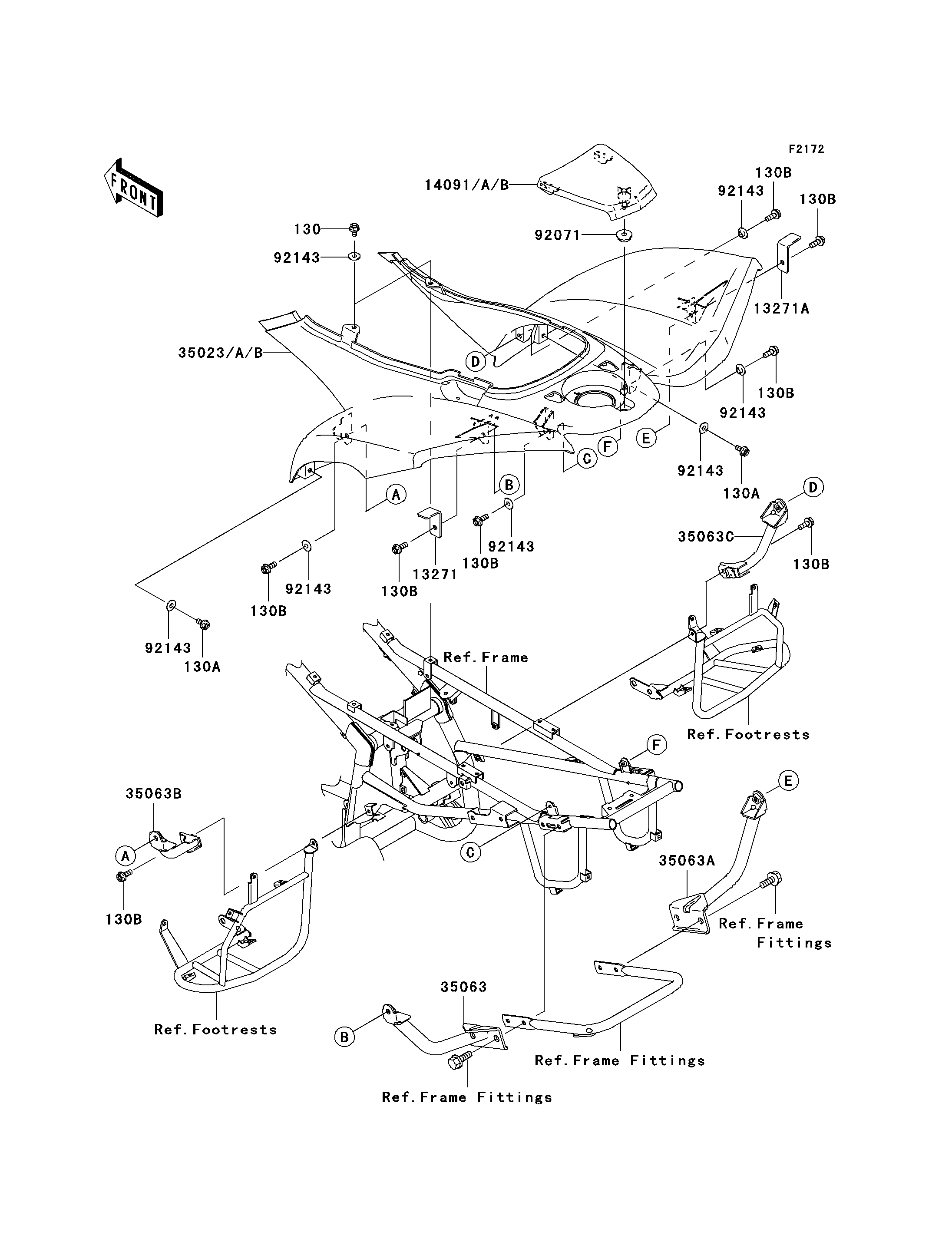

130
130A
130A
130B
130B
130B
130B
130B
130B
130B
130B
13271
13271A
14091
14091A
35023
35023A
35063
35063A
35063B
35063C
92071
92143
92143
92143
92143
92143
92143
92143
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED | 130 | 130J0610 | 2 | ||
BOLT-FLANGED | 130A | 130J0612 | 2 | ||
BOLT-FLANGED,6X16,BLACK | 130B | 130J0616 | 8 | ||
PLATE,RR FENDER,LH | 13271 | 13271-0126 | 1 | ||
PLATE,RR FENDER,RH | 13271A | 13271-0127 | 1 | ||
COVER,TANK CAP,I.M.CARBON | 14091 | 14091-0206-380 | 1 | ||
COVER,TANK CAP,I.L.RED | 14091A | 14091-0206-383 | 1 | ||
FENDER-REAR,I.M.CARBON | 35023 | 35023-0028-380 | 1 | ||
FENDER-REAR,I.L.RED | 35023A | 35023-0028-383 | 1 | ||
STAY,REAR FENDER,LH | 35063 | 35063-0042 | 1 | ||
STAY,REAR FENDER,RH | 35063A | 35063-0043 | 1 | ||
STAY,REAR FENDER,LH | 35063B | 35063-0044 | 1 | ||
STAY,REAR FENDER,RH | 35063C | 35063-0045 | 1 | ||
GROMMET | 92071 | 92071-0008 | 1 | ||
COLLAR | 92143 | 92143-1087 | 8 |
BOLT-FLANGED | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED | |
REF # | 130A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,6X16,BLACK | |
REF # | 130B |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
PLATE,RR FENDER,LH | |
REF # | 13271 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE,RR FENDER,RH | |
REF # | 13271A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,TANK CAP,I.M.CARBON | |
REF # | 14091 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,TANK CAP,I.L.RED | |
REF # | 14091A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FENDER-REAR,I.M.CARBON | |
REF # | 35023 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FENDER-REAR,I.L.RED | |
REF # | 35023A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STAY,REAR FENDER,LH | |
REF # | 35063 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STAY,REAR FENDER,RH | |
REF # | 35063A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STAY,REAR FENDER,LH | |
REF # | 35063B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STAY,REAR FENDER,RH | |
REF # | 35063C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GROMMET | |
REF # | 92071 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR | |
REF # | 92143 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
