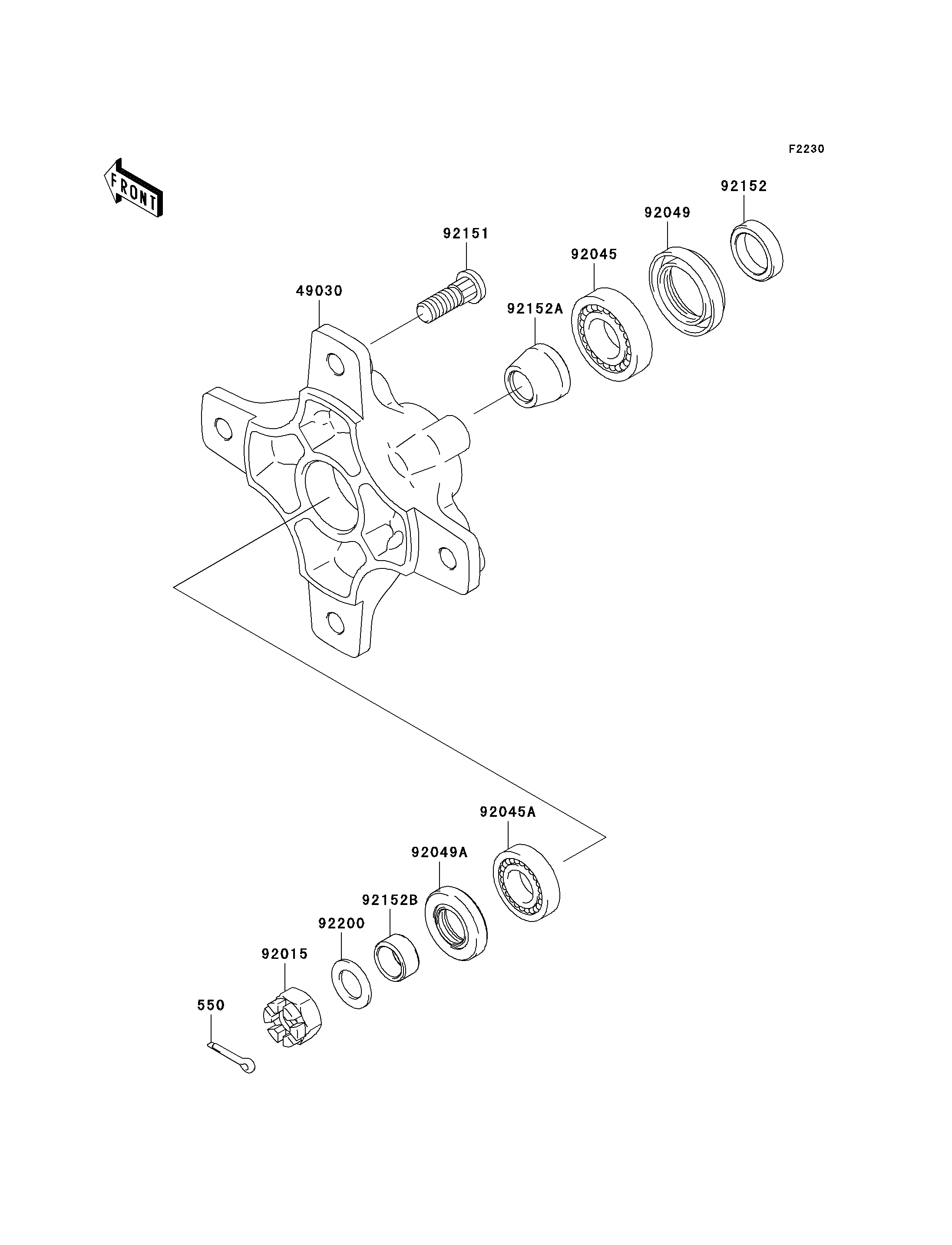

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIN-COTTER,3.0X30 550 550D3030 2
HUB,FR 49030 49030-1142 2
NUT,CASTLE,14MM 92015 92015-1765 2
BEARING-BALL,60042RD 92045 92045-3705 2
BEARING-BALL,62022RD 92045A 92045-3721 2
SEAL-OIL,MT028N1 92049 92049-1612 2
SEAL-OIL,MHSA20X35X7 92049A 92049-1613 2
BOLT,10X29.5 92151 92151-1392 8
COLLAR,21.2X28X7 92152 92152-1461 2
COLLAR 92152A 92152-1462 2
COLLAR,15.2X20X10 92152B 92152-1463 2
WASHER,14.5X24X1.6 92200 92200-1171 2
