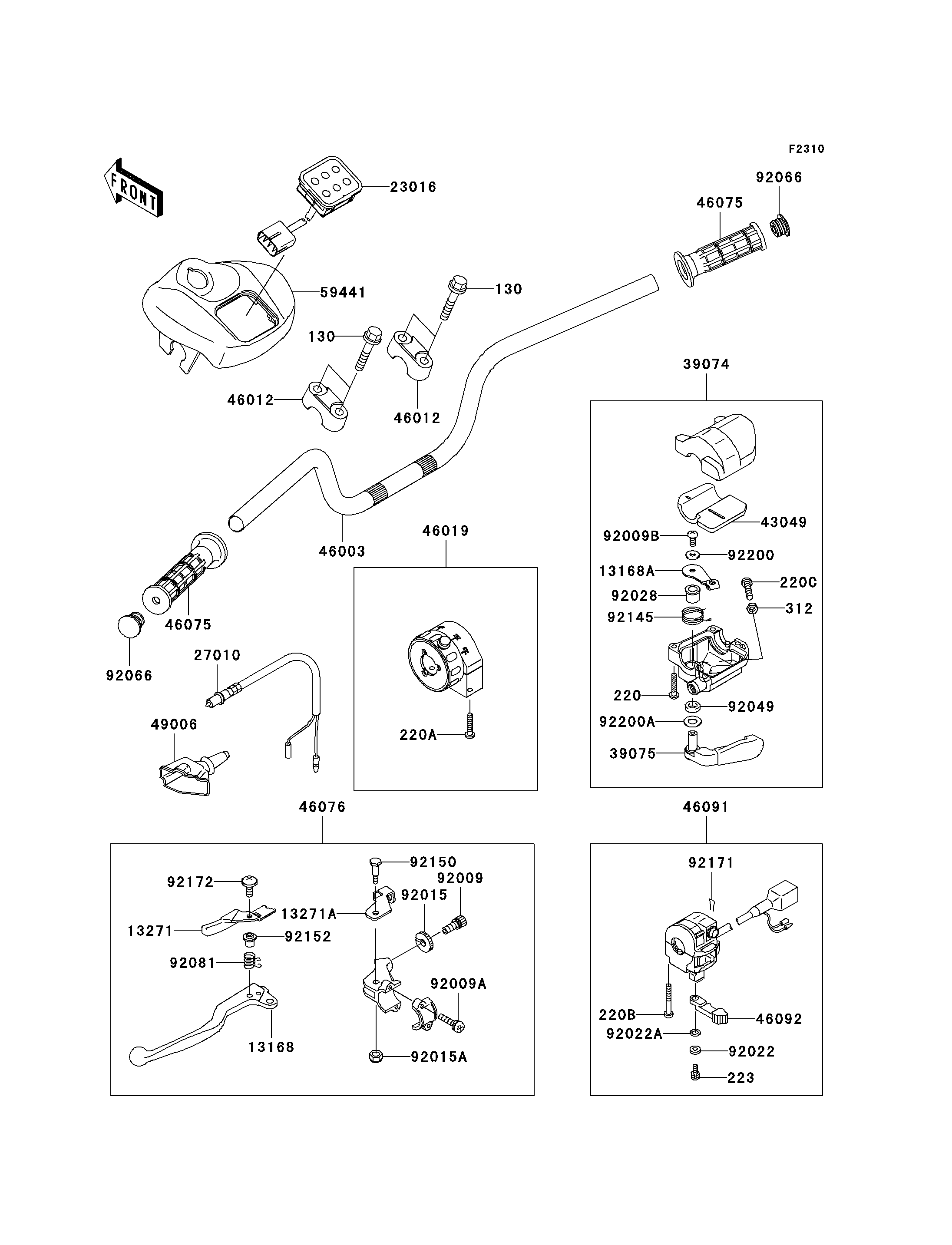

Parts Diagrams |
130
130
130
130
220
220
220A
220A
220B
220B
13168
13168
13168A
13168A
13271
13271
13271A
13271A
23016
23016
27010
27010
39074
39074
39075
39075
43049
43049
46003
46003
46012
46012
46012
46012
46019
46019
46075
46075
46075
46075
46076
46076
46091
46091
46092
46092
49006
49006
59441
59441
92009
92009
92009A
92009A
92009B
92009B
92015
92015
92015A
92015A
92022
92022
92022A
92022A
92028
92028
92049
92049
92066
92066
92066
92066
92081
92081
92145
92145
92150
92150
92152
92152
92171
92171
92172
92172
92200
92200
92200A
92200A
220C
220C
223
223
312
312
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED | 130 | 130P0860 | 4 | ||
SCREW-PAN-CROS | 220 | 220C0520 | 3 | ||
SCREW-PAN-CROS | 220A | 220C0525 | 2 | ||
SCREW-PAN-CROS | 220B | 220C0535 | 2 | ||
LEVER,LH | 13168 | 13168-0002 | 1 | ||
LEVER | 13168A | 13168-1715 | 1 | ||
PLATE,LEVER LOCK | 13271 | 13271-0011 | 1 | ||
PLATE,LOCK | 13271A | 13271-1259 | 1 | ||
LAMP-ASSY | 23016 | 23016-0002 | 1 | ||
SWITCH,BRAKE | 27010 | 27010-1294 | 1 | ||
LEVER-ASSY-THROTTLE | 39074 | 39074-0001 | 1 | ||
LEVER-THROTTLE | 39075 | 39075-1062 | 1 | ||
PACKING | 43049 | 43049-1088 | 1 | ||
HANDLE,G.GRAY | 46003 | 46003-0001-HN | 1 | ||
HOLDER-HANDLE | 46012 | 46012-1168 | 2 | ||
GRIP-ASSY,SHIFT CONTROL | 46019 | 46019-1122 | 1 | ||
GRIP | 46075 | 46075-1210 | 2 | ||
LEVER-ASSY-GRIP,LH | 46076 | 46076-1258 | 1 | ||
HOUSING-ASSY-CONTROL,LH | 46091 | 46091-1848 | 1 | ||
LEVER-GRIP,CHOKE | 46092 | 46092-1217 | 1 | ||
BOOT | 49006 | 49006-1261 | 1 | ||
COVER-HANDLE,BLACK | 59441 | 59441-1173-6D | 1 | ||
SCREW,CABLE ADJUST,8MM | 92009 | 92009-1435 | 1 | ||
SCREW,6X20 | 92009A | 92009-1841 | 2 | ||
SCREW | 92009B | 92009-1959 | 1 | ||
NUT,CABLE ADJUST LOCK,8MM | 92015 | 92015-1596 | 1 | ||
NUT | 92015A | 92015-1829 | 1 | ||
WASHER,5MM | 92022 | 92022-1837 | 1 | ||
WASHER,WAVE,5MM | 92022A | 92022-1838 | 1 | ||
BUSHING | 92028 | 92028-1986 | 1 | ||
SEAL-OIL | 92049 | 92049-1578 | 1 | ||
PLUG | 92066 | 92066-1550 | 2 | ||
SPRING,LOCK RETURN | 92081 | 92081-1358 | 1 | ||
SPRING | 92145 | 92145-1392 | 1 | ||
BOLT | 92150 | 92150-1420 | 1 | ||
COLLAR | 92152 | 92152-1176 | 1 | ||
CLAMP,CLIP | 92171 | 92171-1095 | 1 | ||
SCREW,5X20 | 92172 | 92172-0078 | 1 | ||
WASHER | 92200 | 92200-1558 | 1 | ||
WASHER | 92200A | 92200-1559 | 1 | ||
SCREW-PAN-CROS,6X25,BLACK | 220C | 220C0625 | 1 | ||
SCREW-PAN-WS-CROS | 223 | 223C0512 | 1 | ||
NUT-HEX,6MM,BLACK | 312 | 312C0600 | 1 |
