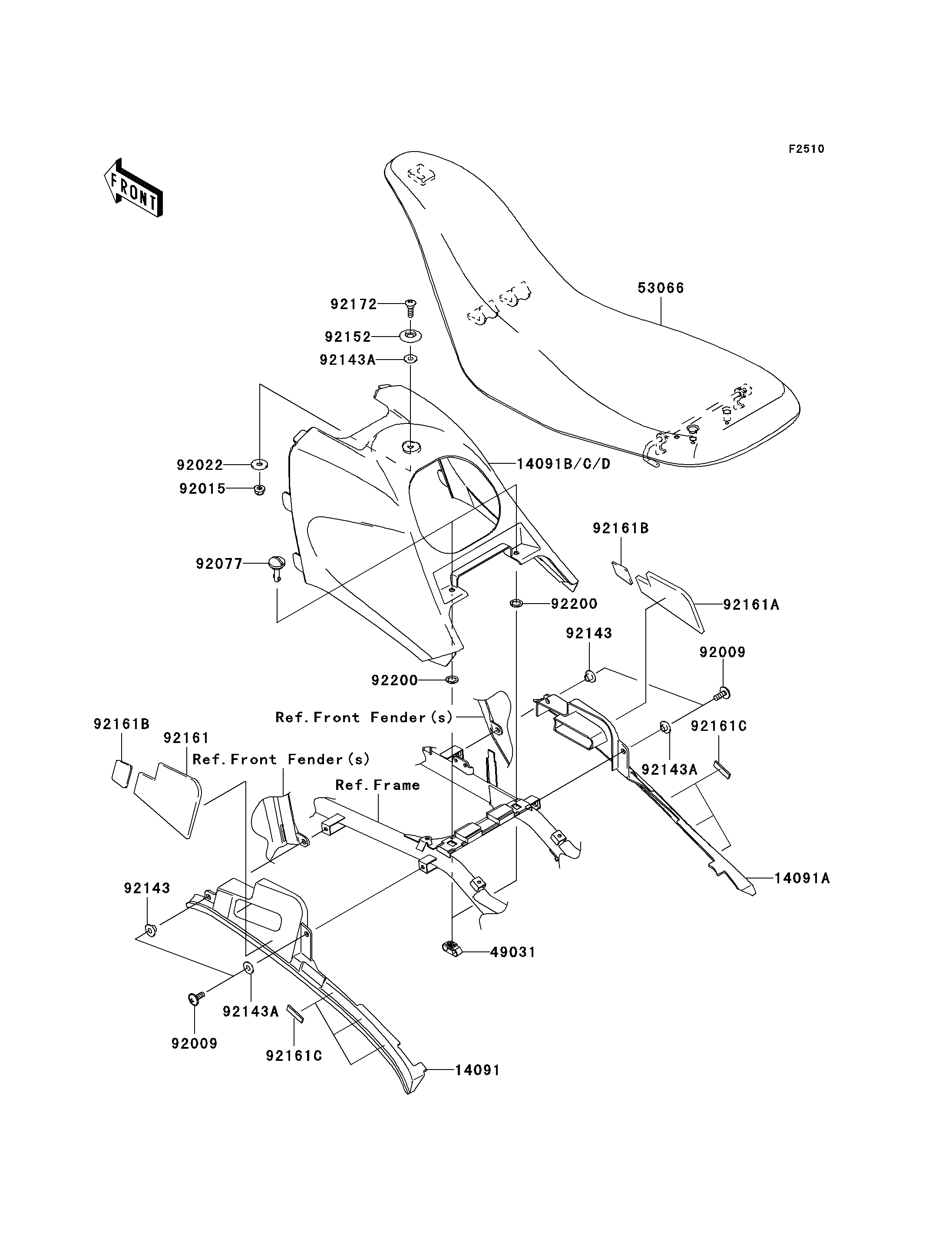

Parts Diagrams |
14091
14091A
14091B
14091C
49031
53066
92009
92009
92015
92022
92077
92143
92143
92143A
92143A
92143A
92152
92161
92161A
92161B
92161B
92161C
92161C
92172
92200
92200
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
COVER,SIDE,LH,F.BLACK | 14091 | 14091-0089-6Z | 1 | ||
COVER,SIDE,RH,F.BLACK | 14091A | 14091-0090-6Z | 1 | ||
COVER,AIR CLEANER,I.M.CARBON | 14091B | 14091-0205-380 | 1 | ||
COVER,AIR CLEANER,I.L.RED | 14091C | 14091-0205-383 | 1 | ||
LATCH | 49031 | 49031-1060 | 2 | ||
SEAT-ASSY,BLACK | 53066 | 53066-0003-MA | 1 | ||
SCREW,6X16 | 92009 | 92009-1621 | 4 | ||
NUT,LOCK,FLANGED,6MM | 92015 | 92015-1603 | 1 | ||
WASHER,6.5X20X1.6 | 92022 | 92022-125 | 1 | ||
KNOB | 92077 | 92077-1129 | 2 | ||
COLLAR | 92143 | 92143-1057 | 2 | ||
COLLAR | 92143A | 92143-1087 | 3 | ||
COLLAR | 92152 | 92152-1346 | 1 | ||
DAMPER,SIDE COVER,LH | 92161 | 92161-0059 | 1 | ||
DAMPER,SIDE COVER,RH | 92161A | 92161-0060 | 1 | ||
DAMPER,SIDE COVER | 92161B | 92161-0061 | 2 | ||
DAMPER | 92161C | 92161-0090 | 6 | ||
SCREW,6X19.5 | 92172 | 92172-0062 | 1 | ||
WASHER | 92200 | 92200-1578 | 2 |
COVER,SIDE,LH,F.BLACK | |
REF # | 14091 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,SIDE,RH,F.BLACK | |
REF # | 14091A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,AIR CLEANER,I.M.CARBON | |
REF # | 14091B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,AIR CLEANER,I.L.RED | |
REF # | 14091C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LATCH | |
REF # | 49031 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SEAT-ASSY,BLACK | |
REF # | 53066 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,6X16 | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
NUT,LOCK,FLANGED,6MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,6.5X20X1.6 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
KNOB | |
REF # | 92077 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR | |
REF # | 92143 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR | |
REF # | 92143A |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
COLLAR | |
REF # | 92152 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER,SIDE COVER,LH | |
REF # | 92161 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER,SIDE COVER,RH | |
REF # | 92161A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER,SIDE COVER | |
REF # | 92161B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92161C |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
SCREW,6X19.5 | |
REF # | 92172 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER | |
REF # | 92200 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
