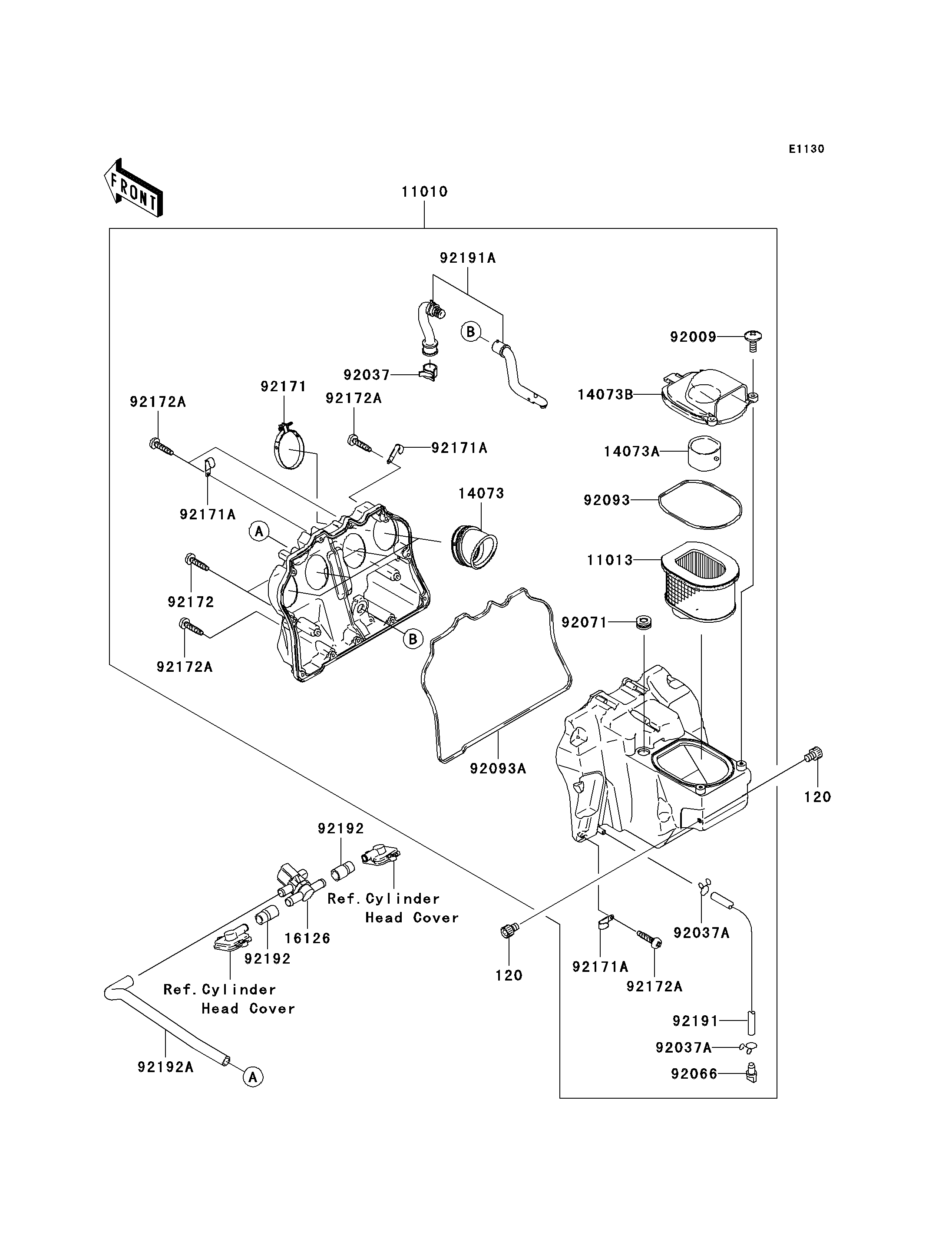

2007 Z1000 - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
120
120
11010
11013
14073
14073A
14073B
16126
92009
92037
92037A
92037A
92066
92071
92093
92093A
92171
92171A
92171A
92171A
92172
92172A
92172A
92172A
92172A
92191
92191A
92192
92192
92192A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X8 120 120CA0608 2
FILTER-ASSY-AIR 11010 11010-0126 1
ELEMENT-AIR FILTER 11013 11013-1302 1
DUCT,FUNNEL 14073 14073-0113 4
DUCT,INTAKE 14073A 14073-0157 1
DUCT,INTAKE TOP 14073B 14073-0164 1
VALVE,AIR SWITCHING 16126 16126-1437 1
SCREW,6X16 92009 92009-1621 2
CLAMP,HOSE CLIP 92037 92037-1460 1
CLAMP,TUBE 92037A 92037-147 2
PLUG,DRAIN 92066 92066-1211 1
GROMMET 92071 92071-2140 1
SEAL 92093 92093-0002 1
SEAL 92093A 92093-0063 1
CLAMP,OVAL,66MM 92171 92171-0815 4
CLAMP 92171A 92171-1539 3
SCREW,TAPPING,5X20 92172 92172-0009 2
SCREW-PAN-CROS,5X25 92172A 92172-0056 11
TUBE,7X10X320 92191 92191-0019 1
TUBE 92191A 92191-1783 1
TUBE,HEAD-ASV 92192 92192-0033 2
TUBE,ASV-A/C 92192A 92192-0321 1
