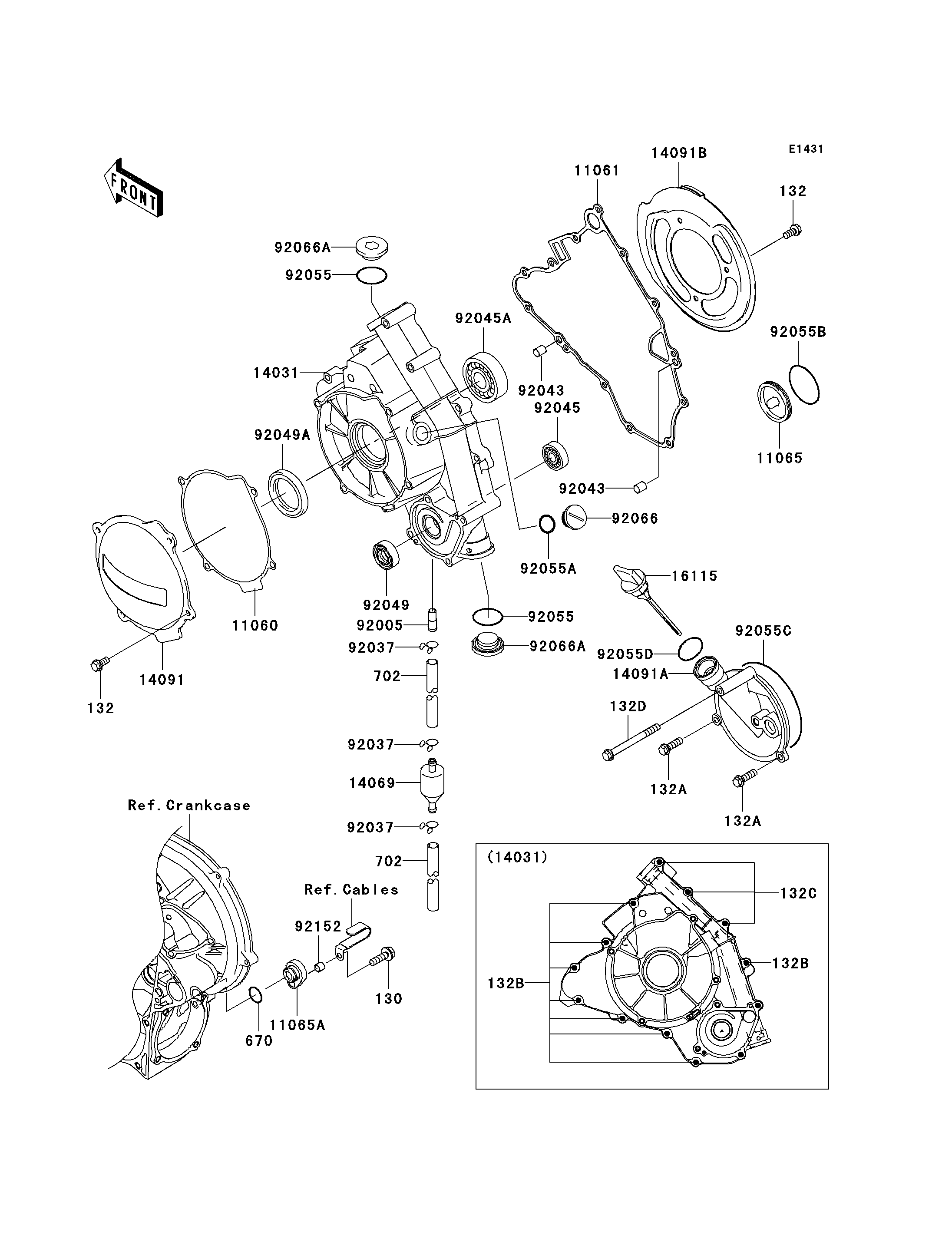

2006 KFX700 - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
130
132
132
132A
132A
132B
132B
132C
132D
670
702
702
11060
11061
11065
11065A
14031
14069
14091
14091A
14091B
16115
92005
92037
92037
92037
92043
92043
92045
92045A
92049
92049A
92055
92055
92055A
92055B
92055C
92055D
92066
92066A
92066A
92152
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X20 130 130Z0620 1
BOLT-FLANGED-SMALL,6X12 132 132Y0612 7
BOLT-FLANGED-SMALL,6X20 132A 132Y0620 2
BOLT-FLANGED-SMALL,6X30 132B 132Y0630 8
BOLT-FLANGED-SMALL,6X55 132C 132Y0655 3
BOLT-FLANGED-SMALL,6X65 132D 132Y0665 1
O RING,14MM 670 670D2014 1
TUBE-RUBBER,7X10X35 702 702A07035 2
GASKET,BLANK 11060 11060-1717 1
GASKET 11061 11061-1119 1
CAP 11065 11065-1151 1
CAP,OIL COVER 11065A 11065-1252 1
COVER-GENERATOR 14031 14031-0030 1
BREATHER 14069 14069-1051 1
COVER,GENERATOR COVER 14091 14091-1538 1
COVER,OIL 14091A 14091-1543 1
COVER,BELT CONVERTER 14091B 14091-1571 1
CAP-OIL FILLER 16115 16115-0001 1
FITTING 92005 92005-1369 1
CLAMP,TUBE 92037 92037-147 3
PIN,6.2X8X14 92043 92043-1263 2
BEARING-BALL,6901 92045 92045-1246 1
BEARING-BALL 92045A 92045-1403 1
SEAL-OIL,SC 12X22X5 92049 92049-1228 1
SEAL-OIL,HTC 28X45X7 92049A 92049-1576 1
RING-O,25.7X2.4 92055 92055-1136 2
RING-O,20X2 92055A 92055-1146 1
RING-O,44.7X2.4 92055B 92055-1279 1
RING-O,99.5X2.0 92055C 92055-1632 1
RING-O,20X3 92055D 92055-2185 1
PLUG,COVER 92066 92066-0011 1
PLUG,25X8 92066A 92066-0012 2
COLLAR 92152 92152-1332 1
