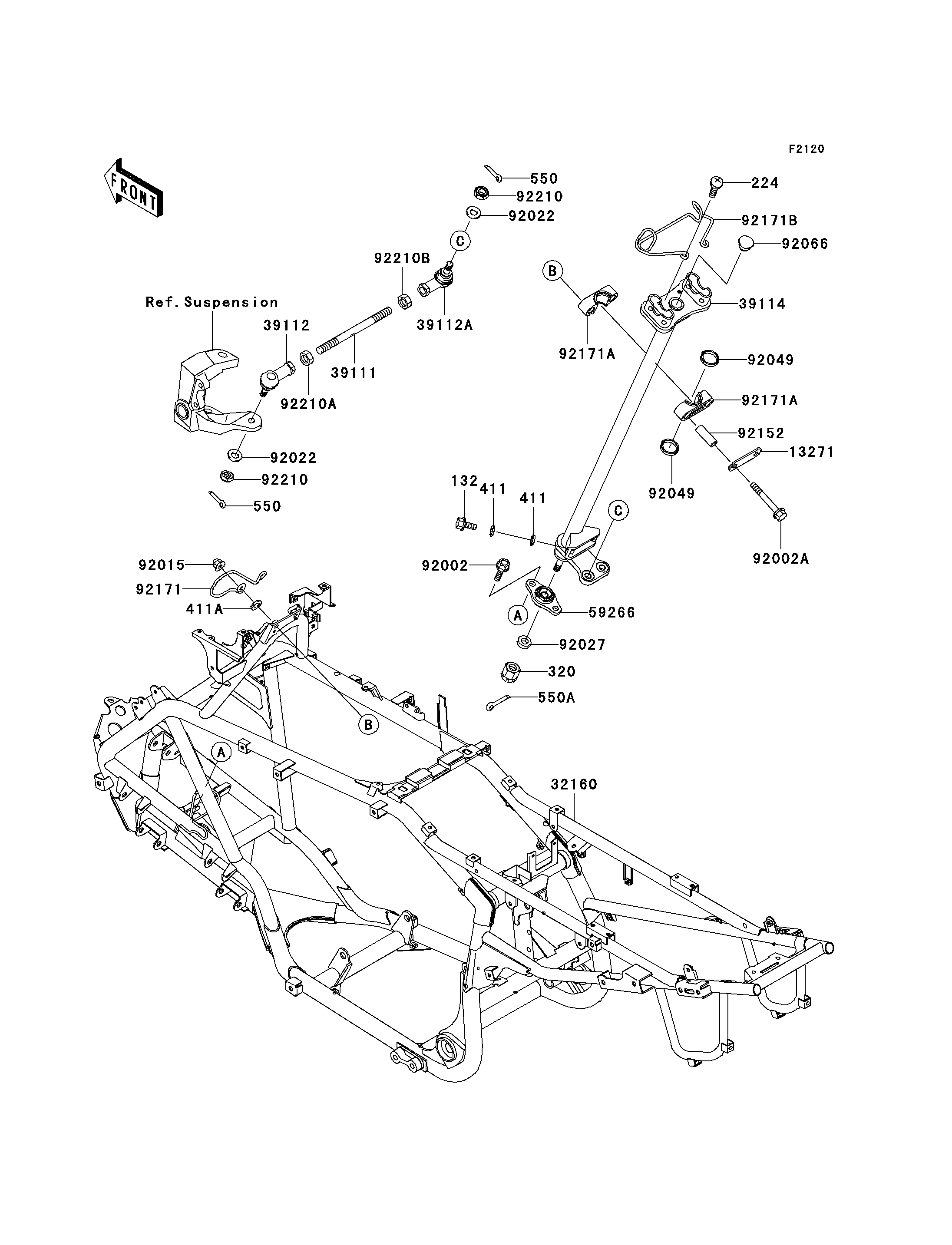

2006 KFX700 - Frame

DOWNLOAD PDF
SELECT A NEW PART
132
224
320
411
411
411A
550
550
550A
13271
32160
39111
39112
39112A
39114
59266
92002
92002A
92015
92022
92022
92027
92049
92049
92066
92152
92171
92171A
92171A
92171B
92210
92210
92210A
92210B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X16 132 132J0616 2
SCREW-PAN-WP-CROS,6X14 224 224C0614 2
NUT-CASTLE 320 320H1000 1
WASHER-PLAIN,6MM 411 411B0600 4
WASHER-PLAIN,8MM,BLACK 411A 411F0800 2
PIN-COTTER,2.0X15 550 550D2015 4
PIN-COTTER,2.5X18 550A 550D2518 1
PLATE 13271 13271-1887 1
FRAME-COMP,G.GRAY 32160 32160-0028-HN 1
ROD-TIE 39111 39111-0010 2
RODEND-TIE,RIGHT HANDED 39112 39112-1087 2
RODEND-TIE,LEFT HANDED 39112A 39112-1088 2
SHAFT-COMP-STRG 39114 39114-0001 1
JOINT-BALL 59266 59266-0001 1
BOLT,8X20 92002 92002-1250 2
BOLT,FLANGED,8X70 92002A 92002-1349 2
NUT,CAP,8MM,BLACK 92015 92015-1174 2
WASHER,10.2X20X1.5 92022 92022-3742 4
COLLAR,10X21.3X7 92027 92027-1817 1
SEAL-OIL,SR25.4X31X3.8 92049 92049-1611 2
PLUG 92066 92066-1220 1
COLLAR,9.1X13.9X39.2 92152 92152-1456 2
CLAMP,CABLE 92171 92171-0066 1
CLAMP,STEERING SHAFT 92171A 92171-1542 2
CLAMP,CABLE&HARNESS 92171B 92171-1543 1
NUT,LOCK,10MM 92210 92210-1184 4
NUT,RIGHT HANDED 92210A 92210-1385 2
NUT,LEFT HANDED 92210B 92210-1386 2
