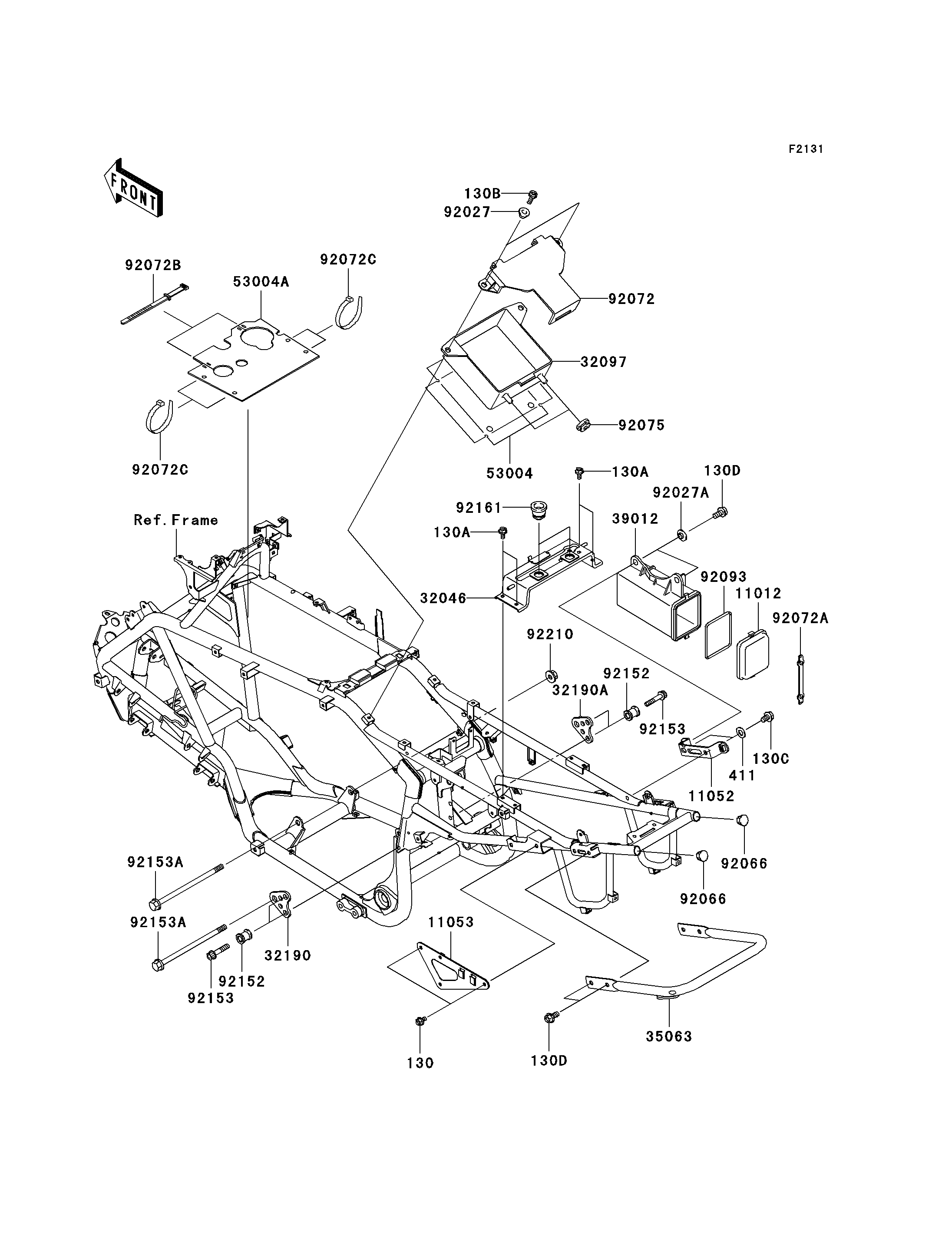

2006 KFX700 - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
130
130A
130A
130B
130C
130D
130D
411
11012
11052
11053
32046
32097
32190
32190A
35063
39012
53004
53004A
92027
92027A
92066
92066
92072
92072A
92072B
92072C
92072C
92075
92093
92152
92152
92153
92153
92153A
92153A
92161
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X10 130 130J0610 2
BOLT-FLANGED,6X12 130A 130J0612 4
BOLT-FLANGED,6X16 130B 130J0616 2
BOLT-FLANGED,8X12 130C 130J0812 2
BOLT-FLANGED,8X16 130D 130J0816 6
WASHER-PLAIN,8MM,BLACK 411 411F0800 2
CAP,TOOL CASE 11012 11012-1606 1
BRACKET,TOOL CASE JOINT 11052 11052-1930 1
BRACKET,REGULATER,LH 11053 11053-0301 1
BRACKET-SEAT 32046 32046-0006 1
CASE-BATTERY 32097 32097-0002 1
BRACKET-ENGINE,RR,UPP,LH,GRAY 32190 32190-1315-HN 1
BRACKET-ENGINE,RR,UPP,RH,GRAY 32190A 32190-1316-HN 1
STAY,GLOVE BAR,G.GRAY 35063 35063-0033-HN 1
CASE-STORAGE 39012 39012-1055 1
MAT,BATTERY CASE 53004 53004-0002 1
MAT,WATER PROTECT 53004A 53004-0009 1
COLLAR 92027 92027-1166 2
COLLAR 92027A 92027-1354 2
PLUG 92066 92066-1220 2
BAND,BATTERY 92072 92072-0006 1
BAND,TOOL CASE CAP 92072A 92072-0032 1
BAND,L=123 92072B 92072-030 2
BAND,L=188 92072C 92072-1239 4
DAMPER 92075 92075-1787 2
SEAL,TOOL CASE CAP 92093 92093-1247 1
COLLAR,L=25 92152 92152-0061 4
BOLT,SOCKET,10X45 92153 92153-0408 4
BOLT,FLANGED,12X190 92153A 92153-1272 2
DAMPER 92161 92161-0048 2
NUT,LOCK,FLANGED,12MM 92210 92210-1150 1
