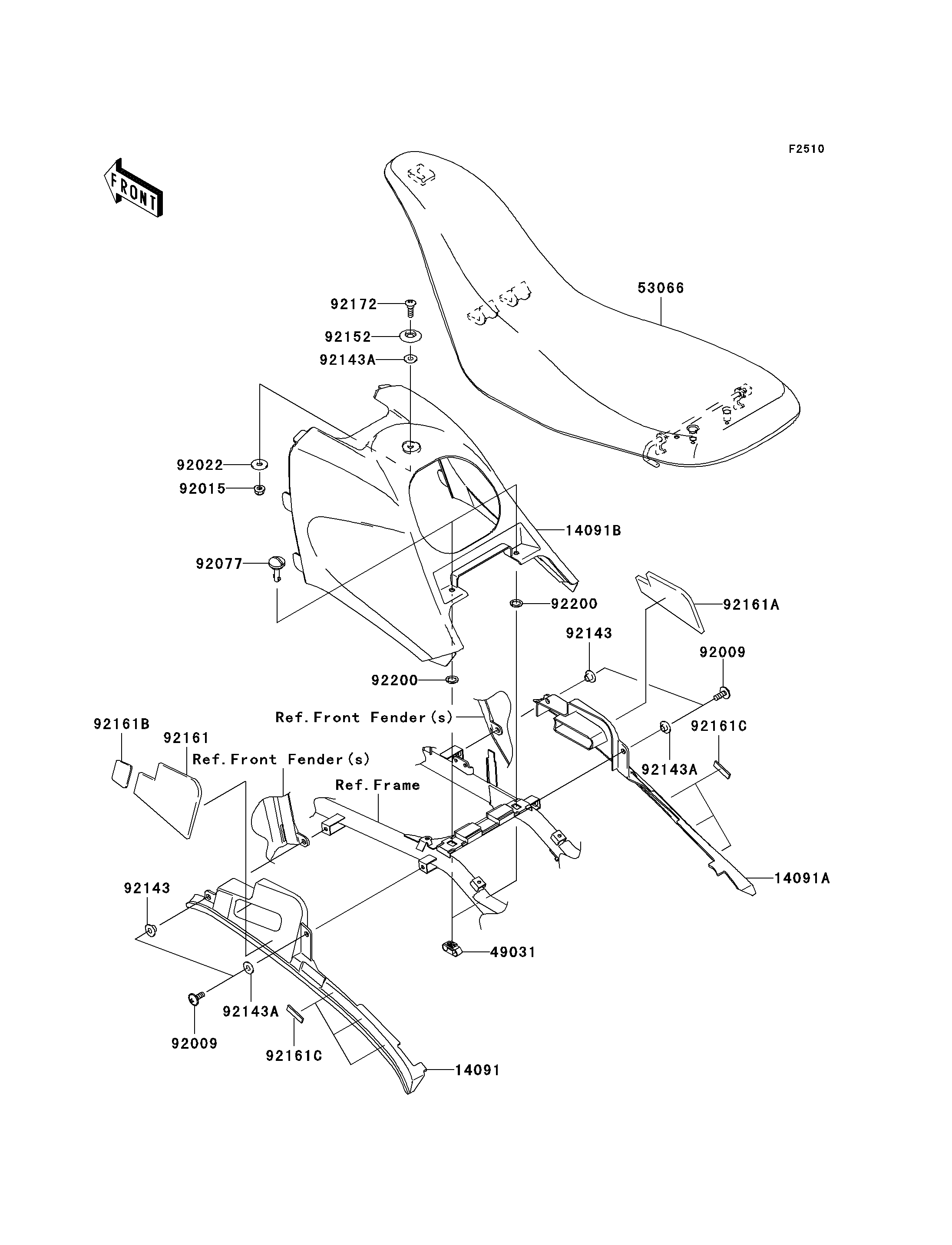

2006 KFX700 - Seat

DOWNLOAD PDF
SELECT A NEW PART
14091
14091A
14091B
49031
53066
92009
92009
92015
92022
92077
92143
92143
92143A
92143A
92143A
92152
92161
92161A
92161B
92161C
92161C
92172
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,SIDE,LH,F.BLACK 14091 14091-0089-6Z 1
COVER,SIDE,RH,F.BLACK 14091A 14091-0090-6Z 1
COVER,AIR CLEANER,G.SILVER 14091B 14091-0482-824 1
LATCH 49031 49031-1060 2
SEAT-ASSY,BLACK 53066 53066-0114-MA 1
SCREW,6X16 92009 92009-1621 4
NUT,LOCK,FLANGED,6MM 92015 92015-1603 1
WASHER,6.5X20X1.6 92022 92022-125 1
KNOB 92077 92077-1129 2
COLLAR 92143 92143-1057 2
COLLAR 92143A 92143-1087 3
COLLAR 92152 92152-1346 1
DAMPER,SIDE COVER,LH 92161 92161-0059 1
DAMPER,SIDE COVER,RH 92161A 92161-0060 1
DAMPER 92161B 92161-0061 2
DAMPER 92161C 92161-0090 6
SCREW,6X19.5 92172 92172-0062 1
WASHER 92200 92200-1578 2
