Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

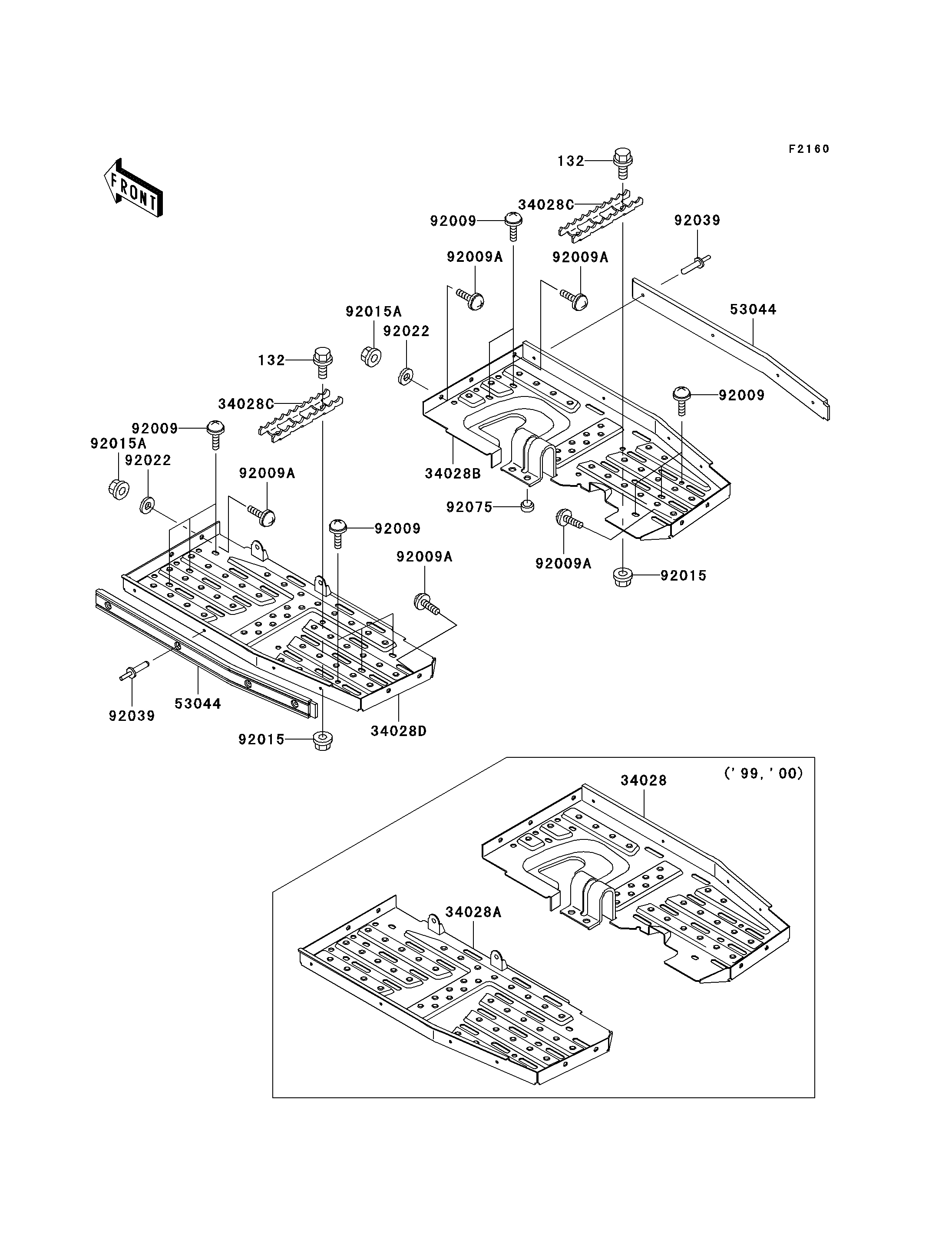

Parts Diagrams |
132
132
34028B
34028C
34028C
34028D
53044
53044
92009
92009
92009
92009
92009A
92009A
92009A
92009A
92009A
92015
92015
92015A
92015A
92022
92022
92039
92039
92075
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED-SMALL,6X14 | 132 | 132J0614 | 4 | ||
| STEP,FOOT BOARD,RH | 34028B | 34028-1503 | 1 | ||
| STEP | 34028C | 34028-1506 | 2 | ||
| STEP,FOOT BOARD,LH | 34028D | 34028-1507 | 1 | ||
| TRIM,FOOT BOARD | 53044 | 53044-1293 | 2 | ||
| SCREW,TAPPING,6X16 | 92009 | 92009-1166 | 11 | ||
| SCREW,6X16 | 92009A | 92009-1621 | 10 | ||
| NUT,FLANGED,6MM | 92015 | 92015-1367 | 4 | ||
| NUT,LOCK,FLANGED,6MM | 92015A | 92015-1675 | 2 | ||
| WASHER,6.5X16X1.0 | 92022 | 92022-1093 | 2 | ||
| RIVET | 92039 | 92039-1150 | 8 | ||
| DAMPER | 92075 | 92075-1598 | 2 |
| BOLT-FLANGED-SMALL,6X14 | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| STEP,FOOT BOARD,RH | |
| REF # | 34028B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STEP | |
| REF # | 34028C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| STEP,FOOT BOARD,LH | |
| REF # | 34028D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TRIM,FOOT BOARD | |
| REF # | 53044 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,6X16 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 11 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X16 | |
| REF # | 92009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 10 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,FLANGED,6MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.5X16X1.0 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RIVET | |
| REF # | 92039 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
