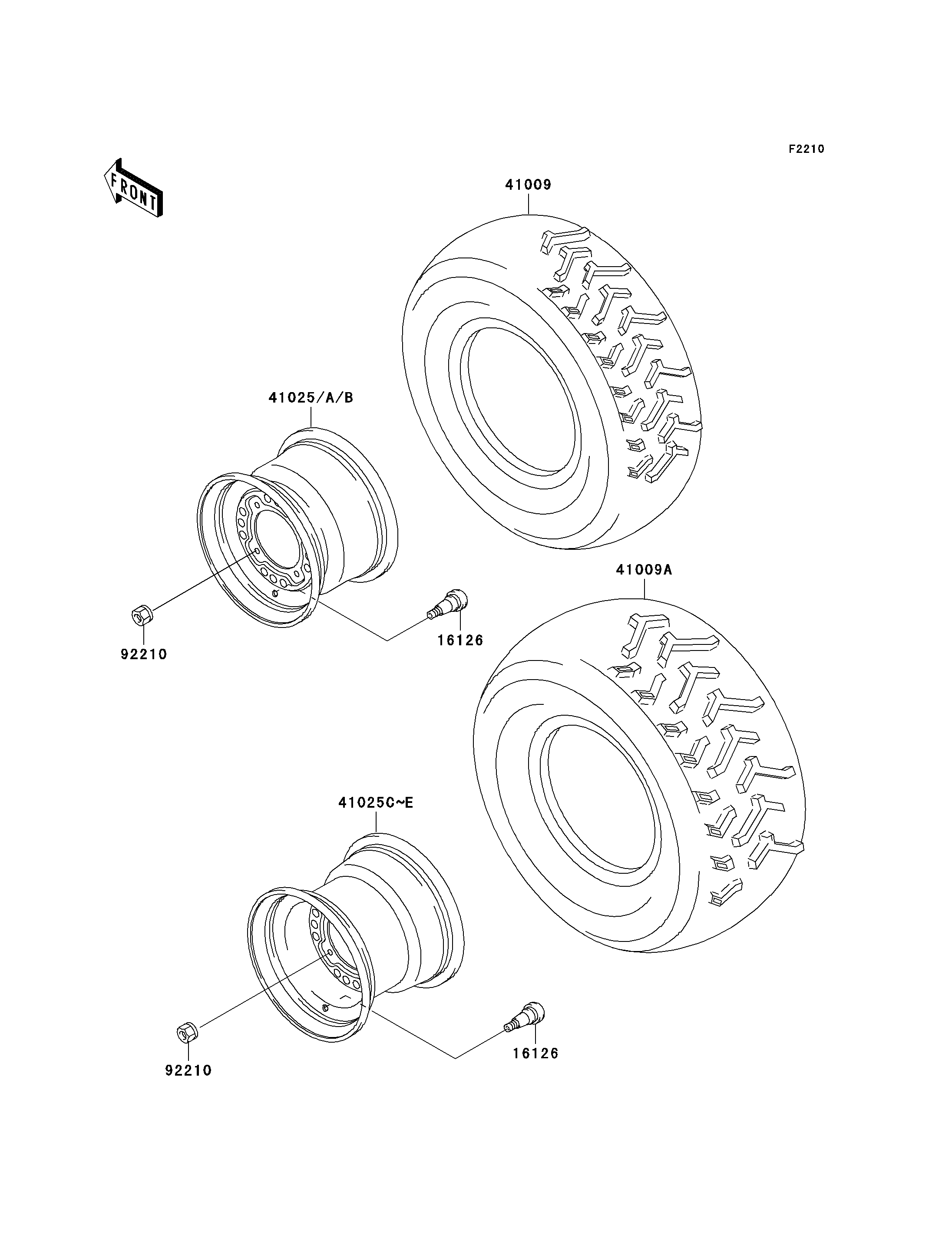

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
VALVE 16126 16126-4001 4
TIRE,FR,AT25X8-12,KT121A(D) 41009 41009-1117 2
TIRE,RR,AT25X11-10,KT125(D) 41009A 41009-1118 2
RIM,FR,12X6.0,P.C.GRAY 41025 41025-1313-CQ 2
RIM,FR,12X6.0,SILVER 41025B 41025-1313-5A 2
RIM,RR,10X8.5,P.C.GRAY 41025C 41025-1314-CQ 2
RIM,RR,10X8.5,SILVER 41025E 41025-1314-5A 2
NUT,LOCK,10MM 92210 92210-1204 16
