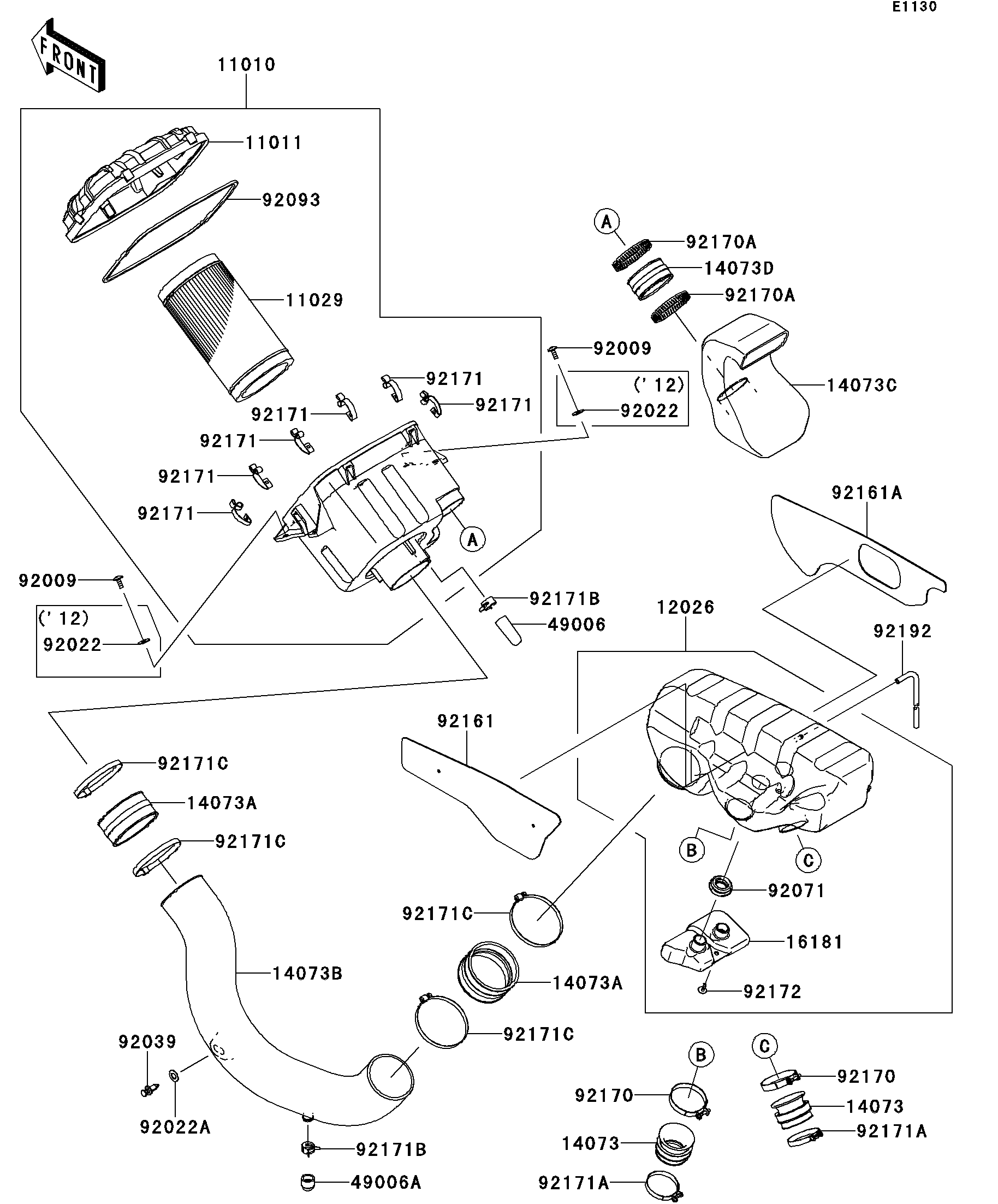

2013 TERYX4™ 750 4x4 (Canadian) - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
11010
11011
11029
12026
14073
14073
14073A
14073A
14073B
14073C
14073D
16181
49006
49006A
92009
92009
92022A
92039
92071
92093
92161
92161A
92170
92170
92170A
92170A
92171
92171
92171
92171
92171
92171
92171A
92171A
92171B
92171B
92171C
92171C
92171C
92171C
92172
92192
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FILTER-ASSY-AIR 11010 11010-0744 1
CASE-AIR FILTER 11011 11011-0718 1
ELEMENT-ASSY-AIR FILTER 11029 11029-0724 1
CHAMBER 12026 12026-0703 1
DUCT 14073 14073-0160 2
DUCT,JOINT,A/C SIDE 14073A 14073-0258 2
DUCT,FILTER-CHAMBER 14073B 14073-0703 1
DUCT,INTAKE 14073C 14073-0729 1
DUCT,JOINT 14073D 14073-1775 1
TANK-RESONATOR 16181 16181-0056 1
BOOT 49006 49006-1351 1
BOOT,DRAIN 49006A 49006-3718 1
SCREW,6X16 92009 92009-1621 4
WASHER,10.5X20X1 92022A 92022-239 1
RIVET 92039 92039-1229 1
GROMMET 92071 92071-1259 2
SEAL 92093 92093-0585 1
DAMPER,CHAMBER,LH 92161 92161-1399 1
DAMPER,CHAMBER,RH 92161A 92161-1400 1
CLAMP 92170 92170-1448 2
CLAMP 92170A 92170-1764 2
CLAMP 92171 92171-0225 6
CLAMP 92171A 92171-0722 2
CLAMP 92171B 92171-1277 2
CLAMP 92171C 92171-3716 4
SCREW 92172 92172-0297 1
TUBE,4X8X320 92192 92192-0953 1
