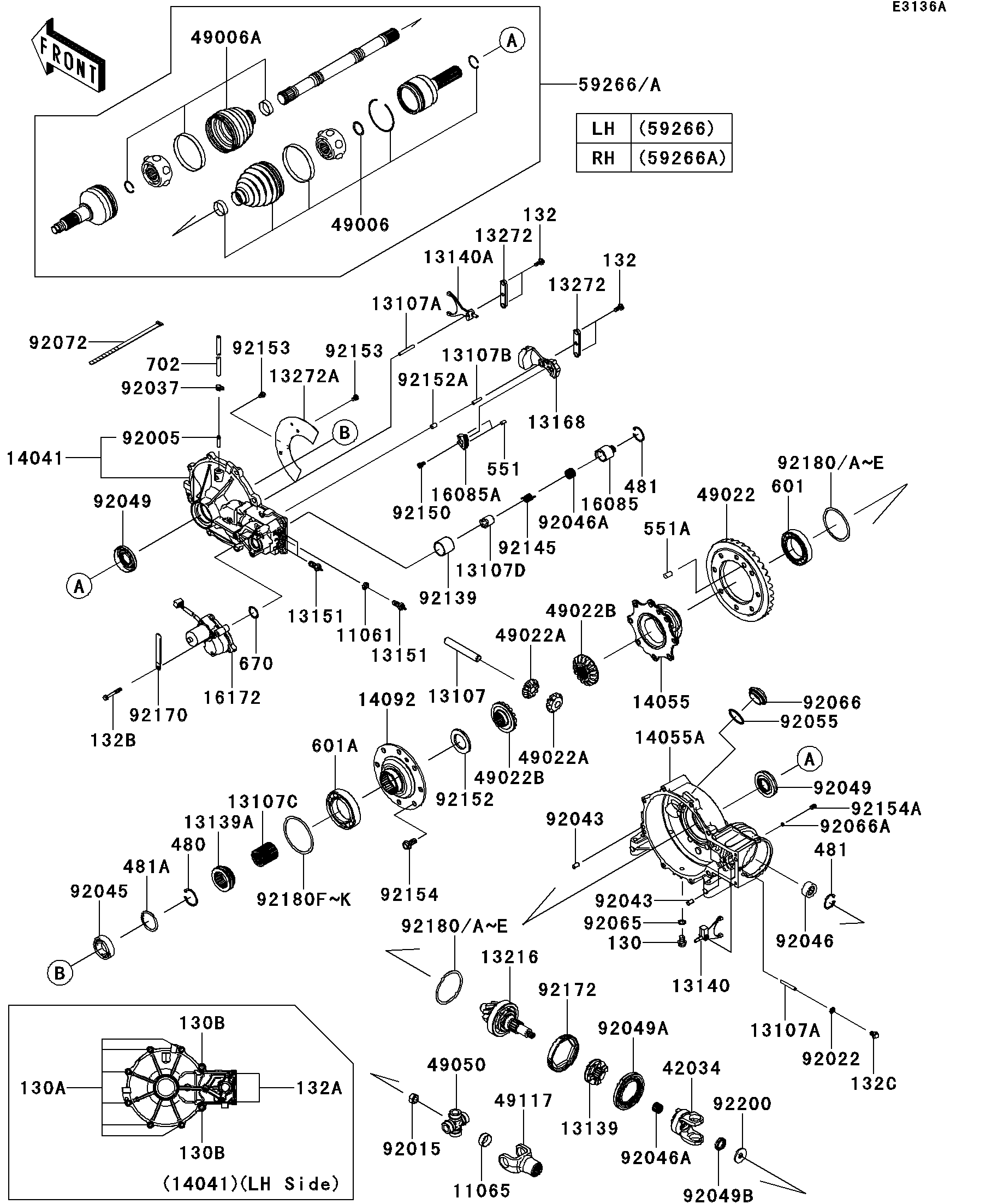

2013 TERYX4™ 750 4x4 (Canadian) - Drive Shaft-Front(ADF)

DOWNLOAD PDF
SELECT A NEW PART
11061
11061
11061
11065
11065
11065
13107
13107
13107
13107A
13107A
13107A
13107A
13107A
13107A
13107B
13107B
13107B
13107C
13107C
13107C
13107D
13107D
13107D
13139
13139
13139
13139A
13139A
13139A
13140
13140
13140
13140A
13140A
13140A
13151
13151
13151
13151
13151
13151
13168
13168
13168
13216
13216
13216
13272
13272
13272
13272
13272
13272
13272A
13272A
13272A
14041
14041
14041
14055
14055
14055
14055A
14055A
14055A
14092
14092
14092
16085
16085
16085
16085A
16085A
16085A
16172
16172
16172
42034
42034
42034
49006
49006
49006
49006A
49006A
49006A
49022
49022
49022
49022A
49022A
49022A
49022A
49022A
49022A
49022B
49022B
49022B
49022B
49022B
49022B
49050
49050
49050
49117
49117
49117
59266
59266
59266
59266A
59266A
59266A
92005
92005
92005
92015
92015
92015
92022
92022
92022
92037
92037
92037
92043
92043
92043
92043
92043
92043
92045
92045
92045
92046
92046
92046
130
130
130
130A
130A
130A
130B
130B
130B
130B
130B
130B
132
132
132
132
132
132
132A
132A
132A
132B
132B
132B
132C
132C
132C
480
480
480
92046A
92046A
92046A
92046A
92046A
92046A
92049
92049
92049
92049
92049
92049
92049A
92049A
92049A
92049B
92049B
92049B
92055
92055
92055
92065
92065
92065
92066
92066
92066
92066A
92066A
92066A
92072
92072
92072
92139
92139
92139
92145
92145
92145
92150
92150
92150
92152
92152
92152
92152A
92152A
92152A
92153
92153
92153
92153
92153
92153
92154
92154
92154
92154A
92154A
92154A
92170
92170
92170
92172
92172
92172
92180
92180
92180
92180
92180
92180
92180A
92180A
92180A
92180A
92180A
92180A
92180B
92180B
92180B
92180B
92180B
92180B
92180C
92180C
92180C
92180C
92180C
92180C
92180D
92180D
92180D
92180D
92180D
92180D
92180E
92180E
92180E
92180E
92180E
92180E
92180F
92180F
92180F
92180G
92180G
92180G
92180H
92180H
92180H
92180I
92180I
92180I
92180J
92180J
92180J
92180K
92180K
92180K
92200
92200
92200
481
481
481
481
481
481
481A
481A
481A
551
551
551
551A
551A
551A
601
601
601
601A
601A
601A
670
670
670
702
702
702
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,10.5X16X3 11061 11061-0805 1
CAP 11065 11065-0073 1
SHAFT,CROSS 13107 13107-0245 1
SHAFT,6X43.7 13107A 13107-0246 2
SHAFT,6X25.1 13107B 13107-0729 1
SHAFT,29X38X43.5 13107C 13107-0746 1
SHAFT 13107D 13107-0747 1
SHIFTER 13139 13139-0017 1
SHIFTER,DIFFERENTIAL LOCK 13139A 13139-0627 1
FORK-SHIFT 13140 13140-0069 1
FORK-SHIFT 13140A 13140-0070 1
SWITCH-COMP 13151 13151-1086 3
LEVER 13168 13168-0731 1
GEAR-COMP,BEVEL,8T 13216 13216-0873 1
PLATE 13272 13272-0985 2
PLATE 13272A 13272-0986 1
COVER-COMP,LH 14041 14041-0554 1
CASE-GEAR,CROSS 14055 14055-0052 1
CASE-GEAR,RH 14055A 14055-0053 1
COVER,CROSS CASE 14092 14092-0269 1
GEAR,13T 16085 16085-0604 1
GEAR,65T 16085A 16085-0605 1
ACTUATOR 16172 16172-0025 1
COUPLING 42034 42034-0716 1
BOOT,INSIDE 49006 49006-0559 2
BOOT,OUTSIDE 49006A 49006-0563 2
GEAR-BEVEL,35T 49022 49022-0067 1
GEAR-BEVEL,10T 49022A 49022-0068 2
GEAR-BEVEL,16T 49022B 49022-0069 2
SPIDER 49050 49050-0023 1
YOKE 49117 49117-0047 1
JOINT-BALL,LH 59266 59266-0707 1
JOINT-BALL,RH 59266A 59266-0708 1
FITTING 92005 92005-1142 1
NUT,LOCK,12MM,BLACK 92015 92015-1190 1
WASHER,8.2X14X1.0 92022 92022-1488 1
CLAMP,TUBE 92037 92037-1461 1
PIN,6.2X8X14 92043 92043-1263 2
BEARING-BALL,60/28 92045 92045-1176 1
BEARING-NEEDLE,AJ501907 92046 92046-0025 1
BOLT-FLANGED,10X14 130 130BA1014 1
BOLT-FLANGED,8X25 130A 130CA0825 6
BOLT-FLANGED,10X30 130B 130CA1030 2
BOLT-FLANGED-SMALL,6X16 132 132BA0616 4
BOLT-FLANGED-SMALL,6X25 132A 132BA0625 2
BOLT-FLANGED-SMALL,6X45 132B 132BA0645 3
BOLT-FLANGED-SMALL,8X10 132C 132BA0810 1
CIRCLIP-TYPE-C,38MM 480 480J3800 1
BEARING-NEEDLE 92046A 92046-1234 2
SEAL-OIL,28X60X7 92049 92049-0089 2
SEAL-OIL,55X89X9 92049A 92049-0166 1
SEAL-OIL,20X28X5 92049B 92049-0736 1
RING-O,35.8MM 92055 92055-1281 1
GASKET,10.5X16X1 92065 92065-058 1
PLUG,36X7.5 92066 92066-0744 1
PLUG,6.2X3 92066A 92066-1272 1
BAND,L=218 92072 92072-032 1
BUSHING,29X33X30 92139 92139-0780 1
SPRING 92145 92145-0907 1
BOLT,SOCKET,6X10 92150 92150-1650 1
COLLAR,35X57.5X4.7 92152 92152-1543 1
COLLAR,6X8X12.1 92152A 92152-1600 1
BOLT,FLANGED-SMALL,6X8 92153 92153-0964 2
BOLT,FLANGED,10X23 92154 92154-0550 8
BOLT,SET,SOCKET,8X14 92154A 92154-1070 1
CLAMP 92170 92170-1925 1
SCREW,SET,85X12.5 92172 92172-0810 1
SHIM,70X80X0.15 92180 92180-0301 AR
SHIM,70X80X0.2 92180A 92180-0302 AR
SHIM,70X80X0.5 92180B 92180-0303 AR
SHIM,70X80X0.8 92180C 92180-0304 AR
SHIM,70X80X1.0 92180D 92180-0305 AR
SHIM,70X80X1.2 92180E 92180-0306 AR
SHIM,80X90X0.15 92180F 92180-0307 AR
SHIM,80X90X0.2 92180G 92180-0308 AR
SHIM,80X90X0.5 92180H 92180-0309 AR
SHIM,80X90X0.8 92180I 92180-0310 AR
SHIM,80X90X1.0 92180J 92180-0311 AR
SHIM,80X90X1.2 92180K 92180-0312 AR
WASHER,12X35.5X2.5 92200 92200-0831 1
CIRCLIP-TYPE-C,32MM 481 481J3200 2
CIRCLIP 481A 481J5200 1
PIN-DOWEL 551 551A0410 2
PIN-DOWEL 551A 551A1016 1
BEARING-BALL 601 601B6010 1
BEARING-BALL 601A 601B6011 1
O RING 670 670D3022 1
TUBE-RUBBER,5X8X1375 702 702A051375 1
