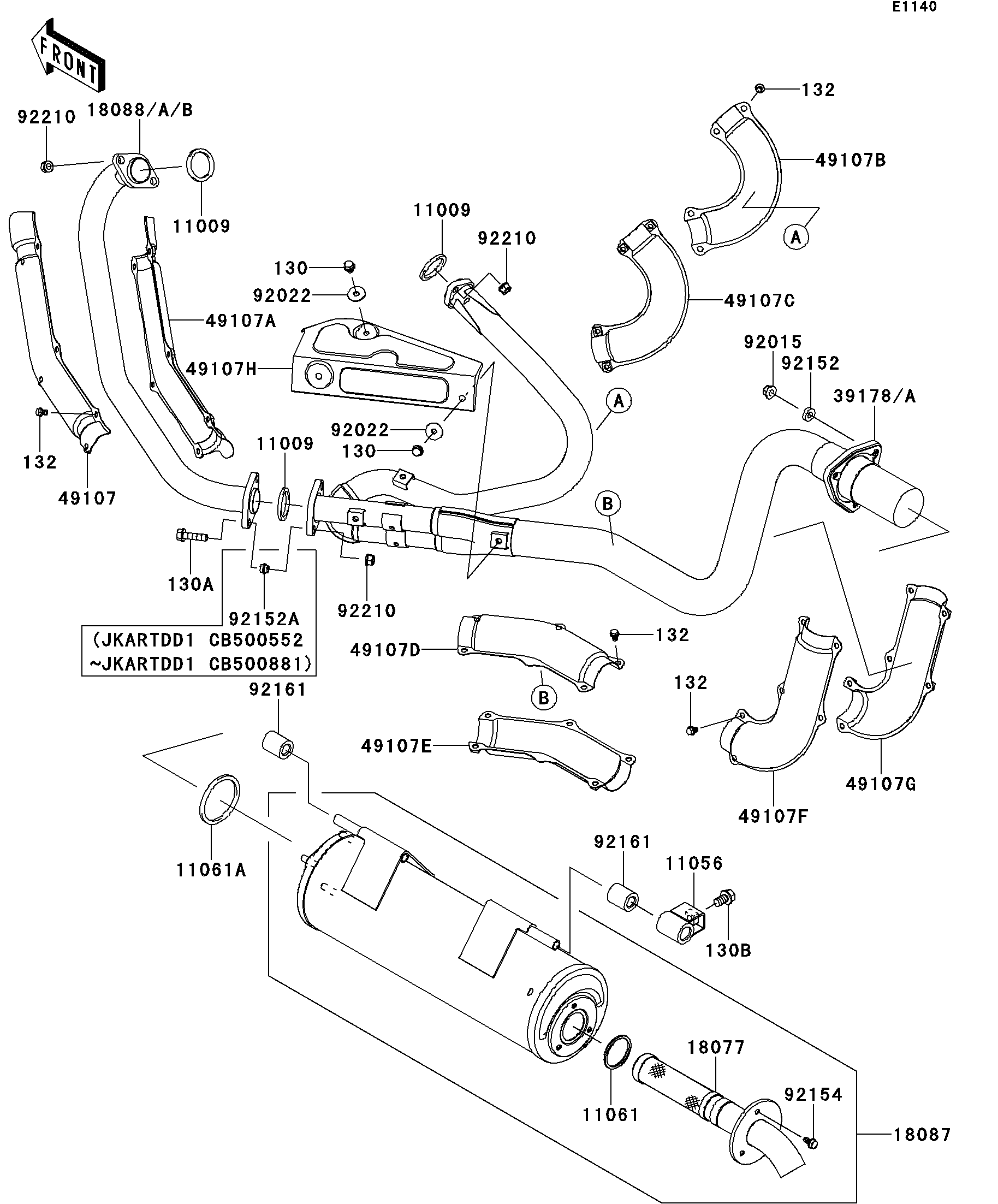

2013 TERYX4™ 750 4x4 EPS Realtree APG HD - Muffler(s)
11009
11009
11009
11056
11061
11061A
130
130
130A
130B
132
132
132
132
18077
18087
18088A
39178A
49107
49107A
49107B
49107C
49107D
49107E
49107F
49107G
49107H
92015
92022
92022
92152
92154
92161
92161
92210
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,EXHAUST HOLDER | 11009 | 11009-1894 | 3 | ||
| BRACKET | 11056 | 11056-0727 | 1 | ||
| GASKET,38.9X46.4X3.0 | 11061 | 11061-0082 | 1 | ||
| GASKET,PIPE-MUFFLER | 11061A | 11061-0811 | 1 | ||
| BOLT-FLANGED,6X10 | 130 | 130BD0610 | 3 | ||
| BOLT-FLANGED,8X30 | 130A | 130BD0830 | 2 | ||
| BOLT-FLANGED,10X16 | 130B | 130CA1016 | 1 | ||
| BOLT-FLANGED-SMALL,6X8 | 132 | 132BD0608 | 21 | ||
| ARRESTER-SPARK | 18077 | 18077-0702 | 1 | ||
| MUFFLER | 18087 | 18087-0259 | 1 | ||
| PIPE-EXHAUST | 18088A | 18088-0824 | 1 | (JKARTDD1 CB500882 - ) | |
| MANIFOLD-COMP-EXHAUST | 39178A | 39178-0185 | 1 | (JKARTDD1 CB500882 - ) | |
| COVER-EXHAUST PIPE,FR,LH | 49107 | 49107-0727 | 1 | ||
| COVER-EXHAUST PIPE,FR,RH | 49107A | 49107-0728 | 1 | ||
| COVER-EXHAUST PIPE,MIDDLE,RH | 49107B | 49107-0729 | 1 | ||
| COVER-EXHAUST PIPE,MIDDLE,LH | 49107C | 49107-0730 | 1 | ||
| COVER-EXHAUST PIPE,RR-F,UPP | 49107D | 49107-0731 | 1 | ||
| COVER-EXHAUST PIPE,RR-F,LWR | 49107E | 49107-0732 | 1 | ||
| COVER-EXHAUST PIPE,RR-R,LH | 49107F | 49107-0733 | 1 | ||
| COVER-EXHAUST PIPE,RR-R,RH | 49107G | 49107-0734 | 1 | ||
| COVER-EXHAUST PIPE,MANIFOLD | 49107H | 49107-0739 | 1 | ||
| NUT,8MM | 92015 | 92015-1402 | 3 | ||
| WASHER,6.5X22X1.6 | 92022 | 92022-237 | 3 | ||
| COLLAR,8.2X17X4.5 | 92152 | 92152-1609 | 3 | ||
| BOLT,FLANGED,6X12 | 92154 | 92154-0852 | 3 | ||
| DAMPER | 92161 | 92161-0961 | 2 | ||
| NUT,8MM | 92210 | 92210-1242 | 6 |
| GASKET,EXHAUST HOLDER | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BRACKET | |
| REF # | 11056 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,38.9X46.4X3.0 | |
| REF # | 11061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,PIPE-MUFFLER | |
| REF # | 11061A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X10 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,8X30 | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,10X16 | |
| REF # | 130B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL,6X8 | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 21 |
| DESTINATION | |
| REMARKS | |
| ARRESTER-SPARK | |
| REF # | 18077 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MUFFLER | |
| REF # | 18087 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIPE-EXHAUST | |
| REF # | 18088A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (JKARTDD1 CB500882 - ) |
| MANIFOLD-COMP-EXHAUST | |
| REF # | 39178A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (JKARTDD1 CB500882 - ) |
| COVER-EXHAUST PIPE,FR,LH | |
| REF # | 49107 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-EXHAUST PIPE,FR,RH | |
| REF # | 49107A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-EXHAUST PIPE,MIDDLE,RH | |
| REF # | 49107B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-EXHAUST PIPE,MIDDLE,LH | |
| REF # | 49107C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-EXHAUST PIPE,RR-F,UPP | |
| REF # | 49107D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-EXHAUST PIPE,RR-F,LWR | |
| REF # | 49107E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-EXHAUST PIPE,RR-R,LH | |
| REF # | 49107F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-EXHAUST PIPE,RR-R,RH | |
| REF # | 49107G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-EXHAUST PIPE,MANIFOLD | |
| REF # | 49107H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,8MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.5X22X1.6 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| COLLAR,8.2X17X4.5 | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X12 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,8MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
