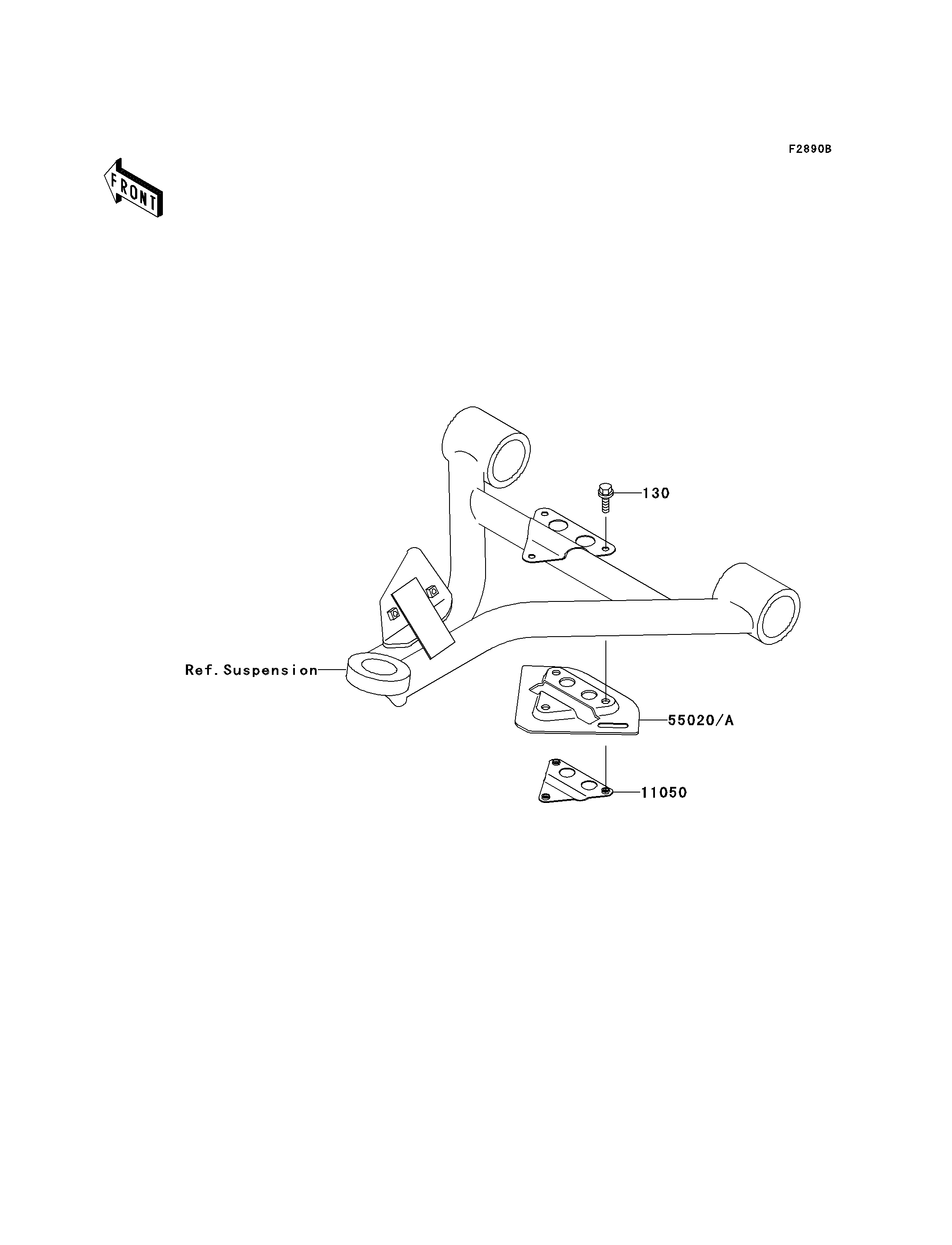

2001 Prairie 300 4X4 - Optional Parts(Arm Guard)

130
11050
55020
55020A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X12 130 130J0612 6
BRACKET,GUARD 11050 11050-1800 2
GUARD,LH 55020 55020-1660 1
GUARD,RH 55020A 55020-1661 1
