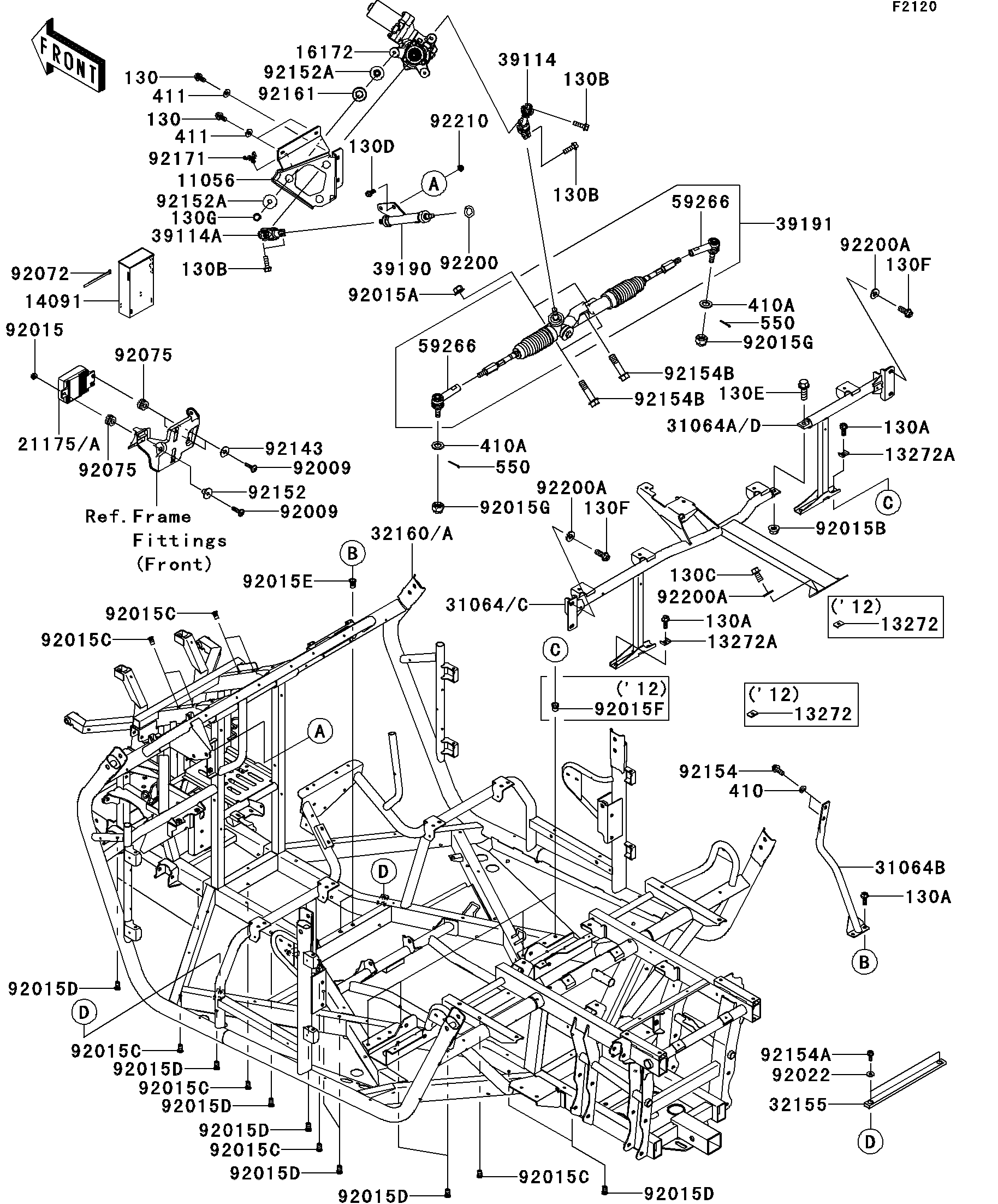

2013 TERYX4™ 750 4x4 EPS Realtree APG HD - Frame
11056
11056
13272A
13272A
13272A
13272A
14091
14091
16172
16172
21175A
21175A
31064B
31064B
31064C
31064C
31064D
31064D
32155
32155
32160A
32160A
39114
39114
39114A
39114A
39190
39190
39191
39191
59266
59266
59266
59266
92009
92009
92009
92009
92015
92015
92015A
92015A
92015B
92015B
92015C
92015C
92015C
92015C
92015C
92015C
92015C
92015C
92015C
92015C
92015C
92015C
92015D
92015D
92015D
92015D
92015D
92015D
92015D
92015D
92015D
92015D
92015D
92015D
92015D
92015D
92015E
92015E
92015G
92015G
92015G
92015G
92022
92022
92072
92072
92075
92075
92075
92075
92143
92143
92152
92152
92152A
92152A
92152A
92152A
92154
92154
92154A
92154A
92154B
92154B
92154B
92154B
92161
92161
92171
92171
130
130
130
130
130A
130A
130A
130A
130A
130A
130B
130B
130B
130B
130B
130B
130C
130C
130D
130D
130E
130E
130F
130F
130F
130F
130G
130G
410
410
410A
410A
410A
410A
411
411
411
411
550
550
550
550
92200
92200
92200A
92200A
92200A
92200A
92200A
92200A
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,EPS ACTUATOR | 11056 | 11056-1416 | 1 | ||
| PLATE | 13272A | 13272-1336 | 4 | ||
| COVER,ECU | 14091 | 14091-7560 | 1 | ||
| ACTUATOR,EPS | 16172 | 16172-0557 | 1 | ||
| CONTROL UNIT-ELECTRONIC | 21175A | 21175-0809 | 1 | ||
| PIPE-COMP | 31064B | 31064-0594 | 1 | ||
| PIPE-COMP,SUB FRAME,SEAT,LH | 31064C | 31064-0612 | 1 | ||
| PIPE-COMP,SUB FRAME,SEAT,RH | 31064D | 31064-0613 | 1 | ||
| PIPE,FR FLOOR | 32155 | 32155-1076 | 2 | ||
| FRAME-COMP | 32160A | 32160-0644 | 1 | ||
| SHAFT-COMP-STRG | 39114 | 39114-0306 | 1 | ||
| SHAFT-COMP-STRG | 39114A | 39114-0308 | 1 | ||
| SHAFT-ASSY-STEERING | 39190 | 39190-7501 | 1 | ||
| GEAR-ASSY-STEERING | 39191 | 39191-0018 | 1 | ||
| JOINT-BALL | 59266 | 59266-0706 | 2 | ||
| SCREW,6X25 | 92009 | 92009-1465 | 3 | ||
| NUT,FLANGED,6MM | 92015 | 92015-1367 | 1 | ||
| NUT,LOCK,FLANGED,12MM | 92015A | 92015-1433 | 2 | ||
| NUT,12MM | 92015B | 92015-1706 | 1 | ||
| NUT,POP,6MM,L=15 | 92015C | 92015-1791 | 12 | ||
| NUT,POP,6MM,L=16.5 | 92015D | 92015-1792 | 22 | ||
| NUT,POP,8MM,L=16.5 | 92015E | 92015-1793 | 2 | ||
| NUT,CASTLE,14MM | 92015G | 92015-1841 | 2 | ||
| WASHER | 92022 | 92022-2247 | 4 | ||
| BAND,L=123 | 92072 | 92072-030 | 1 | ||
| DAMPER,RUBBER | 92075 | 92075-1123 | 3 | ||
| COLLAR,L=6.5 | 92143 | 92143-1025 | 2 | ||
| COLLAR,6.5X10X13.3 | 92152 | 92152-0957 | 1 | ||
| COLLAR | 92152A | 92152-7513 | 6 | ||
| BOLT,FLANGED,8X20 | 92154 | 92154-0100 | 2 | ||
| BOLT,FLANGED,6X16 | 92154A | 92154-0887 | 4 | ||
| BOLT,FLANGED,12X50 | 92154B | 92154-1008 | 3 | ||
| DAMPER,ACTUATOR | 92161 | 92161-7517 | 3 | ||
| CLAMP | 92171 | 92171-0453 | 1 | ||
| BOLT-FLANGED,8X16 | 130 | 130BA0816 | 4 | ||
| BOLT-FLANGED,8X20 | 130A | 130BA0820 | 6 | ||
| BOLT-FLANGED,8X25 | 130B | 130BA0825 | 4 | ||
| BOLT-FLANGED,10X20 | 130C | 130BA1020 | 2 | ||
| BOLT-FLANGED,10X22 | 130D | 130BA1022 | 2 | ||
| BOLT-FLANGED,12X35 | 130E | 130BA1235 | 1 | ||
| BOLT-FLANGED,10X25 | 130F | 130BB1025 | 4 | ||
| BOLT-FLANGED,8X45 | 130G | 130CA0845 | 3 | ||
| WASHER-PLAIN-SMALL,8MM | 410 | 410AA0800 | 2 | ||
| WASHER-PLAIN-SMALL,14MM | 410A | 410AA1400 | 2 | ||
| WASHER-PLAIN | 411 | 411AA0800 | 4 | ||
| PIN-COTTER,3.0X25 | 550 | 550AA3025 | 2 | ||
| WASHER,15X25X1.6 | 92200 | 92200-0460 | 1 | ||
| WASHER,10.2X23X2.5 | 92200A | 92200-7506 | 6 | ||
| NUT,LOCK,FLANGED,10MM | 92210 | 92210-1080 | 1 |
