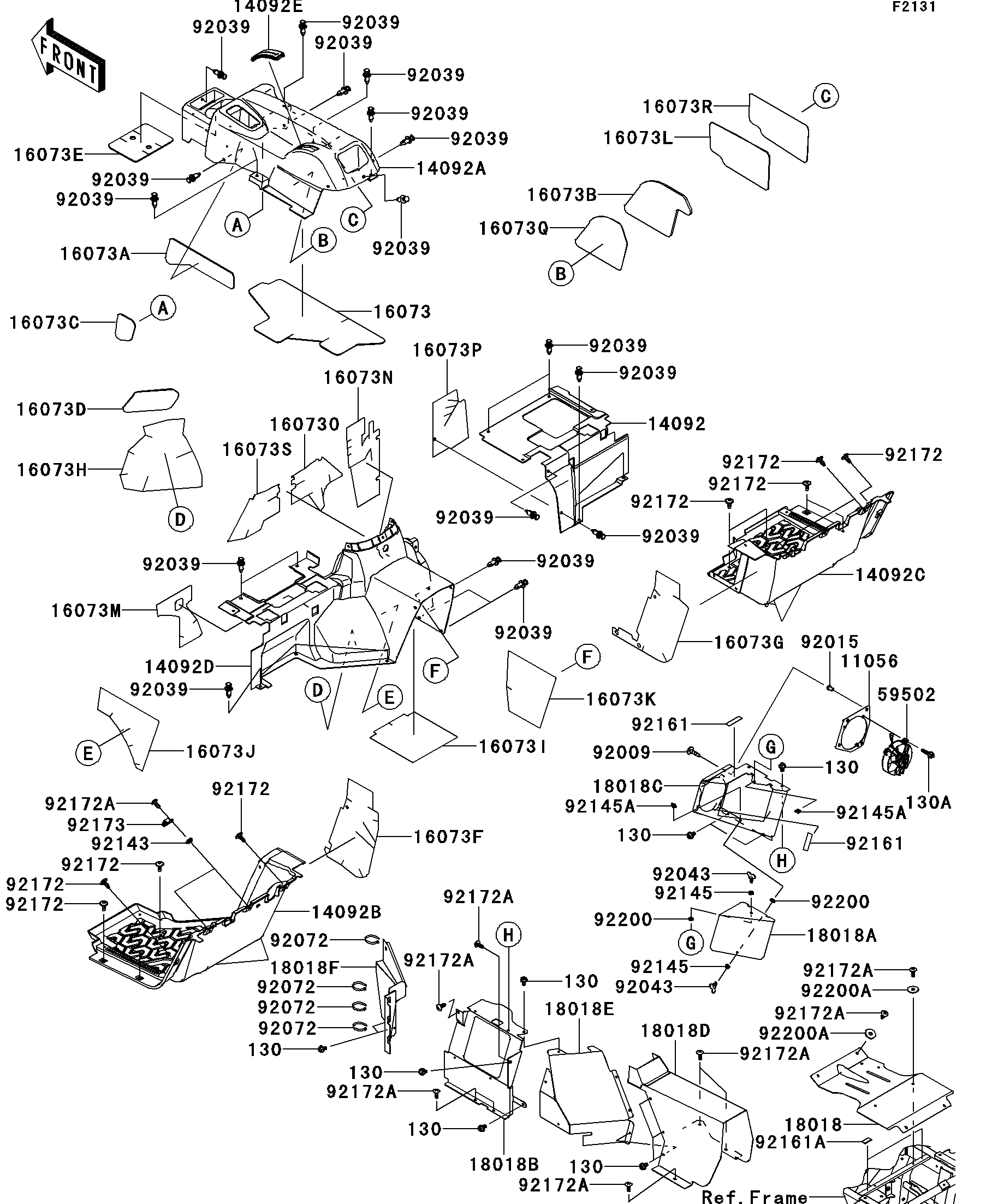

2013 TERYX4™ 750 4x4 EPS Realtree APG HD - Frame Fittings(Rear)
11056
11056
14092
14092
14092A
14092A
14092B
14092B
14092C
14092C
14092D
14092D
14092E
14092E
16073
16073
16073A
16073A
16073B
16073B
16073C
16073C
16073D
16073D
16073E
16073E
16073F
16073F
16073G
16073G
16073H
16073H
16073I
16073I
16073J
16073J
16073K
16073K
16073L
16073L
16073M
16073M
16073N
16073N
16073O
16073O
16073P
16073P
16073Q
16073Q
16073R
16073R
16073S
16073S
18018
18018
18018A
18018A
18018B
18018B
18018C
18018C
18018D
18018D
18018E
18018E
18018F
18018F
59502
59502
92009
92009
92015
92015
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92043
92043
92043
92043
92072
92072
92072
92072
92072
92072
92072
92072
130
130
130
130
130
130
130
130
130
130
130
130
130
130
130A
130A
92143
92143
92145
92145
92145
92145
92145A
92145A
92145A
92145A
92161
92161
92161
92161
92161A
92161A
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92173
92173
92200
92200
92200
92200
92200A
92200A
92200A
92200A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,FAN MOUNT | 11056 | 11056-1488 | 1 | ||
| COVER,FR SEAT,RR,RH | 14092 | 14092-0714 | 1 | ||
| COVER,CENTER CONSOLE | 14092A | 14092-0715 | 1 | ||
| COVER,RR FLOOR,LH | 14092B | 14092-0718 | 1 | ||
| COVER,RR FLOOR,RH | 14092C | 14092-0719 | 1 | ||
| COVER,FR SEAT,RR,LH | 14092D | 14092-0722 | 1 | ||
| COVER,CENTER CONSOLE,TOP | 14092E | 14092-0791 | 1 | ||
| INSULATOR,CENTER CONSOLE | 16073 | 16073-0710 | 1 | ||
| INSULATOR,CENTER CONSOLE | 16073A | 16073-0711 | 1 | ||
| INSULATOR,CENTER CONSOLE | 16073B | 16073-0712 | 1 | ||
| INSULATOR,CENTER CONSOLE | 16073C | 16073-0714 | 1 | ||
| INSULATOR,FR SEAT,RR | 16073D | 16073-0720 | 1 | ||
| INSULATOR,CENTER CONSOLE | 16073E | 16073-0721 | 1 | ||
| INSULATOR,RR FLOOR,LH | 16073F | 16073-0726 | 1 | ||
| INSULATOR,RR FLOOR,RH | 16073G | 16073-0727 | 1 | ||
| INSULATOR,FR SEAT,RR | 16073H | 16073-0728 | 1 | ||
| INSULATOR,FR SEAT,RR | 16073I | 16073-0733 | 1 | ||
| INSULATOR,FR SEAT,RR | 16073J | 16073-0734 | 1 | ||
| INSULATOR,FR SEAT,RR | 16073K | 16073-0735 | 1 | ||
| INSULATOR,CENTER CONSOLE | 16073L | 16073-0739 | 1 | ||
| INSULATOR,FR SEAT,RR | 16073M | 16073-0740 | 1 | ||
| INSULATOR,FR SEAT,RR | 16073N | 16073-0741 | 1 | ||
| INSULATOR,FR SEAT,RR | 16073O | 16073-0742 | 1 | ||
| INSULATOR,FR SEAT,RR | 16073P | 16073-0744 | 1 | ||
| INSULATOR,CENTER CONSOLE | 16073Q | 16073-0746 | 1 | ||
| INSULATOR,CENTER CONSOLE | 16073R | 16073-0747 | 1 | ||
| INSULATOR,FR SEAT,RR | 16073S | 16073-0749 | 1 | ||
| PLATE-HEAT GUARD,UNDER CARRIER | 18018 | 18018-0554 | 1 | ||
| PLATE-HEAT GUARD,SIDE DUCT COV | 18018A | 18018-0574 | 1 | ||
| PLATE-HEAT GUARD,BULKHEAD | 18018B | 18018-0576 | 1 | ||
| PLATE-HEAT GUARD,FAN DUCT | 18018C | 18018-0577 | 1 | ||
| PLATE-HEAT GUARD,RR TUNNEL | 18018D | 18018-0580 | 1 | ||
| PLATE-HEAT GUARD,RR PLATE | 18018E | 18018-0581 | 1 | ||
| PLATE-HEAT GUARD,DRIVER SIDE | 18018F | 18018-0583 | 1 | ||
| FAN-ASSY,BLOWER | 59502 | 59502-0560 | 1 | ||
| SCREW,6X25 | 92009 | 92009-1465 | 4 | ||
| NUT,RUBBER,6MM | 92015 | 92015-1692 | 4 | ||
| RIVET | 92039 | 92039-1229 | 25 | ||
| PIN,WINGED | 92043 | 92043-0739 | 2 | ||
| BAND,L=140 | 92072 | 92072-1293 | 4 | ||
| BOLT-FLANGED,6X10 | 130 | 130AA0610 | 12 | ||
| BOLT-FLANGED,6X22 | 130A | 130BA0622 | 3 | ||
| COLLAR | 92143 | 92143-1087 | 2 | ||
| SPRING | 92145 | 92145-0905 | 2 | ||
| SPRING,CLIP | 92145A | 92145-0906 | 2 | ||
| DAMPER | 92161 | 92161-0580 | 3 | ||
| DAMPER,20X37.5X1.6 | 92161A | 92161-1486 | 2 | ||
| SCREW,6X16 | 92172 | 92172-0711 | 13 | ||
| SCREW,TAPPING,6X16 | 92172A | 92172-0739 | 15 | ||
| CLAMP | 92173 | 92173-0933 | 2 | ||
| WASHER | 92200 | 92200-0800 | 2 | ||
| WASHER,6.5X22X1.6 | 92200A | 92200-1087 | 6 |
| BRACKET,FAN MOUNT | |
| REF # | 11056 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,FR SEAT,RR,RH | |
| REF # | 14092 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,CENTER CONSOLE | |
| REF # | 14092A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,RR FLOOR,LH | |
| REF # | 14092B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,RR FLOOR,RH | |
| REF # | 14092C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,FR SEAT,RR,LH | |
| REF # | 14092D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,CENTER CONSOLE,TOP | |
| REF # | 14092E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| INSULATOR,CENTER CONSOLE | |
| REF # | 16073 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| INSULATOR,CENTER CONSOLE | |
| REF # | 16073A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| INSULATOR,CENTER CONSOLE | |
| REF # | 16073B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| INSULATOR,CENTER CONSOLE | |
| REF # | 16073C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| INSULATOR,FR SEAT,RR | |
| REF # | 16073D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| INSULATOR,CENTER CONSOLE | |
| REF # | 16073E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| INSULATOR,RR FLOOR,LH | |
| REF # | 16073F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| INSULATOR,RR FLOOR,RH | |
| REF # | 16073G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| INSULATOR,FR SEAT,RR | |
| REF # | 16073H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| INSULATOR,FR SEAT,RR | |
| REF # | 16073I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| INSULATOR,FR SEAT,RR | |
| REF # | 16073J |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| INSULATOR,FR SEAT,RR | |
| REF # | 16073K |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| INSULATOR,CENTER CONSOLE | |
| REF # | 16073L |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| INSULATOR,FR SEAT,RR | |
| REF # | 16073M |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| INSULATOR,FR SEAT,RR | |
| REF # | 16073N |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| INSULATOR,FR SEAT,RR | |
| REF # | 16073O |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| INSULATOR,FR SEAT,RR | |
| REF # | 16073P |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| INSULATOR,CENTER CONSOLE | |
| REF # | 16073Q |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| INSULATOR,CENTER CONSOLE | |
| REF # | 16073R |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| INSULATOR,FR SEAT,RR | |
| REF # | 16073S |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE-HEAT GUARD,UNDER CARRIER | |
| REF # | 18018 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE-HEAT GUARD,SIDE DUCT COV | |
| REF # | 18018A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE-HEAT GUARD,BULKHEAD | |
| REF # | 18018B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE-HEAT GUARD,FAN DUCT | |
| REF # | 18018C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE-HEAT GUARD,RR TUNNEL | |
| REF # | 18018D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE-HEAT GUARD,RR PLATE | |
| REF # | 18018E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE-HEAT GUARD,DRIVER SIDE | |
| REF # | 18018F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FAN-ASSY,BLOWER | |
| REF # | 59502 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X25 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,RUBBER,6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| RIVET | |
| REF # | 92039 |
|---|---|
| PART NUMBER | |
| QUANTITY | 25 |
| DESTINATION | |
| REMARKS | |
| PIN,WINGED | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BAND,L=140 | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X10 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 12 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X22 | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92143 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SPRING | |
| REF # | 92145 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SPRING,CLIP | |
| REF # | 92145A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| DAMPER,20X37.5X1.6 | |
| REF # | 92161A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X16 | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 13 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,6X16 | |
| REF # | 92172A |
|---|---|
| PART NUMBER | |
| QUANTITY | 15 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92173 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.5X22X1.6 | |
| REF # | 92200A |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
