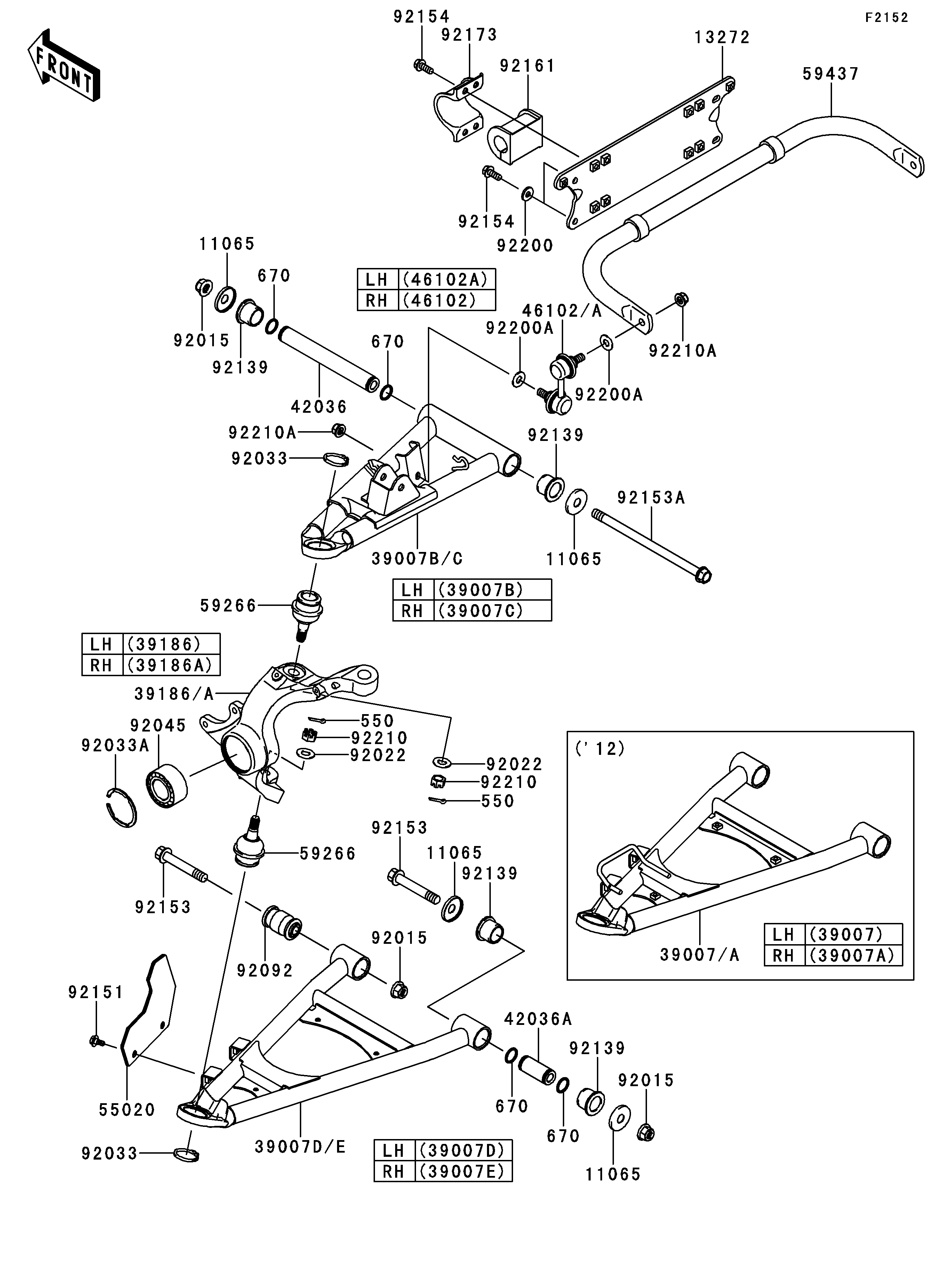

2013 TERYX4™ 750 4x4 EPS Realtree APG HD - Front Suspension

DOWNLOAD PDF
SELECT A NEW PART
11065
11065
11065
11065
13272
39007B
39007C
39007D
39007E
39186
39186A
42036
42036A
46102
46102A
550
550
55020
59266
59266
59437
670
670
670
670
92015
92015
92015
92022
92022
92033
92033
92033A
92045
92092
92139
92139
92139
92139
92151
92153
92153
92153A
92154
92154
92161
92173
92200
92200A
92200A
92210
92210
92210A
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11065 11065-0253 8
PLATE 13272 13272-1042 1
ARM-SUSP,FR,UPP,LH 39007B 39007-0362 1
ARM-SUSP,FR,UPP,RH 39007C 39007-0363 1
ARM-SUSP,FR,LWR,LH 39007D 39007-0364 1
ARM-SUSP,FR,LWR,RH 39007E 39007-0365 1
KNUCKLE,FR,LH 39186 39186-0311 1
KNUCKLE,FR,RH 39186A 39186-0312 1
SLEEVE 42036 42036-0061 2
SLEEVE 42036A 42036-0062 2
ROD,STABILIZER,RH 46102 46102-0100 1
ROD,STABILIZER,LH 46102A 46102-0101 1
PIN-COTTER,3.0X25 550 550AA3025 4
GUARD,FRONT ARM 55020 55020-0839 2
JOINT-BALL 59266 59266-0014 4
STABILIZER,FR 59437 59437-0305 1
O RING,18MM 670 670B2018 8
NUT,LOCK,FLANGED,12MM 92015 92015-1433 6
WASHER 92022 92022-1831 4
RING-SNAP,C-TYPE,32MM 92033 92033-1262 4
RING-SNAP,55MM 92033A 92033-1274 2
BEARING-BALL,DAC3055W-3CS31 92045 92045-0123 2
BUSHING-RUBBER 92092 92092-0555 2
BUSHING 92139 92139-0231 8
BOLT,FLANGED,6X13 92151 92151-1703 4
BOLT,FLANGED,12X76.5 92153 92153-1733 4
BOLT,FLANGED,12X213 92153A 92153-1958 2
BOLT,FLANGED,8X20 92154 92154-0100 12
DAMPER 92161 92161-0539 2
CLAMP 92173 92173-0721 2
WASHER,8.2X20.0X2.5 92200 92200-0205 4
WASHER,10.3X23X1.6 92200A 92200-2009 4
NUT,CASTLE,12MM 92210 92210-0395 4
NUT,LOCK,FLANGED,10MM 92210A 92210-1080 4
