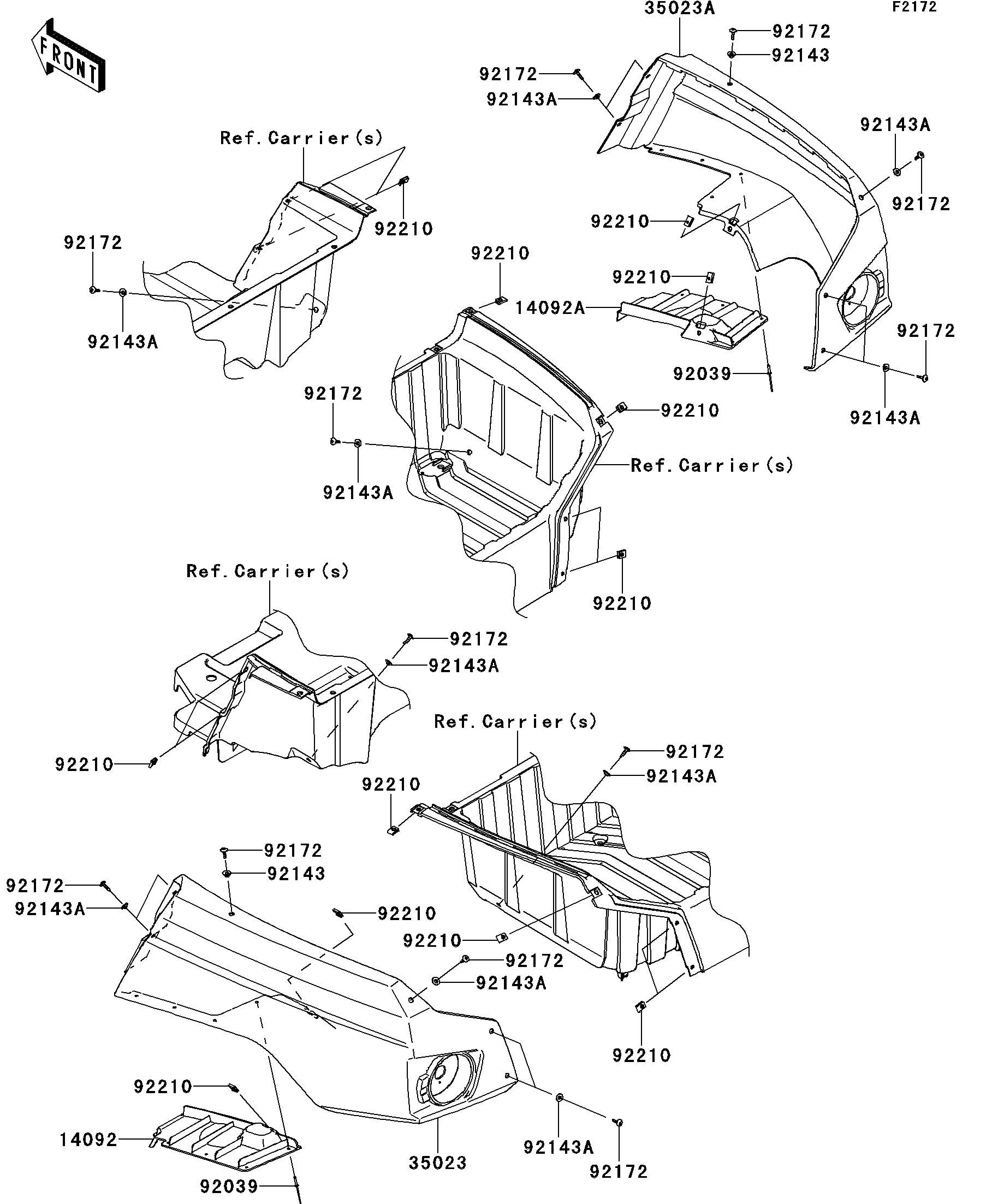

2013 TERYX4™ 750 4x4 EPS Realtree APG HD - Rear Fender(s)
14092
14092A
35023
35023A
92039
92039
92143
92143
92143A
92143A
92143A
92143A
92143A
92143A
92143A
92143A
92143A
92143A
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92210
92210
92210
92210
92210
92210
92210
92210
92210
92210
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,INNER,LH | 14092 | 14092-0863 | 1 | ||
| COVER,INNER,RH | 14092A | 14092-0864 | 1 | ||
| FENDER-REAR,LH,CAMOUFLAGE | 35023 | 35023-0322-16P | 1 | ||
| FENDER-REAR,RH,CAMOUFLAGE | 35023A | 35023-0323-16P | 1 | ||
| RIVET,4.9X19.8 | 92039 | 92039-0704 | 8 | ||
| COLLAR | 92143 | 92143-1057 | 2 | ||
| COLLAR | 92143A | 92143-1087 | 14 | ||
| SCREW,TAPPING,6X20 | 92172 | 92172-0488 | 16 | ||
| NUT,LEAF SPRING,6MM | 92210 | 92210-0624 | 16 |
