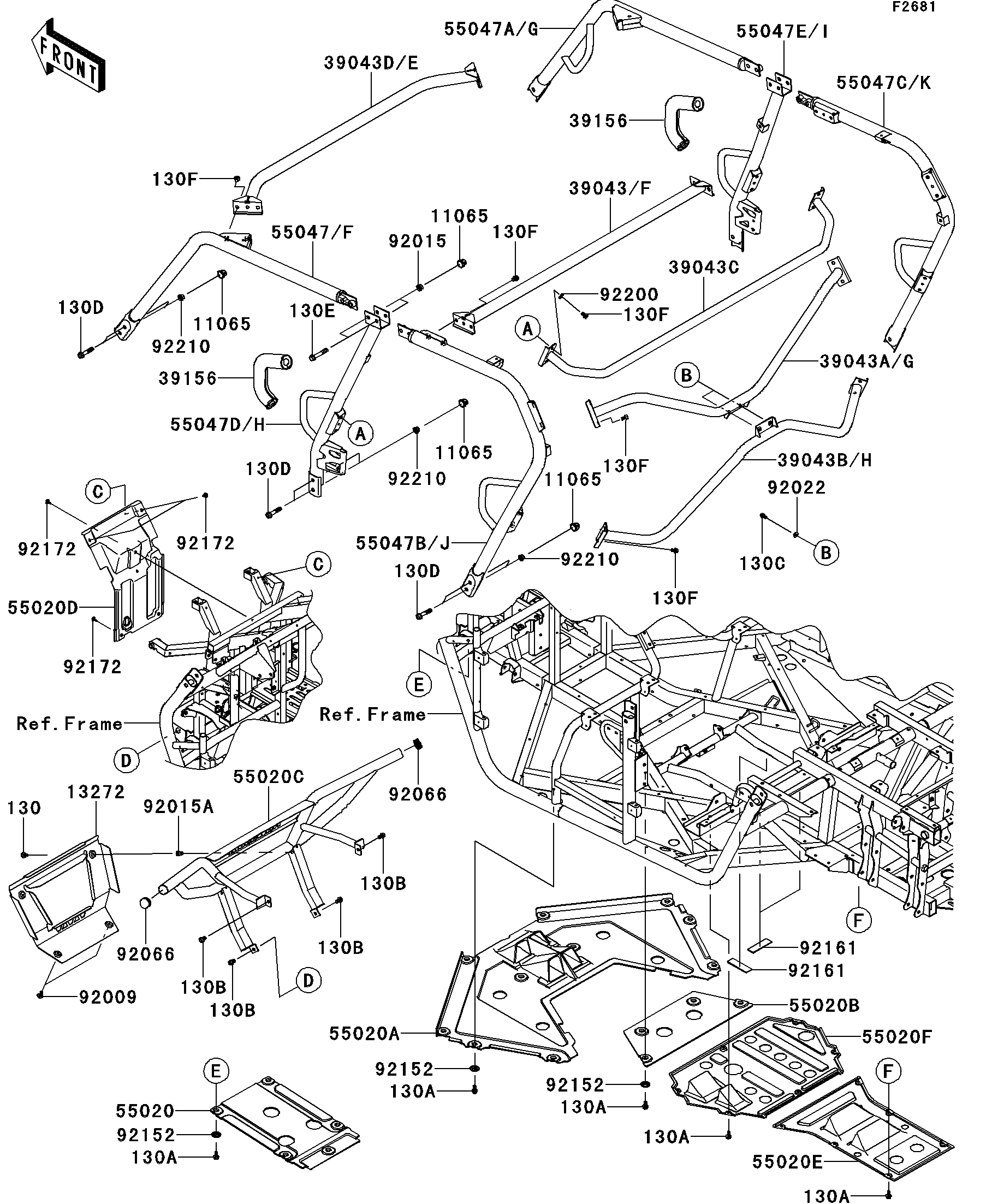

2013 TERYX4™ 750 4x4 EPS Realtree APG HD - Guards/Cab Frame

DOWNLOAD PDF
SELECT A NEW PART
11065
11065
11065
11065
11065
11065
11065
11065
13272
13272
39043C
39043C
39043E
39043E
39043F
39043F
39043G
39043G
39043H
39043H
39156
39156
39156
39156
55020
55020
55020A
55020A
55020B
55020B
55020C
55020C
55020D
55020D
55020E
55020E
55020F
55020F
55047F
55047F
55047G
55047G
55047H
55047H
55047I
55047I
55047J
55047J
55047K
55047K
92009
92009
92015
92015
92015A
92015A
92022
92022
92066
92066
92066
92066
92152
92152
92152
92152
92152
92152
92161
92161
92161
92161
92172
92172
92172
92172
92172
92172
92200
92200
130
130
130A
130A
130A
130A
130A
130A
130A
130A
130A
130A
130B
130B
130B
130B
130B
130B
130B
130B
130C
130C
130D
130D
130D
130D
130D
130D
130E
130E
130F
130F
130F
130F
130F
130F
130F
130F
130F
130F
92210
92210
92210
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11065 11065-0751 16
PLATE,T.BLACK 13272 13272-0994-388 1
CROSSMEMBER-COMP,CNT,LWR,T.BLK 39043C 39043-0325-388 1
CROSSMEMBER-COMP,FR,UPP,T.BLK 39043E 39043-0328-388 1
CROSSMEMBER-COMP,CNT,UPP,T.BLK 39043F 39043-0329-388 1
CROSSMEMBER-COMP,RR,UPP,T.BLK 39043G 39043-0330-388 1
CROSSMEMBER-COMP,RR,LWR,T.BLK 39043H 39043-0331-388 1
PAD 39156 39156-0764 2
GUARD,SKID,FR 55020 55020-0723 1
GUARD,SKID,FR MIDDLE 55020A 55020-0724 1
GUARD,SKID,CNT,FR 55020B 55020-0726 1
GUARD,FRONT,T.BLACK 55020C 55020-0727-388 1
GUARD,FR FRAME 55020D 55020-0741 1
GUARD,SKID,RR 55020E 55020-0812 1
GUARD,SKID,CNT 55020F 55020-0815 1
BAR-COMP,A-PILLAR,LH,T.BLACK 55047F 55047-0334-388 1
BAR-COMP,A-PILLAR,RH,T.BLACK 55047G 55047-0335-388 1
BAR-COMP,B-PILLAR,LH,T.BLACK 55047H 55047-0336-388 1
BAR-COMP,B-PILLAR,RH,T.BLACK 55047I 55047-0337-388 1
BAR-COMP,C-PILLAR,LH,T.BLACK 55047J 55047-0338-388 1
BAR-COMP,C-PILLAR,RH,T.BLACK 55047K 55047-0339-388 1
SCREW,TAPPING,6X16 92009 92009-1166 2
NUT,LOCK,FLANGED,12MM 92015 92015-1433 4
NUT,POP,6MM,L=15 92015A 92015-1791 2
WASHER,8.5X20X1.6,BLACK 92022 92022-1317 2
PLUG 92066 92066-7503 2
COLLAR 92152 92152-0784 19
DAMPER,30X100X3.2 92161 92161-1457 3
SCREW,6X16 92172 92172-0711 4
WASHER,10.2X23X2.5 92200 92200-7506 4
BOLT-FLANGED,6X14 130 130AB0614 2
BOLT-FLANGED,6X14 130A 130BA0614 31
BOLT-FLANGED,10X16 130B 130BA1016 4
BOLT-FLANGED,8X16 130C 130BB0816 2
BOLT-FLANGED,12X60 130D 130BB1260 12
BOLT-FLANGED,12X75 130E 130BB1275 4
BOLT-FLANGED,10X14 130F 130CB1014 20
NUT,12MM 92210 92210-0603 12
