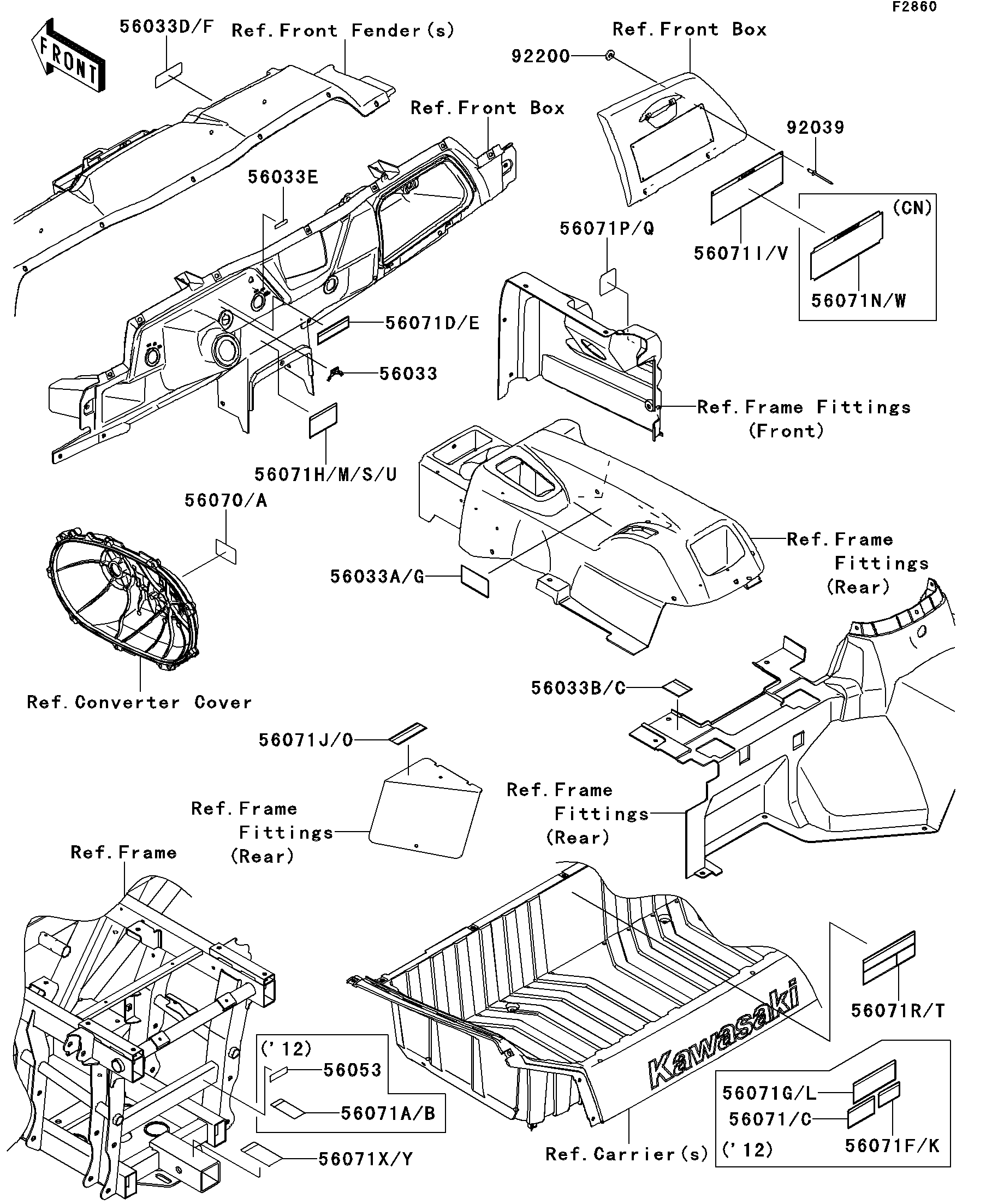

2013 TERYX4™ 750 4x4 EPS Realtree APG HD - Labels

DOWNLOAD PDF
SELECT A NEW PART
56033
56033
56033A
56033A
56033B
56033B
56033C
56033C
56033D
56033D
56033E
56033E
56033F
56033F
56033G
56033G
56070
56070
56070A
56070A
56071D
56071D
56071E
56071E
56071J
56071J
56071O
56071O
56071P
56071P
56071Q
56071Q
56071R
56071R
56071S
56071S
56071T
56071T
56071U
56071U
56071V
56071V
56071W
56071W
56071X
56071X
56071Y
56071Y
92039
92039
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LABEL-MANUAL,MAIN SWITCH 56033 56033-0190 1
LABEL-MANUAL,CVT,FRN 56033A 56033-0305 1 CN
LABEL-MANUAL,OIL MAINTENANCE 56033B 56033-0372 1
LABEL-MANUAL,OIL MAINTENANCE,FRN 56033C 56033-0373 1 CN
LABEL-MANUAL,AIR CLEANER 56033D 56033-0724 1
LABEL-MANUAL,BLOWER FAN 56033E 56033-0730 1
LABEL-MANUAL,AIR CLEANER,FRN 56033F 56033-0731 1 CN
LABEL-MANUAL,DRIVE BELT 56033G 56033-0739 1
LABEL-WARNING,CVT COVER 56070 56070-1269 1
LABEL-WARNING,CVT COVER,FRN 56070A 56070-1271 1 CN
LABEL-WARNING,SHIFT CAUTION 56071D 56071-0128 1
LABEL-WARNING,SHIFT CAUTION,FRN 56071E 56071-0129 1 CN
LABEL-WARNING,FAN DUCT COVER 56071J 56071-0258 1
LABEL-WARNING,HEAT COVER,FRN 56071O 56071-0263 1 CN
LABEL-WARNING,GASOLINE 56071P 56071-0292 1
LABEL-WARNING,GASOLINE,FRN 56071Q 56071-0293 1 CN
LABEL-WARNING,CARGO CAPACITY 56071R 56071-0309 1
LABEL-WARNING,TIRE INFO. 56071S 56071-0310 1
LABEL-WARNING,CARGO CAPACITY,FRN 56071T 56071-0311 1 CN
LABEL-WARNING,TIRE INFO.,FRN 56071U 56071-0312 1 CN
LABEL-WARNING,GENERAL 56071V 56071-0322 1
LABEL-WARNING,GENERAL,FRN 56071W 56071-0323 1 CN
LABEL-WARNING,TRAILER HITCH 56071X 56071-0333 1
LABEL-WARNING,TRAILER HITCH,FRN 56071Y 56071-0334 1 CN
RIVET,3.2X8 92039 92039-3763 4
WASHER,3.5X8X1 92200 92200-1251 4
