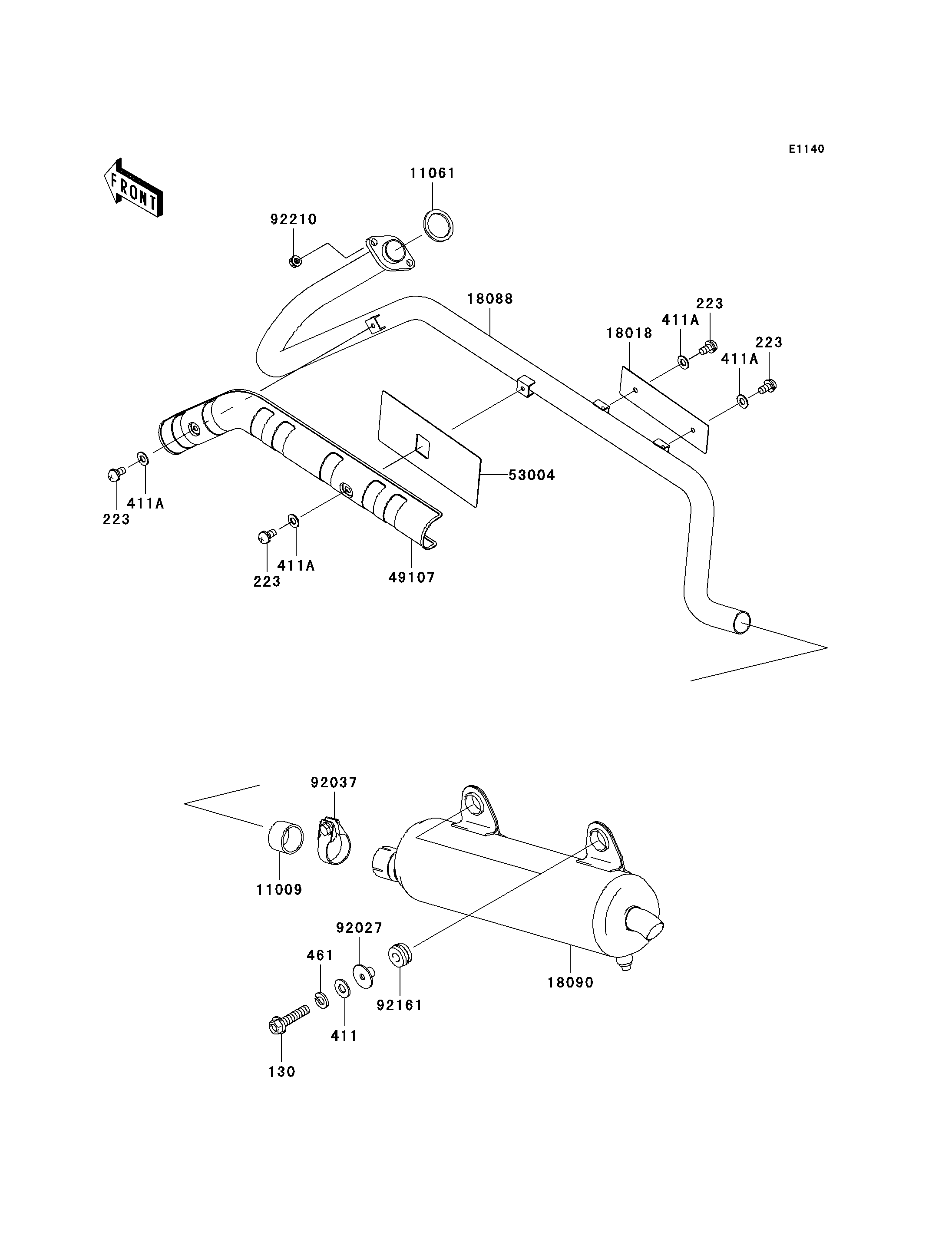

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X35 130 130Z0835 2
SCREW-PAN-WS-CROS,6X12 223 223C0612 4
WASHER-PLAIN,8MM 411 411B0800 2
WASHER-PLAIN,6MM,BLACK 411A 411F0600 4
WASHER-SPRING,8MM 461 461F0800 2
GASKET,EXHAUST PIPE CONNECTING 11009 11009-1667 1
GASKET,EXHAUST 11061 11061-1053 1
PLATE-HEAT GUARD,EXHAUST PIPE 18018 18018-1135 1
PIPE-EXHAUST 18088 18088-1215 1
BODY-COMP-MUFFLER 18090 18090-1954 1
COVER-EXHAUST PIPE 49107 49107-1222 1
MAT 53004 53004-1181 1
COLLAR,MUFFLER 92027 92027-1981 2
CLAMP,42MM 92037 92037-1349 1
DAMPER,MUFFLER 92161 92161-1292 2
NUT,8MM 92210 92210-1242 2
