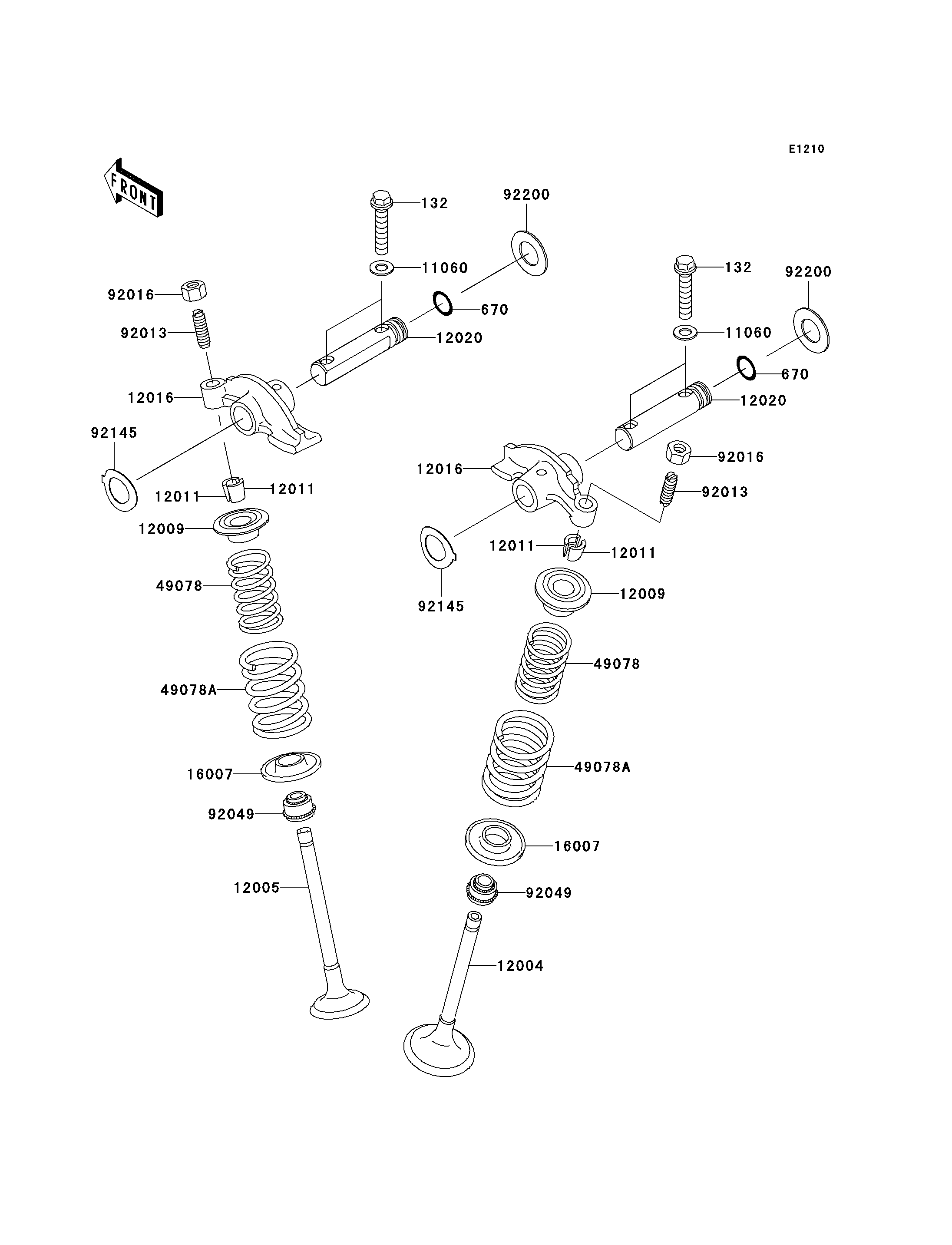

2003 Prairie 360 4X4 - Valve(s)

DOWNLOAD PDF
SELECT A NEW PART
132
132
670
670
11060
11060
12004
12005
12009
12009
12011
12011
12011
12011
12016
12016
12020
12020
16007
16007
49078
49078
49078A
49078A
92013
92013
92016
92016
92049
92049
92145
92145
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X30 132 132Y0630 4
O RING,10MM 670 670D1510 2
GASKET,6.2X12X0.3 11060 11060-1994 4
VALVE-INTAKE 12004 12004-1155 1
VALVE-EXHAUST 12005 12005-1326 1
RETAINER-VALVE SPRING 12009 12009-005 2
COLLET,RETAINER 12011 12011-004 4
ARM-ROCKER 12016 12016-1138 2
SHAFT-ROCKER 12020 12020-1085 2
SEAT-SPRING,VALVE 16007 16007-1024 2
SPRING-ENGINE VALVE,INNER 49078 49078-1209 2
SPRING-ENGINE VALVE,OUTER 49078A 49078-1210 2
SCREW,6MM 92013 92013-009 2
NUT,6MM 92016 92016-061 2
SEAL-OIL,RV37129.5 92049 92049-016 2
SPRING,ROCKER SHAFT 92145 92145-1532 2
WASHER,13.4X25X1.0 92200 92200-0045 2
