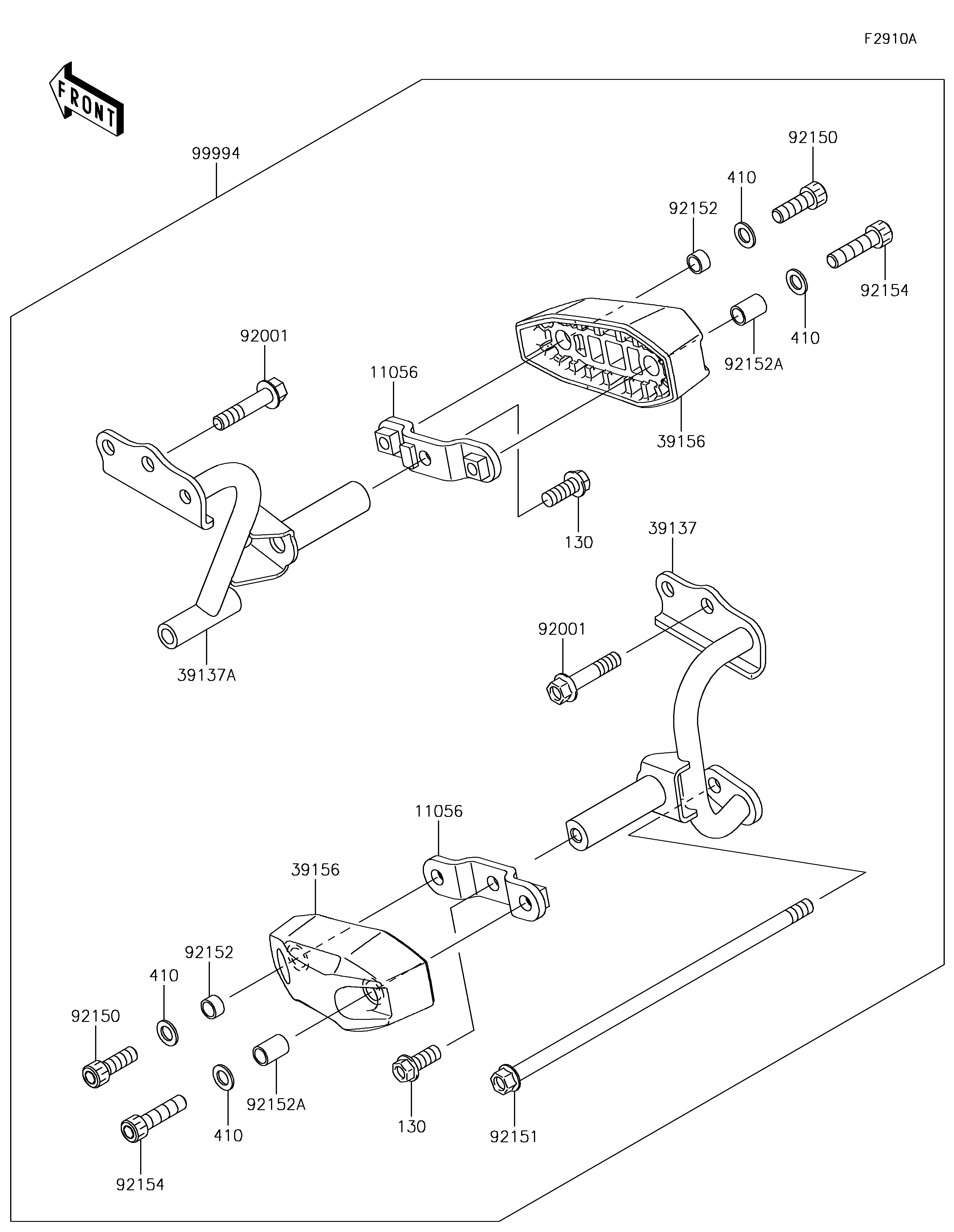

2016 Ninja 300 ABS KRT Edition - Accessory(Engine Guard)
11056
11056
130
130
39137
39137A
39156
39156
410
410
410
410
92001
92001
92150
92150
92151
92152
92152
92152A
92152A
92154
92154
99994
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET | 11056 | 11056-2117 | 2 | ||
| BOLT-FLANGED,10X25 | 130 | 130BB1025 | 2 | ||
| STAY-COMP | 39137 | 39137-0568 | 1 | ||
| STAY-COMP | 39137A | 39137-0569 | 1 | ||
| PAD,ENGINE GUARD | 39156 | 39156-0758 | 2 | ||
| WASHER-PLAIN-SMALL,10MM,BLACK | 410 | 410AB1000 | 4 | ||
| BOLT,BLACK,10X47 | 92001 | 92001-1522 | 4 | ||
| BOLT,SOCKET,10X30 | 92150 | 92150-1690 | 2 | ||
| BOLT,FLANGED,10X280 | 92151 | 92151-1916 | 1 | ||
| COLLAR,10.6X13.8X7.8 | 92152 | 92152-1661 | 2 | ||
| COLLAR,10.6X13.8X19.8 | 92152A | 92152-1662 | 2 | ||
| BOLT,SOCKET,10X40 | 92154 | 92154-1084 | 2 | ||
| KIT-ACCESSORY,ENGINE GUARD | 99994 | 99994-0355 | 1 |
