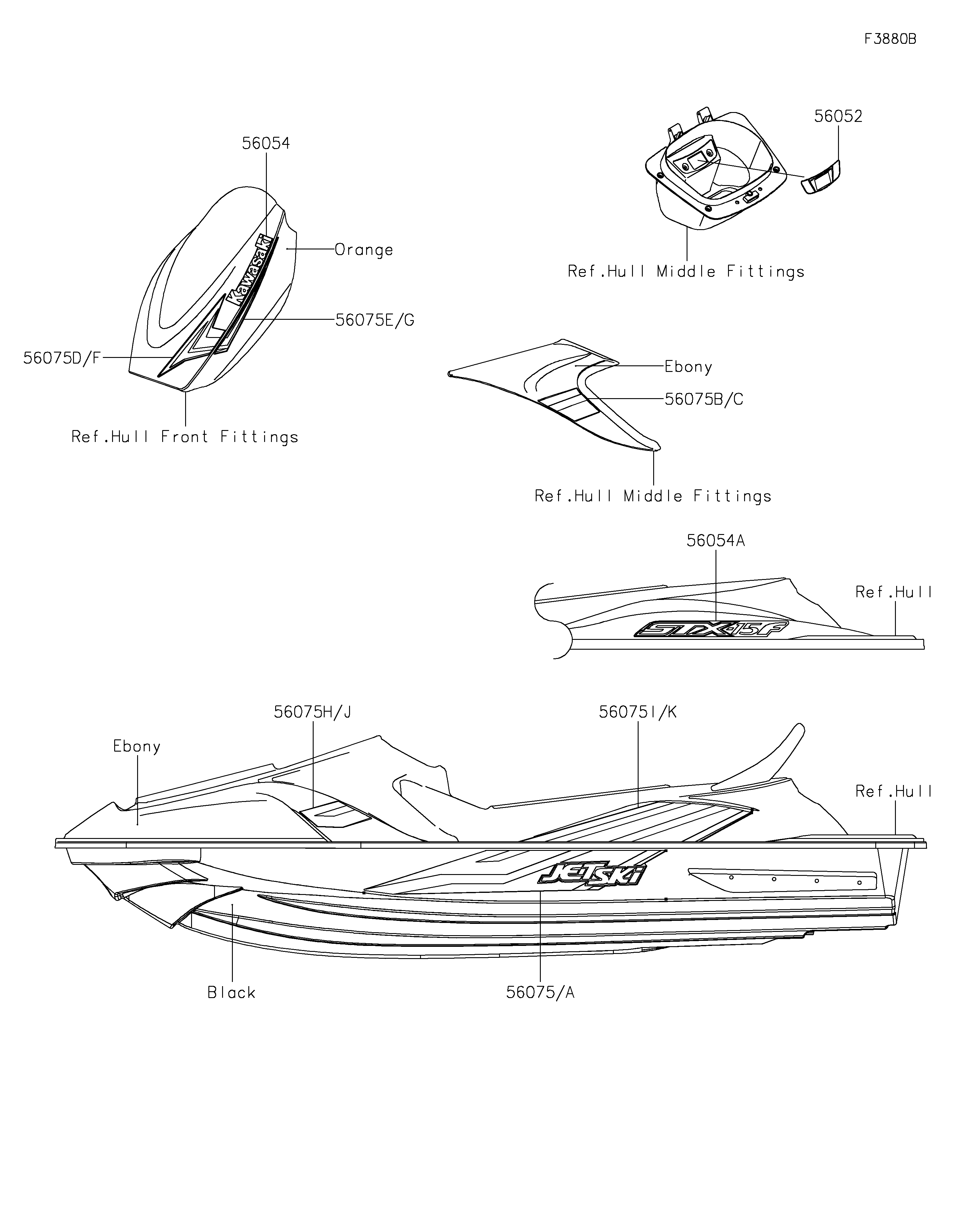

Parts Diagrams |
56052
56054
56054A
56075
56075A
56075B
56075C
56075D
56075E
56075F
56075G
56075H
56075I
56075J
56075K
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,IMMOBILIZER | 56052 | 56052-3878 | 1 | ||
| MARK,HATCH COVER,KAWASAKI | 56054 | 56054-2257 | 2 | ||
| MARK,DECK,STX-15F | 56054A | 56054-2258 | 2 | ||
| PATTERN,HULL,LH | 56075 | 56075-2831 | 1 | ||
| PATTERN,HULL,RH | 56075A | 56075-2832 | 1 | ||
| PATTERN,SIDE COVER,LH | 56075B | 56075-2833 | 1 | ||
| PATTERN,SIDE COVER,RH | 56075C | 56075-2834 | 1 | ||
| PATTERN,HATCH COVER,LH,UPP | 56075D | 56075-2835 | 1 | ||
| PATTERN,HATCH COVER,LH,LWR | 56075E | 56075-2836 | 1 | ||
| PATTERN,HATCH COVER,RH,UPP | 56075F | 56075-2837 | 1 | ||
| PATTERN,HATCH COVER,RH,LWR | 56075G | 56075-2838 | 1 | ||
| PATTERN,DECK,LH,FR | 56075H | 56075-2839 | 1 | ||
| PATTERN,DECK,LH,RR | 56075I | 56075-2840 | 1 | ||
| PATTERN,DECK,RH,FR | 56075J | 56075-2841 | 1 | ||
| PATTERN,DECK,RH,RR | 56075K | 56075-2842 | 1 |
