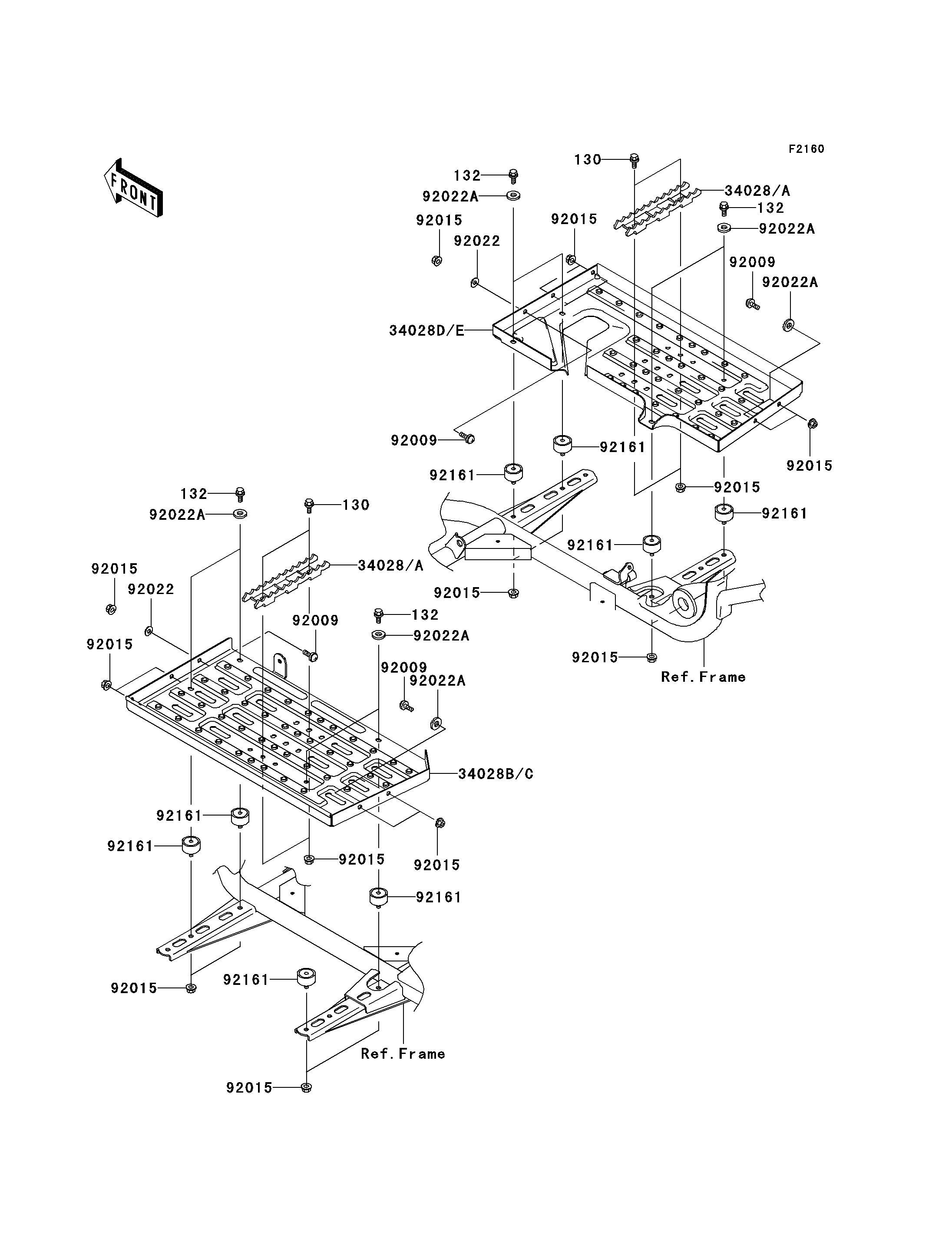

Parts Diagrams |
130
130
132
132
132
132
34028
34028
34028B
34028D
92009
92009
92009
92009
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92022
92022
92022A
92022A
92022A
92022A
92022A
92022A
92161
92161
92161
92161
92161
92161
92161
92161
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,6X14 | 130 | 130J0614 | 4 | ||
BOLT-FLANGED-SMALL,6X10 | 132 | 132J0610 | 8 | ||
STEP,FOOT PEG,S.GOLD | 34028 | 34028-1487-UF | 2 | ||
STEP,LH,S.GOLD | 34028B | 34028-7511-UF | 1 | ||
STEP,RH,S.GOLD | 34028D | 34028-7512-UF | 1 | ||
SCREW,6X16 | 92009 | 92009-1621 | 10 | ||
NUT,FLANGED,6MM | 92015 | 92015-1367 | 22 | ||
WASHER,6.5X16X1.0 | 92022 | 92022-1093 | 2 | ||
WASHER,6.5X20X1.6,BLACK | 92022A | 92022-1346 | 12 | ||
DAMPER,FLOOR BOARD | 92161 | 92161-7505 | 8 |
