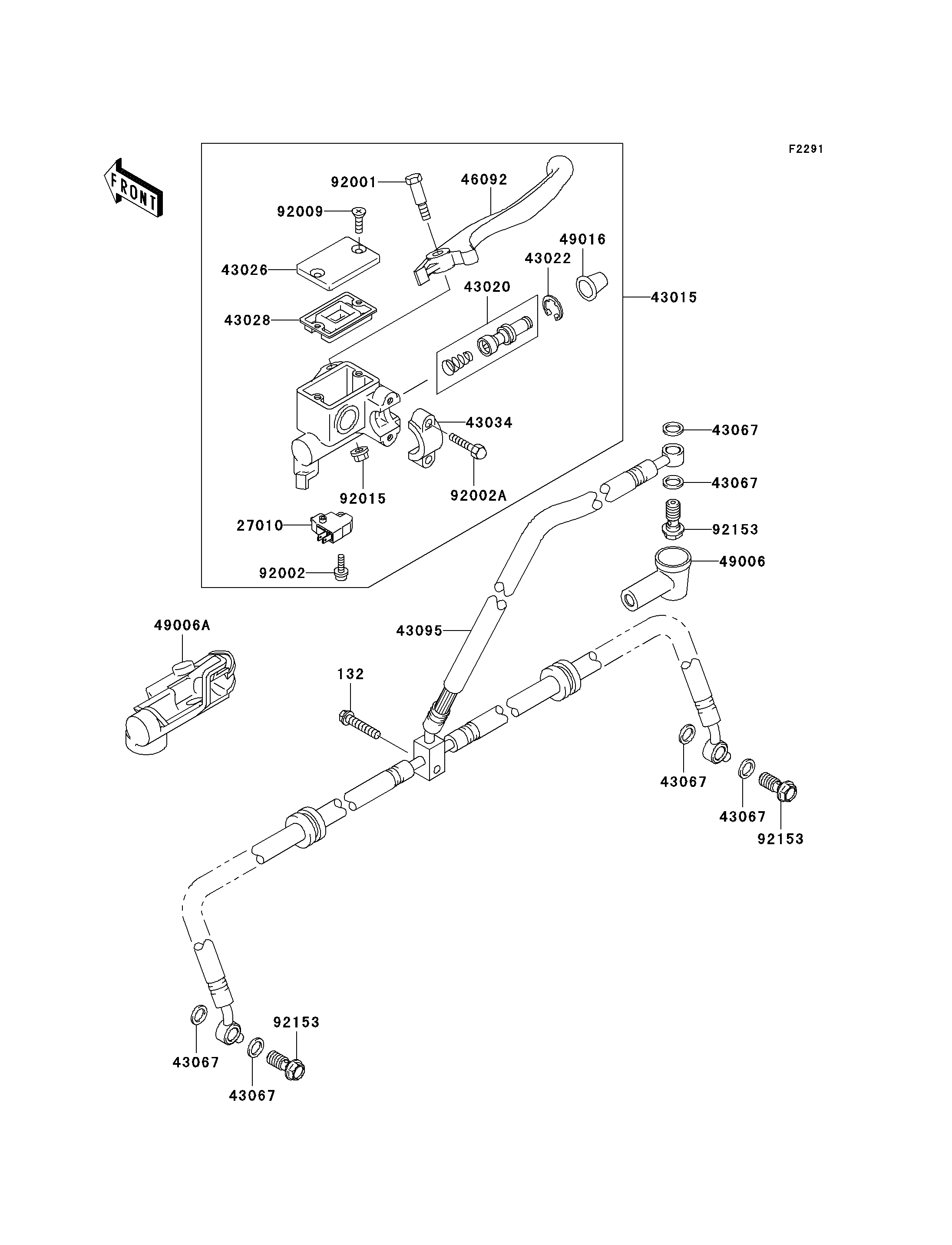

2004 Prairie 360 4X4 - Front Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
132
27010
43015
43020
43022
43026
43028
43034
43067
43067
43067
43067
43067
43067
43095
46092
49006
49006A
49016
92001
92002
92002A
92009
92015
92153
92153
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X30 132 132J0630 1
SWITCH,BRAKE 27010 27010-0025 1
CYLINDER-ASSY-MASTER,FR 43015 43015-1646 1
PISTON-COMP-BRAKE,FR 43020 43020-1056 1
STOPPER-BRAKE,PISTON 43022 43022-1010 1
CAP-BRAKE 43026 43026-1074 1
DIAPHRAGM 43028 43028-1061 1
HOLDER-BRAKE,MASTER CYLINDER 43034 43034-1016 1
WASHER-SEAL,10.5X15X1.5 43067 43067-001 6
HOSE-BRAKE,FR 43095 43095-7501 1
LEVER-GRIP,FRONT BRAKE 46092 46092-1208 1
BOOT,DUST 49006 49006-1040 1
BOOT,RH 49006A 49006-1338 1
COVER-SEAL,MASTER CYLINDER 49016 49016-1044 1
BOLT,FRONT BRAKE LEVER 92001 92001-1728 1
BOLT,SCREW,4X12 92002 92002-1323 1
BOLT 92002A 92002-1894 2
SCREW,4MM 92009 92009-1458 2
NUT,FLANGED,6MM,BLACK 92015 92015-1233 1
BOLT,OIL,L=23 92153 92153-0627 3
