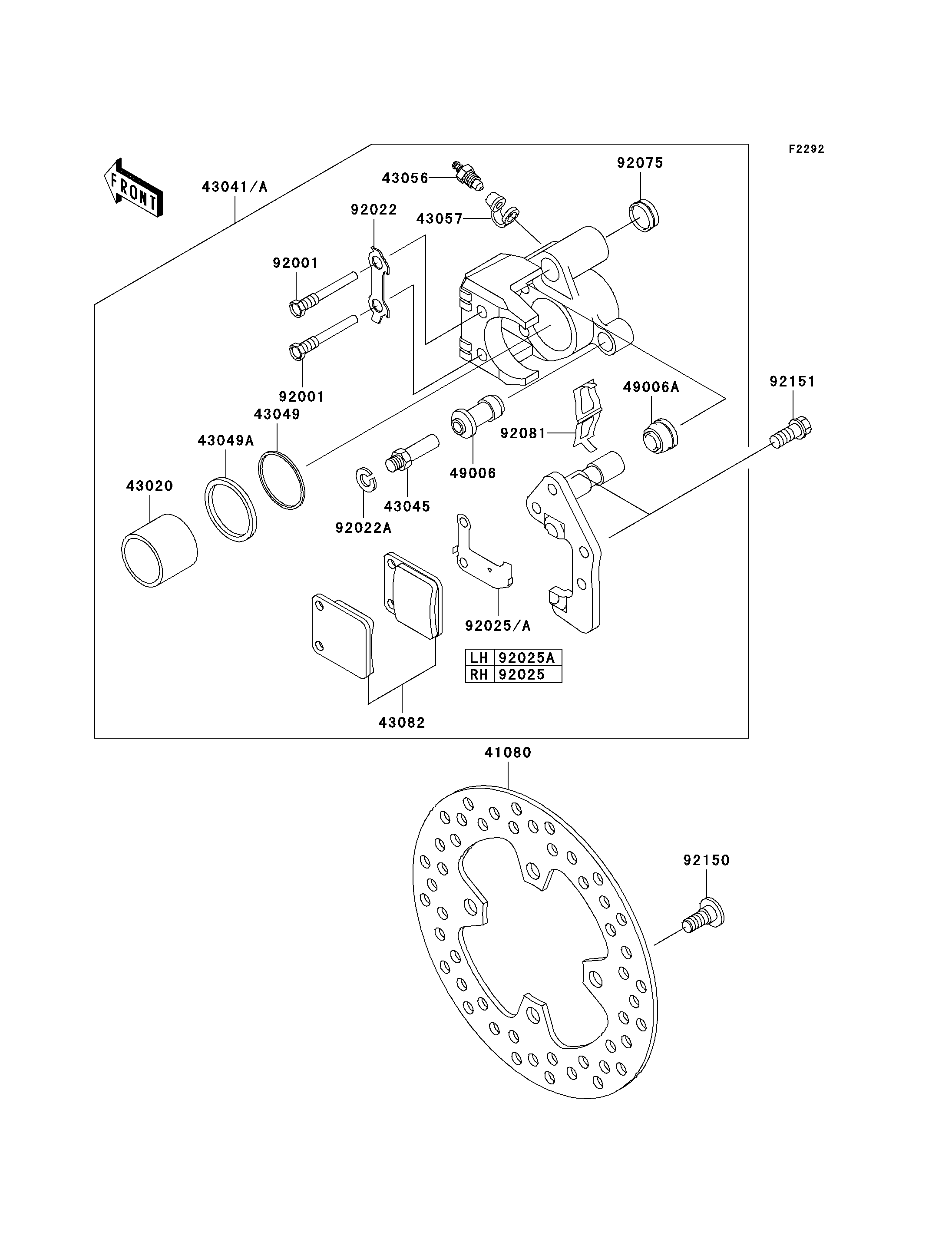

2003 Prairie 360 4X4 - Front Brake(A1)

DOWNLOAD PDF
SELECT A NEW PART
41080
43020
43041
43041A
43045
43049
43049A
43056
43057
43082
49006
49006A
92001
92001
92022
92022A
92025
92025A
92075
92081
92150
92151
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DISC,FR 41080 41080-1513 2
PISTON-COMP-BRAKE 43020 43020-1114 2
CALIPER-ASSY,FR,LH 43041 43041-1816 1
CALIPER-ASSY,FR,RH 43041A 43041-1817 1
SHAFT-CALIPER 43045 43045-1010 2
PACKING 43049 43049-1081 2
PACKING 43049A 43049-1082 2
BREATHER-BRAKE 43056 43056-1055 2
CAP-BREATHER 43057 43057-1001 2
PAD-ASSY-BRAKE 43082 43082-1201 2
BOOT,CALIPER 49006 49006-1088 2
BOOT,CALIPER 49006A 49006-1089 2
BOLT,PAD HOLDER 92001 92001-1723 4
WASHER,LOCK 92022 92022-1372 2
WASHER,WAVE 92022A 92022-1373 2
SHIM,PAD 92025 92025-1344 1
SHIM,PAD 92025A 92025-1817 1
DAMPER 92075 92075-1414 2
SPRING,PAD 92081 92081-1502 2
BOLT,SOCKET,8X20 92150 92150-1800 8
BOLT,FLANGED,8X19 92151 92151-1793 4
