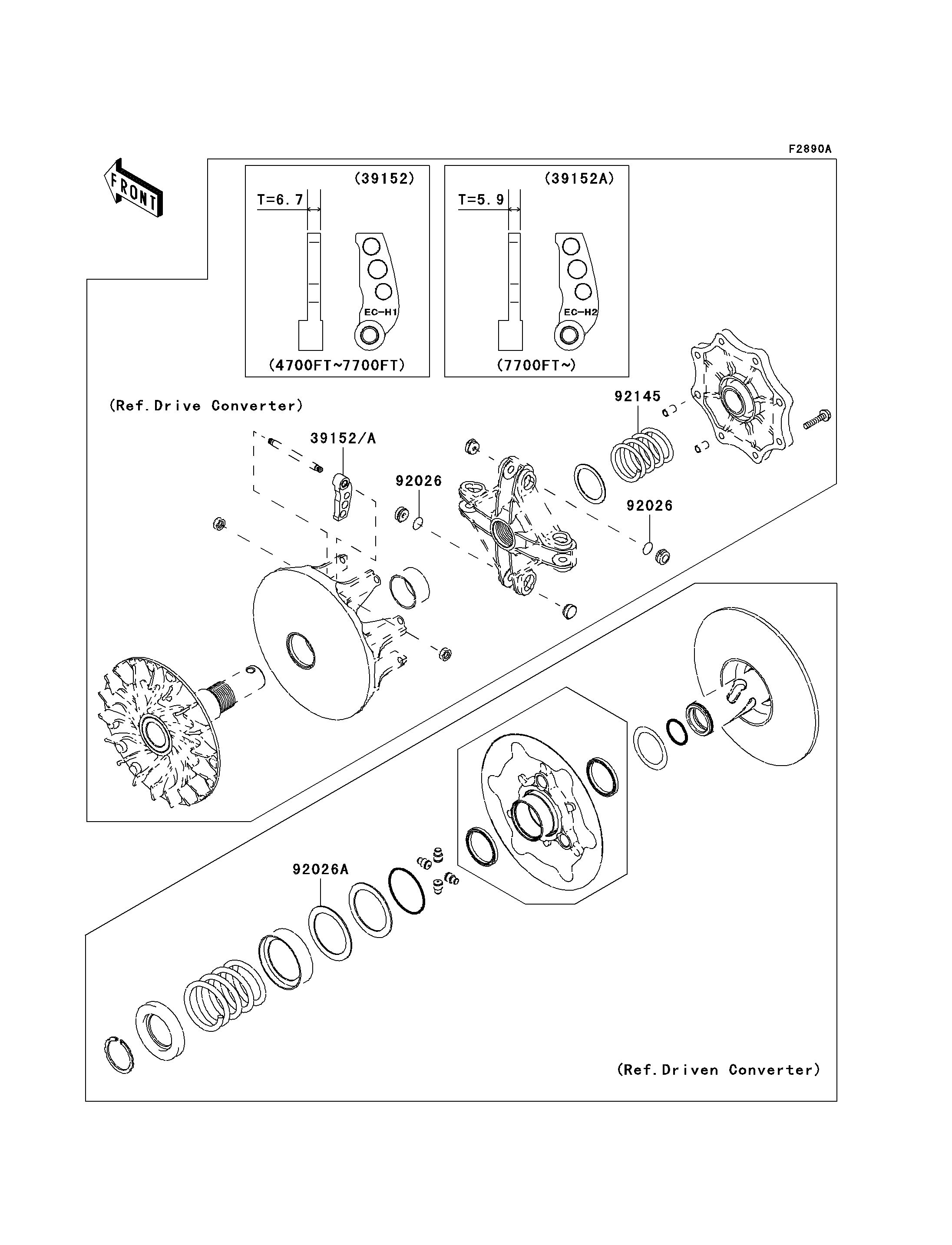

2003 Prairie 360 4X4 - Optional Parts(Converter)

39152
39152A
92026
92026
92026A
92145
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WEIGHT-RAMP,4700-7700FT 39152 39152-1098 4 (OPTION)
WEIGHT-RAMP,7700FT- 39152A 39152-1100 4 (OPTION)
SPACER,T=0.1 92026 92026-0038 2 (OPTION)
SPACER,HIGH ALTITUDE 92026A 92026-1623 AR (OPTION)
SPRING,CONVERTER DRIVE 92145 92145-1187 1 (OPTION)
