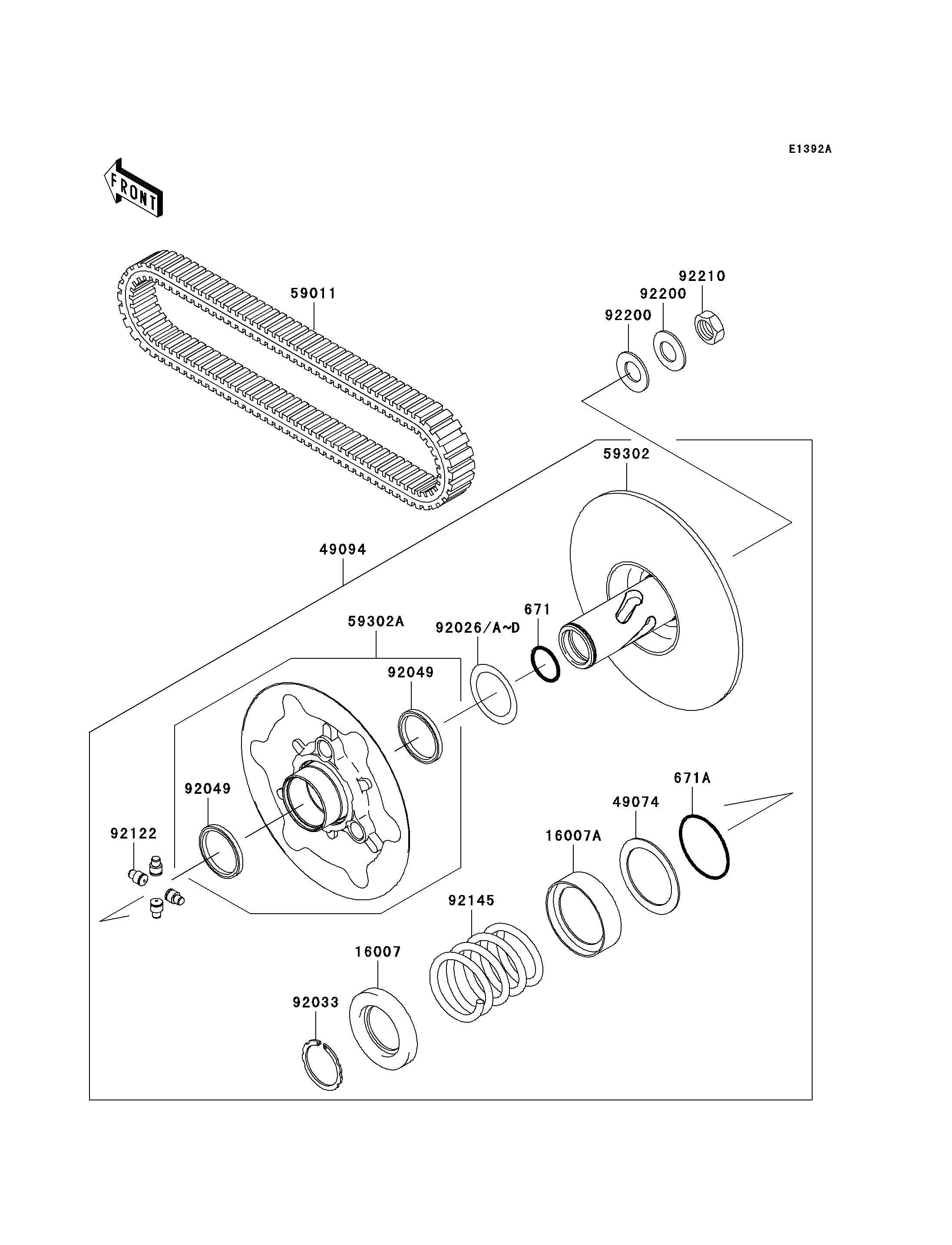

2004 Prairie 360 - Driven Converter(B2)

DOWNLOAD PDF
SELECT A NEW PART
671
671A
16007
16007A
49074
49094
59011
59302
59302A
92026
92026A
92026B
92026C
92026D
92033
92049
92049
92122
92145
92200
92200
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
O RING 671 671D2530 1
O RING 671A 671D2550 1
SEAT-SPRING 16007 16007-1203 1
SEAT-SPRING,SHEAVE MOVABLE 16007A 16007-1221 1
PLATE-THRUST 49074 49074-1055 1
CONVERTER-ASSY-DRIVEN 49094 49094-0019 1
BELT 59011 59011-0003 1
SHEAVE-COMP,FIXED 59302 59302-0001 1
SHEAVE-COMP,MOVABLE 59302A 59302-0002 1
SPACER,T=0.30 92026 92026-0034 AR
SPACER,T=1.00 92026A 92026-1565 AR
SPACER,T=0.60 92026B 92026-1569 AR
SPACER,T=1.40 92026C 92026-1570 AR
SPACER,T=0.80 92026D 92026-1617 AR
RING-SNAP 92033 92033-1317 1
SEAL-OIL 92049 92049-1528 2
ROLLER 92122 92122-1209 4
SPRING,PURPLE 92145 92145-1499 1
WASHER 92200 92200-1505 2
NUT,18MM 92210 92210-1367 1
