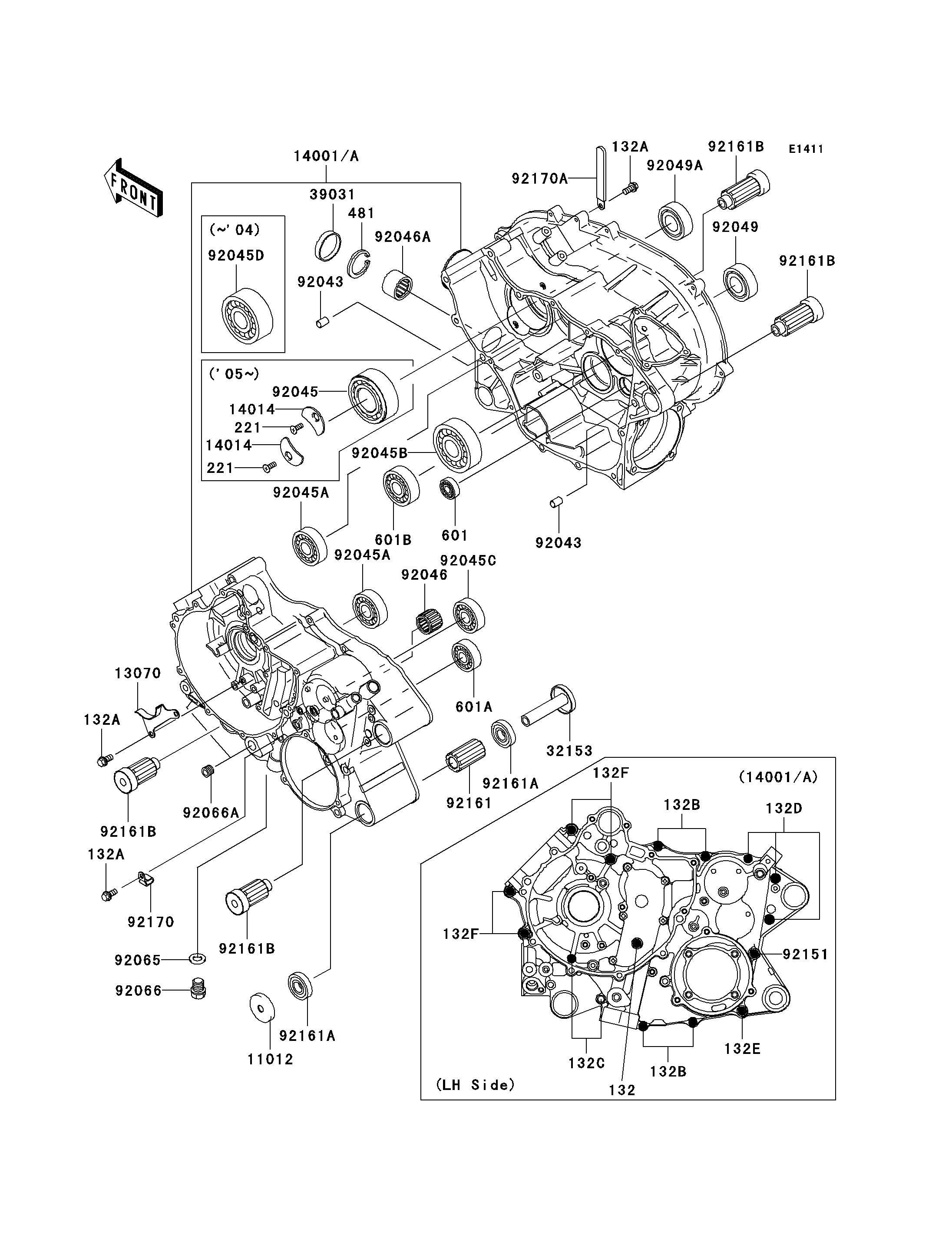

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
132
132A
132A
132A
132B
132B
132C
132D
132E
132F
132F
481
601
601A
601B
11012
13070
14001A
32153
39031
92043
92043
92045A
92045A
92045B
92045C
92045D
92046
92046A
92049
92049A
92065
92066
92066A
92151
92161
92161A
92161A
92161B
92161B
92161B
92161B
92170
92170A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED-SMALL | 132 | 132J0885 | 1 | ||
BOLT-FLANGED-SMALL | 132A | 132Y0612 | 4 | ||
BOLT-FLANGED-SMALL | 132B | 132Y0640 | 4 | ||
BOLT-FLANGED-SMALL | 132C | 132Y0665 | 2 | ||
BOLT-FLANGED-SMALL | 132D | 132Y0685 | 3 | ||
BOLT-FLANGED-SMALL | 132E | 132Y08110 | 1 | ||
BOLT-FLANGED-SMALL | 132F | 132Y0875 | 4 | ||
CIRCLIP-TYPE-C,37MM | 481 | 481J3700 | 1 | ||
BEARING-BALL | 601 | 601A6000 | 1 | ||
BEARING-BALL,#6004 | 601A | 601A6004 | 1 | ||
BEARING-BALL,#6304 | 601B | 601A6304 | 1 | ||
CAP,ENGINE BRACKET | 11012 | 11012-1228 | 1 | ||
GUIDE,CHAIN | 13070 | 13070-1255 | 1 | ||
SET-CRANKCASE | 14001A | 14001-1291 | 1 | ||
PIPE | 32153 | 32153-1873 | 1 | ||
CAP-END | 39031 | 39031-1070 | 1 | ||
PIN | 92043 | 92043-1506 | 2 | ||
BEARING-BALL,TMB304CCM | 92045A | 92045-1142 | 2 | ||
BEARING-BALL,6306SH2 | 92045B | 92045-1190 | 1 | ||
BEARING-BALL | 92045C | 92045-1389 | 1 | ||
BEARING-BALL,5207C4 | 92045D | 92045-1443 | 1 | ||
BEARING-NEEDLE | 92046 | 92046-1143 | 1 | ||
BEARING-NEEDLE | 92046A | 92046-1277 | 1 | ||
SEAL-OIL,TC30458 | 92049 | 92049-1451 | 1 | ||
SEAL-OIL,TC35508 | 92049A | 92049-1452 | 1 | ||
GASKET,12X22X2 | 92065 | 92065-097 | 1 | ||
PLUG,OIL DRAIN,12X15 | 92066 | 92066-1174 | 1 | ||
PLUG,PT3/8X10 | 92066A | 92066-1262 | 2 | ||
BOLT,8MM | 92151 | 92151-1689 | 1 | ||
DAMPER,BACK UNDER,PIPE | 92161 | 92161-1257 | 1 | ||
DAMPER,BACK UNDER | 92161A | 92161-1258 | 2 | ||
DAMPER,L=63.5 | 92161B | 92161-1259 | 4 | ||
CLAMP | 92170 | 92170-1577 | 1 | ||
CLAMP | 92170A | 92170-1925 | 1 |
